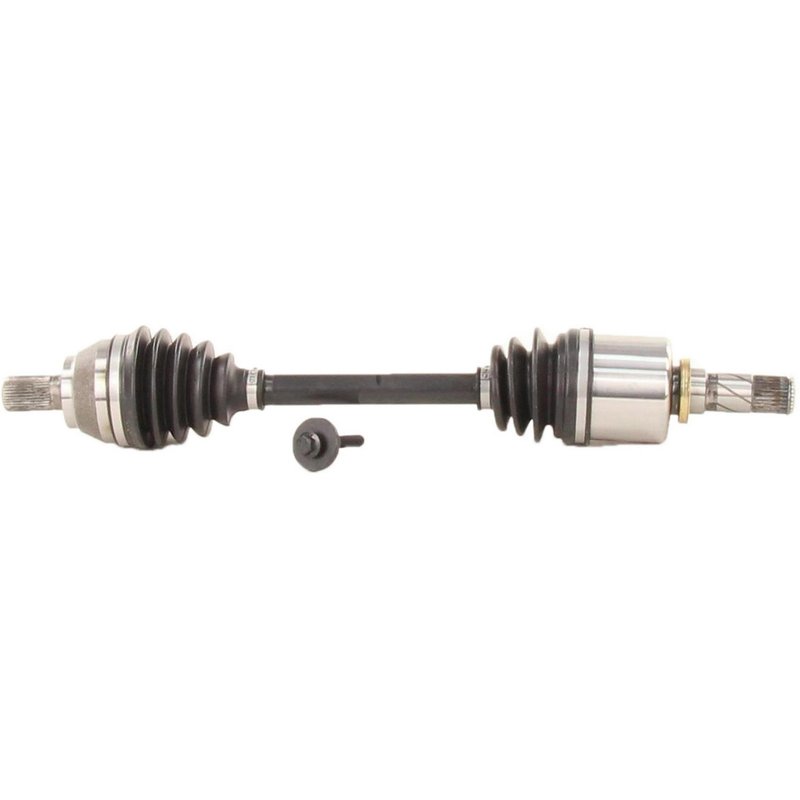

TrakMotive MZ-8144 CV Axle Shaft - Front Left
| Brand | TrakMotive MZ-8144 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 12.8 |
| Axle Bolt Length (mm) | 75 |
| Axle Bolt Thread Size | M10*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 23.11 |
| Overall Compressed Length (mm) | 587 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 4 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps protect the joint from dirt and moisture.
ISO 9001 and TS 16949 certified. Built under recognized quality management standards.
Cross-references Cardone New 66-8164, Cardone New 66-8166 and Cardone Reman 60-8164 for the same application. See all 23.
CV Axle Shaft for Mazda 3 Front Left
TrakMotive MZ-8144 is a new CV axle shaft for the front left position on select 2004-2005 Mazda 3 models. It is built with a neoprene boot, a male inboard connection, and an Audi-style spline bolt outboard joint for the specified application.
Key Features
- Fits 2004 Mazda 3, front left
- Fits 2005 Mazda 3, front left, O.B. joint retained by bolt
- New CV axle shaft from TrakMotive
- Neoprene boot material for the axle assembly
- Male inboard shaft connection style
- Outboard joint uses an Audi-style spline bolt design
- 28 inboard splines and 36 outboard splines
- Overall compressed length: 587 mm (23.11 in)
- Axle bolt thread size: M10 x 1.5
- Axle bolt hex size: 12.8 mm; axle bolt length: 75 mm
Product Details
TrakMotive CV Axle Shaft MZ-8144 is a direct-fit driveline replacement for the front left side of the Mazda 3 in the listed model years. The axle is new, not remanufactured, and uses the specified spline counts and connection styles to match the original driveline layout. TrakMotive positions this CV axle shaft within its CV Axle Shaft product line for driveline and axle service work where accurate fitment and OE-style geometry matter.
This part cross-references Cardone New 66-8164 and 66-8166 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn boot conditions that allow grease loss and contamination
- Driveline noise caused by excessive joint wear
- Front left axle failure on Mazda 3 applications listed above
Installation Notes and Tips
Confirm the front left position, spline count, and axle bolt specifications before installation. The 2005 Mazda 3 listing notes an outboard joint retained by bolt, so verify the existing hub and joint retention style against the vehicle before service. Replace any worn related components found during inspection and torque fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2005 | Mazda | 3 | Manual | 2.3L | L4 | Front Left | O.B. Joint Retained by Bolt; CV Axle Shaft |
| 2005 | Mazda | 3 | Manual | 2.0L | L4 | Front Left | O.B. Joint Retained by Bolt; CV Axle Shaft |
| 2004 | Mazda | 3 | Manual | 2.3L | L4 | Front Left | CV Axle Shaft |
| 2004 | Mazda | 3 | Manual | 2.0L | L4 | Front Left | CV Axle Shaft |
