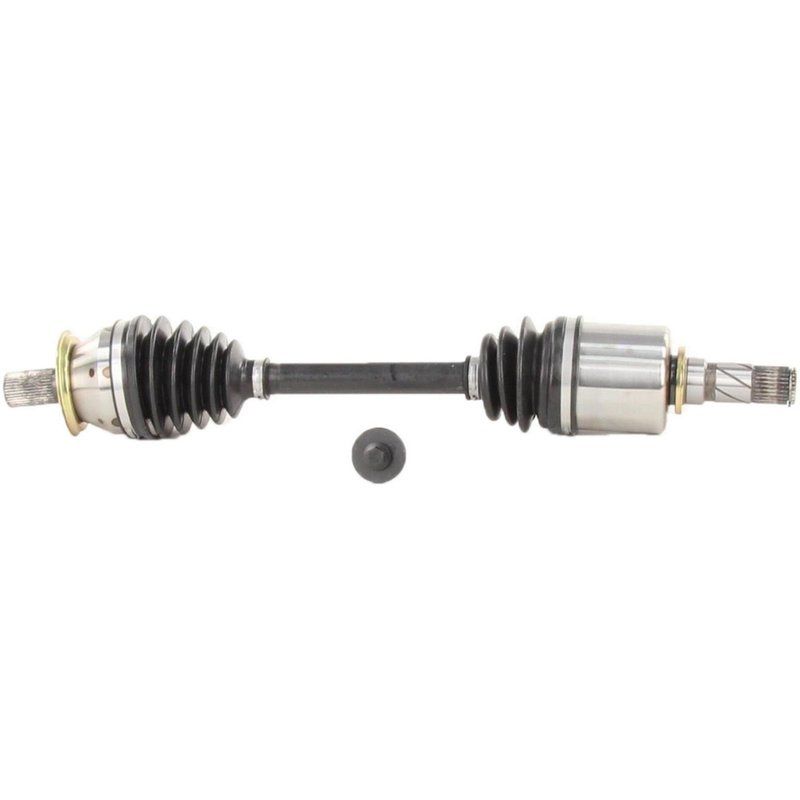

TrakMotive MZ-8146 CV Axle Shaft - Front Left
| Brand | TrakMotive MZ-8146 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Bolt Hex Size (mm) | 12.8 |
| Axle Bolt Length (mm) | 75 |
| Axle Bolt Thread Size | M10*1.5 |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Bolt Holes | 1 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Shaft Bolts | 1 |
| Number Of Outboard Splines | 36 |
| Outboard Joint Type | Audi Style Spline Bolt |
| Outboard Shaft Connection Style | Audi Style Spline Bolt |
| Overall Compressed Length (in) | 22.6 |
| Overall Compressed Length (mm) | 574 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 2 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ISO certified company. Manufactured under ISO 9001 and TS 16949 quality standards.
Cross-references Cardone New 66-8162, Cardone Reman 60-8162 and OSC 98045 for the same application. See all 19.
TrakMotive CV Axle Shaft for Mazda 3
The TrakMotive MZ-8146 CV axle shaft is a new driveline replacement for front left applications on the 2004-2005 Mazda 3. It is built with a neoprene boot, a male inboard connection, and an Audi-style spline bolt outboard joint for the specified fitment.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: MZ-8146
- New, not remanufactured
- Front left position for Mazda 3 applications listed below
- Inboard joint type: male
- Outboard joint type: Audi-style spline bolt
- Boot material: neoprene
- 28 inboard splines and 36 outboard splines
- Overall compressed length: 22.6 in. (574 mm)
- ABS tone ring not included
- Axle nut not included
Product Details
TrakMotive MZ-8146 is a CV axle shaft for driveline and axle service on the Mazda 3 front left side. The axle uses a male inboard shaft connection and an Audi-style spline bolt outboard connection, with a 12.8 mm axle bolt hex size, M10 x 1.5 thread, and 75 mm bolt length. TrakMotive identifies this axle as a direct replacement for 2004 Mazda 3 front left and 2005 Mazda 3 front left applications, including the 2005 model note for O.B. joint retained by bolt. This part cross-references Cardone New 66-8162 and Cardone Reman 60-8162 for the same application.
What This Axle Shaft Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Driveline noise caused by spline or joint wear
- Front left axle replacement needs on Mazda 3 models listed here
Installation Notes and Tips
Confirm the front left position, spline count, and axle bolt specifications before installation. This axle is listed for 2004 Mazda 3 front left and 2005 Mazda 3 front left; the 2005 application notes the outboard joint retained by bolt. Verify whether the vehicle uses ABS-related components before ordering, since the ABS tone ring is not included. Use the correct axle bolt and torque procedures for the vehicle service specification.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for the MZ-8146 axle shaft.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2005 | Mazda | 3 | Automatic | 2.3L | L4 | Front Left | O.B. Joint Retained by Bolt; CV Axle Shaft |
| 2004 | Mazda | 3 | Automatic | 2.3L | L4 | Front Left | CV Axle Shaft |
