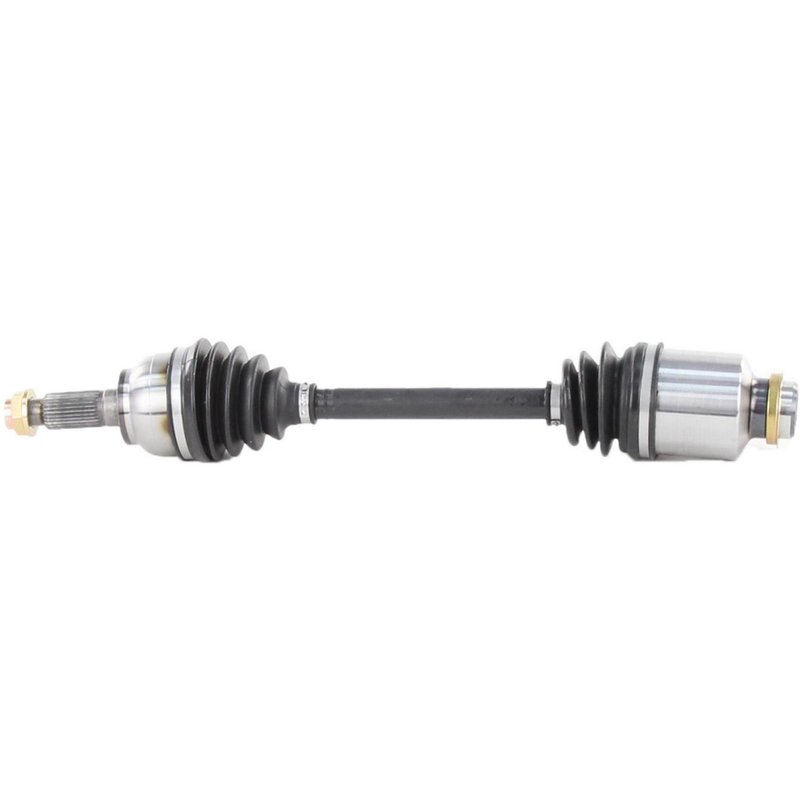

TrakMotive MZ-8155 CV Axle Shaft - Front Right
| Brand | TrakMotive MZ-8155 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2T |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.91 |
| Overall Compressed Length (mm) | 582 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 2 vehicles |
New axle shaft. Built with a neoprene boot and conventional joint design.
Axle nut included. Hex nut with stake locking for secure installation.
ISO certified company. Manufactured by a company certified to ISO 9001 and TS 16949 standards.
Cross-references TrakMotive MZ-8155, 80-3948 and 98263 for the same application. See all 15.
CV Axle Shaft for Mazda 3 Front Right
TrakMotive MZ-8155 is a new CV axle shaft for the front right position on select 2005-2006 Mazda 3 models. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct driveline service on the listed applications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: MZ-8155
- Fits 2005 Mazda 3, front right, O.B. joint retained by nut
- Fits 2006 Mazda 3, front right
- New axle shaft with 28 inboard splines and 28 outboard splines
- Neoprene boot material for driveline protection
- Includes axle nut with M22 x 1.5 thread, 31.8 mm hex size, and stake locking type
- No ABS tone ring included
- Overall compressed length: 22.91 in. (582 mm)
Product Details
The TrakMotive MZ-8155 CV axle shaft is a direct-fit driveline component for the front right side of the Mazda 3 in the listed model years. This axle uses a female inboard shaft connection and a conventional outboard joint, with a compressed length of 22.91 inches to match the specified application. TrakMotive identifies this part as a new replacement axle, and the included axle nut supports installation on the confirmed fitments. This part cross-references Monroe Shocks & Struts 172286 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn or deteriorated axle boot causing grease loss
- Excessive drivetrain play at the front right wheel end
- Axle failure on a 2005-2006 Mazda 3 front right application
Installation Notes and Tips
Verify the front right position, spline count, and axle nut thread size before installation. Confirm whether the vehicle is equipped for the listed non-ABS application, since this axle does not include an ABS tone ring. Use the included axle nut and follow the vehicle service procedure for proper torque and staking.
Quality Assurance
TrakMotive states that this axle shaft is produced by an ISO 9001:1007 and TS 16949:2009 certified company. The MZ-8155 is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Mazda | 3 | Manual | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2005 | Mazda | 3 | Manual | 2.0L | L4 | Front Right | O.B.Joint Retained by Nut; CV Axle Shaft |
