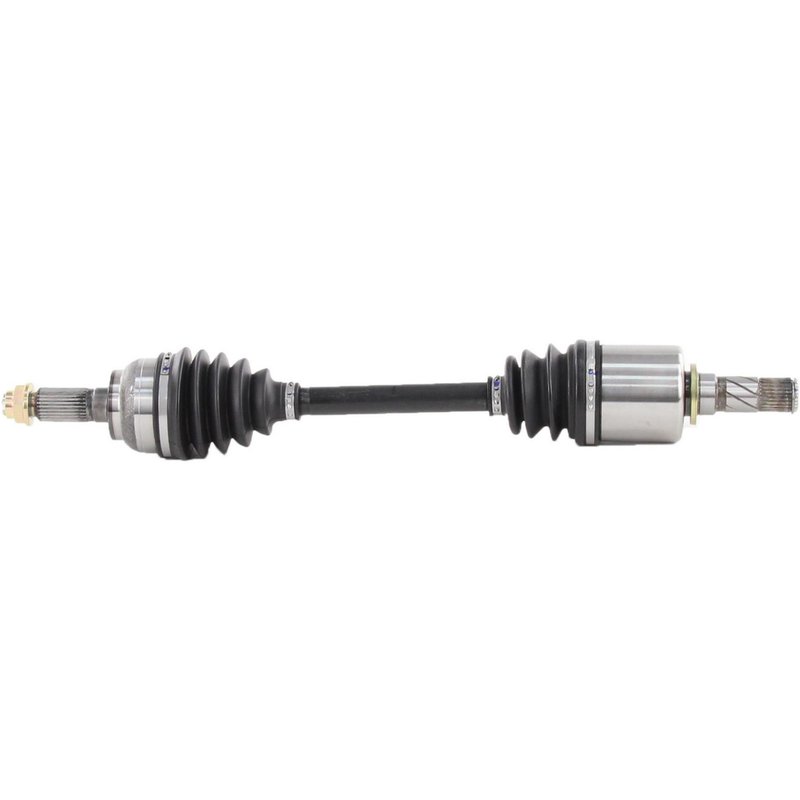

TrakMotive MZ-8158 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MZ-8158

The TrakMotive CV Axle Shaft MZ-8158 is designed specifically for Mazda 3 and Mazda 5 models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining smooth vehicle operation.

• Compatible with Mazda 3 and Mazda 5 vehicles
• Includes axle nut with stake locking type for secure fitment
• Neoprene boot material for enhanced durability and protection
• Overall compressed length of 24.69 inches (627 mm)
• 28 splines on both inboard and outboard joints for precise engagement
• Hex head axle nut measuring 1 1/4 inches (31.8 mm) across flats
• New, not remanufactured, ensuring original quality standards

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components tailored for specific vehicle applications. This line emphasizes quality materials such as neoprene boots and precise spline counts to match OEM specifications. The MZ-8158 part exemplifies this approach by offering a new axle shaft with a stake-type locking axle nut and conventional joint styles, ensuring compatibility and durability for Mazda driveline systems.

Technical Description and Specifications

The MZ-8158 CV axle shaft features a male inboard joint and a conventional outboard joint, both equipped with 28 splines to ensure a secure connection to the transmission and wheel hub. The axle nut included is a hex head type with a 1 1/4 inch (31.8 mm) hex size, 4/5 inch (20 mm) height, and a length of 1 1/3 inches (34.4 mm). It uses a stake locking mechanism and has an M22x1.5 thread size for reliable fastening. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The overall compressed length of 24.69 inches (627 mm) matches OEM dimensions for proper fitment in compatible Mazda models.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mazda 3 and Mazda 5
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leakage by restoring boot integrity
• Addresses axle nut loosening with included stake locking nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MZ-8158, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the neoprene boot is seated correctly to avoid contamination. The male inboard joint and conventional outboard joint should align precisely with the transmission and hub splines. It is recommended to inspect related suspension and driveline components during installation for overall system integrity.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component manufactured to meet OEM standards for fit and function. The included axle nut features a stake locking design to enhance safety and reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance in Mazda 3 and Mazda 5 applications.
