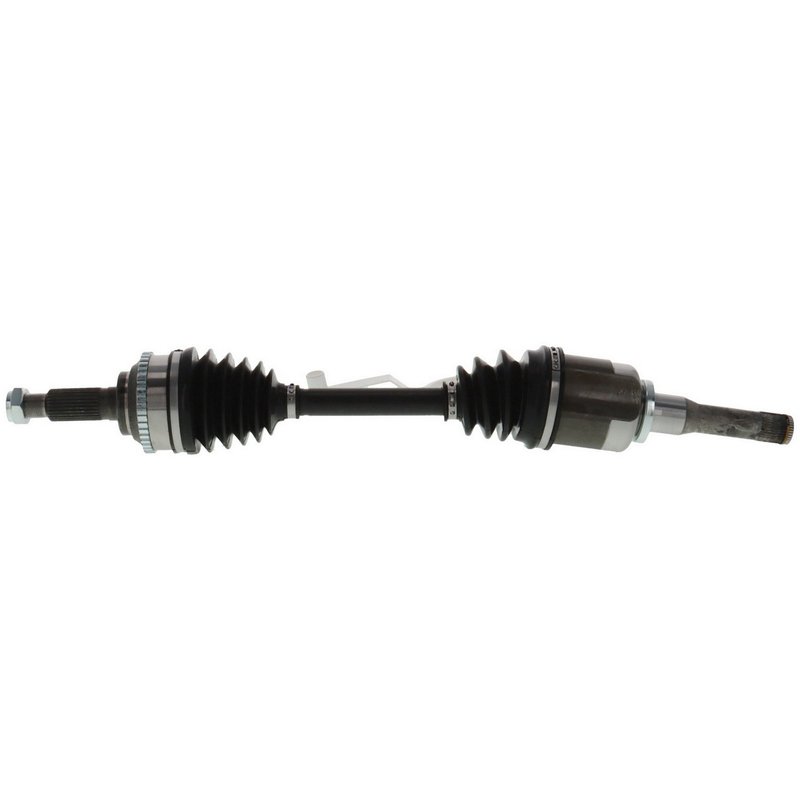

TrakMotive MZ-8166 CV Axle Shaft - Front Left
| Brand | TrakMotive MZ-8166 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.79 |
| Overall Compressed Length (mm) | 655 |
| Product line | CV Axle Shaft |
| Fits | Ford, Mazda, and Mercury · 18 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable joint protection.
ABS tone ring included. Toothed ring is built in for applications that use ABS sensing.
Axle nut included. Self-locking hex nut is supplied for a more complete install.
Cross-references Cardone New 66-2249, Edelmann 92130 and TrakMotive MZ-8166 for the same application. See all 19.
CV Axle Shaft for Ford Escape, Mazda Tribute, Mercury Mariner
Restore driveline performance with this TrakMotive CV Axle Shaft, part number MZ-8166. It is built for front left applications on select 2009-2012 Ford Escape, 2009-2011 Mazda Tribute, and 2009-2011 Mercury Mariner models, with fitment matched to the listed spline counts, ABS tone ring, and axle hardware specifications.
Key Features
- TrakMotive CV Axle Shaft, part number MZ-8166
- Front left position for listed Ford, Mazda, and Mercury applications
- New axle assembly with neoprene boot material
- Inboard joint type: male; outboard joint type: conventional
- ABS tone ring included with 44-tooth toothed ring
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, and self-locking design
- Overall compressed length: 25.79 in. (655 mm)
- 35 inboard splines and 28 outboard splines
Product Details
The TrakMotive CV axle shaft MZ-8166 is a direct-fit driveline replacement for front left service on 2009-2012 Ford Escape, 2009-2011 Mazda Tribute, and 2009-2011 Mercury Mariner models. It is configured with a male inboard shaft connection, conventional outboard connection, and a neoprene boot to support consistent CV joint operation. The included ABS tone ring and 44-tooth toothed ring help match the vehicle’s wheel speed sensing setup where equipped.
TrakMotive positions this CV axle shaft line as a new replacement component backed by ISO 9001:1007 and TS 16949:2009 certified manufacturing practices. This part cross-references Cardone New 66-2249 and Edelmann 92130 for the same application.
What It Helps Address
- Clicking or popping noises during turns from worn CV joints
- Vibration or shudder during acceleration from a damaged axle shaft
- Grease leakage caused by a torn or deteriorated boot
- ABS warning concerns related to a worn or incorrect tone ring setup
- Driveline looseness from spline or joint wear
Installation Notes and Tips
Verify front left fitment, spline count, and axle nut specifications before installation. Confirm the ABS tone ring configuration matches the vehicle’s original setup, especially on applications where ABS equipment varies. Inspect the hub, seals, and surrounding suspension components during replacement to help ensure proper axle seating and smooth operation.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and supports it with a limited lifetime warranty. Manufacturing is backed by ISO 9001:1007 and TS 16949:2009 certified company standards.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2012 | Ford | Escape | — | Automatic | 3.0L | V6 | — | Front Left | CV Axle Shaft |
| 2012 | Ford | Escape | — | Automatic | 2.5L | L4 | — | Front Left | CV Axle Shaft |
| 2011 | Ford | Escape | — | Automatic | 3.0L | V6 | — | Front Left | CV Axle Shaft |
| 2011 | Ford | Escape | — | Automatic | 2.5L | L4 | — | Front Left | CV Axle Shaft |
| 2011 | Mazda | Tribute | — | Automatic | — | — | — | Front Left | CV Axle Shaft |
| 2011 | Mercury | Mariner | — | Automatic | 3.0L | V6 | — | Front Left | CV Axle Shaft |
| 2011 | Mercury | Mariner | — | Automatic | 2.5L | L4 | — | Front Left | CV Axle Shaft |
| 2010 | Ford | Escape | — | Automatic | 3.0L | V6 | — | Front Left | CV Axle Shaft |
| 2010 | Ford | Escape | — | Automatic | 2.5L | L4 | — | Front Left | CV Axle Shaft |
| 2010 | Mazda | Tribute | — | Automatic | — | — | — | Front Left | CV Axle Shaft |
| 2010 | Mercury | Mariner | — | Automatic | 3.0L | V6 | — | Front Left | CV Axle Shaft |
| 2010 | Mercury | Mariner | — | Automatic | 2.5L | L4 | — | Front Left | CV Axle Shaft |
| 2009 | Ford | Escape | — | Automatic | 3.0L | V6 | — | Front Left | CV Axle Shaft |
| 2009 | Ford | Escape | — | Automatic | 2.5L | L4 | — | Front Left | CV Axle Shaft |
| 2009 | Mazda | Tribute | 4WD | Automatic | 3.0L | V6 | — | Front Left | CV Axle Shaft |
| 2009 | Mazda | Tribute | — | Automatic | 2.5L | L4 | GAS | Front Left | CV Axle Shaft |
| 2009 | Mercury | Mariner | — | Automatic | 3.0L | V6 | — | Front Left | CV Axle Shaft |
| 2009 | Mercury | Mariner | — | Automatic | 2.5L | L4 | — | Front Left | CV Axle Shaft |
