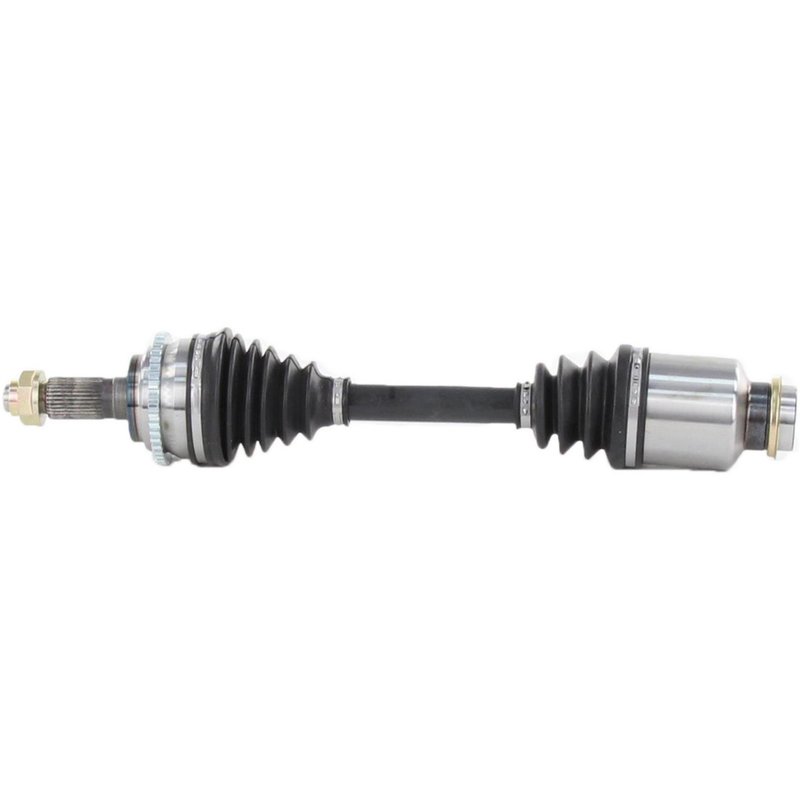

TrakMotive MZ-8168 CV Axle Shaft - Front Right

Reliable CV Axle Shaft for Mazda 6 Vehicles

The TrakMotive CV Axle Shaft MZ-8168 is engineered to meet the specific driveline needs of Mazda 6 models. Designed with precision, this new CV axle shaft ensures consistent performance and durability for your vehicle's front-wheel drive system.

• Compatible with Mazda 6 models requiring a 44-tooth ABS ring
• Includes a toothed ABS tone ring for accurate wheel speed sensor readings
• Equipped with a neoprene boot for enhanced protection against contaminants
• Features a female inboard joint and conventional outboard joint for secure shaft connections
• Comes with a hex head axle nut (M24*1.5 thread size) with stake locking for reliable fastening
• Overall compressed length of 21.85 inches (555 mm) for precise fitment

About the TrakMotive CV Axle Shaft Product Line

The TrakMotive CV Axle Shaft line focuses on delivering dependable CV components tailored to specific vehicle applications. This product line emphasizes quality materials and accurate specifications, such as spline counts and boot materials, to ensure compatibility and longevity. The MZ-8168 model exemplifies this approach by matching the exact requirements of Mazda 6 driveline systems.

Detailed Product Features and Specifications

The MZ-8168 CV axle shaft includes a 44-tooth ABS ring with a toothed design, which is essential for proper ABS sensor function. The included ABS tone ring supports accurate wheel speed monitoring. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. The inboard joint uses a female connection style with 31-2t splines, while the outboard joint is conventional with 31 splines, ensuring a secure and precise fit. The axle nut is a hex head type, measuring 1 2/5 inches (35.6 mm) across flats, with a length of 1 1/2 inches (37.53 mm) and a height of 1 inch (23 mm). It features a stake locking mechanism to maintain secure attachment during operation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mazda 6 vehicles
• Restores proper ABS sensor function by providing the correct ABS tone ring
• Eliminates vibrations or noises caused by failing CV joints
• Prevents grease leaks and contamination with durable neoprene boots
• Ensures secure wheel attachment with included stake-lock axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MZ-8168, verify compatibility with your specific Mazda 6 model year and drivetrain configuration. Use appropriate tools to torque the hex head axle nut to manufacturer specifications, ensuring the stake locking feature is properly engaged. Inspect the neoprene boot for any damage during installation to maintain joint protection. Proper alignment of the inboard and outboard joints is critical for smooth operation.

Quality Assurance and Warranty Information

This CV axle shaft is a new, not remanufactured, component designed to meet OEM standards for fit and function. TrakMotive products undergo quality control to ensure durability and performance. Please refer to the manufacturer or distributor for specific warranty details related to the MZ-8168 part number.
