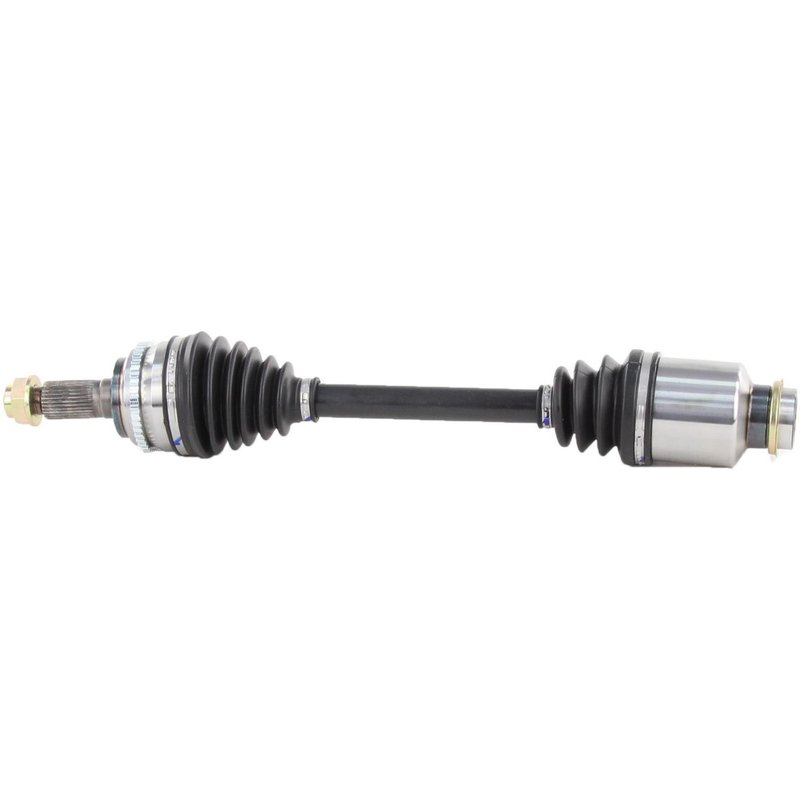

TrakMotive MZ-8170 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MZ-8170

The TrakMotive CV Axle Shaft MZ-8170 is engineered for reliable driveline performance in Mazda CX-9 vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front axle assembly.

• Compatible with Mazda CX-9 models
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced joint protection
• Hex head axle nut included with stake locking type
• Overall compressed length of 24.09 inches (612 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality constant velocity components designed to meet OEM specifications. This line emphasizes durability and precise engineering, featuring components such as ABS tone rings and neoprene boots to maintain optimal driveline function and safety. The MZ-8170 is part of this line, providing a direct replacement for the Mazda CX-9 with attention to critical attributes like spline counts and locking axle nuts.

Technical Specifications and Features

This CV axle shaft features a female inboard joint type with 31-2t splines and a conventional outboard joint with 31 splines, ensuring proper connection and torque transfer. The included ABS tone ring has 44 teeth and a toothed ring type, which supports accurate wheel speed sensor readings. The axle nut is a hex head type, measuring 1 2/5 inches (35.6 mm) across flats, with a height of 1 inch (23 mm) and a length of 1 1/2 inches (37.53 mm). It uses an M24x1.5 thread size and a stake locking mechanism to secure the assembly firmly.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mazda CX-9
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure axle nut fastening to avoid loosening issues

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MZ-8170, verify compatibility with your Mazda CX-9 model year. Use proper torque specifications for the M24x1.5 axle nut and ensure the stake locking method is correctly applied to prevent loosening. Inspect the neoprene boot for any damage during installation to maintain joint protection. It is recommended to replace axle nuts with the included new hardware to ensure secure fitment.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8170 is a new, remanufactured-free component designed to meet or exceed OEM standards. It includes an ABS tone ring and high-quality neoprene boot for long-lasting performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment for Mazda CX-9 vehicles.
