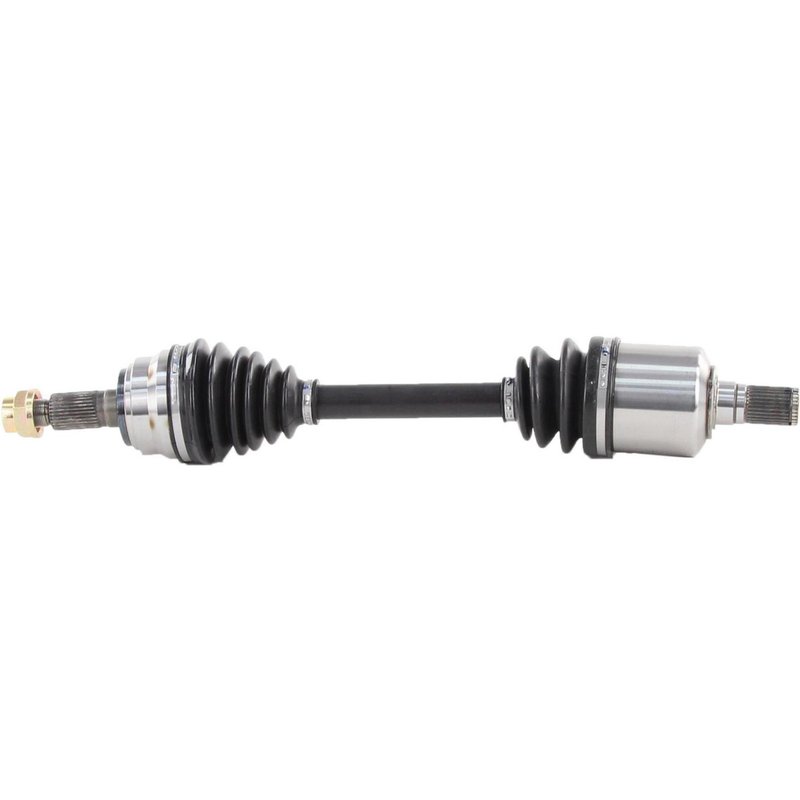

TrakMotive MZ-8176 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MZ-8176 for Mazda 6

The TrakMotive CV Axle Shaft MZ-8176 is engineered specifically for Mazda 6 models, providing reliable driveline performance. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front-wheel drive system.

• Compatible with Mazda 6 vehicles
• New CV axle shaft with no ABS tone ring included
• Hex head axle nut included with self-locking feature
• Neoprene boot material for durability and protection
• Inboard and outboard joint types designed for precise fit
• Overall compressed length of 24.29 inches (617 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality driveline components tailored to specific vehicle applications. This line includes shafts designed with attention to joint types, spline counts, and boot materials to ensure compatibility and longevity. The MZ-8176 model exemplifies this approach by matching the exact specifications required for the Mazda 6, including the correct spline counts and connection styles.

Technical Specifications and Features

This CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, helping to maintain joint integrity. The inboard joint is a male type with 31 splines, while the outboard joint is conventional with a spline connection style, also featuring 31 splines. The included axle nut is a hex head type, measuring 1 3/7 inches (36 mm) across the flats, with a height of 1 1/9 inches (28 mm) and a length of 1 5/8 inches (41.5 mm). It uses an M24*1.5 thread size and incorporates a self-locking mechanism to ensure secure installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mazda 6
• Eliminates clicking or popping noises during turns caused by joint wear
• Restores smooth power transfer to front wheels
• Prevents grease leaks by replacing torn or cracked boots
• Addresses vibration issues related to axle shaft imbalance or damage

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MZ-8176, ensure the axle nut is torqued to the manufacturer’s specifications to maintain the self-locking feature. Verify that the splines on both the inboard and outboard joints align properly with the transmission and wheel hub. Inspect the neoprene boot for any damage during installation to prevent premature failure. It is recommended to replace the axle nut included with the shaft to ensure secure fitment.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8176 is a new, OEM-quality replacement part designed to meet or exceed original equipment standards. While specific warranty details are not provided here, TrakMotive products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Always consult the product documentation or manufacturer for exact warranty terms.
