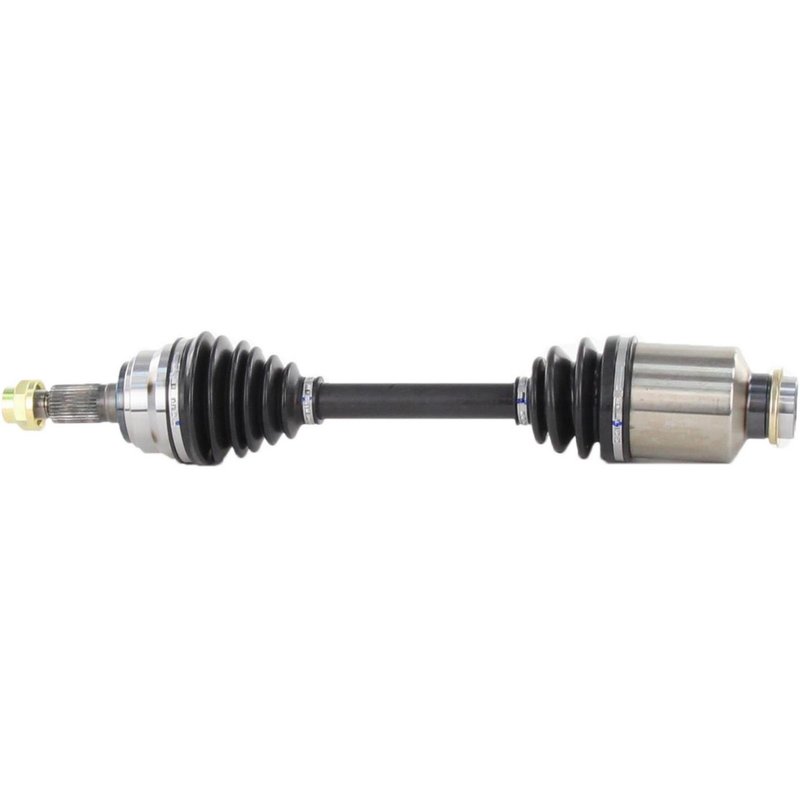

TrakMotive MZ-8177 CV Axle Shaft - Front Right
| Brand | TrakMotive MZ-8177 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 1/9 |
| Axle Nut Height (mm) | 28 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31-2T |
| Number Of Outboard Splines | 31 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.07 |
| Overall Compressed Length (mm) | 586 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 5 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Comes with a self-locking hex nut for easier installation.
Cross-references Cardone New 66-8196, Monroe Shocks & Struts 71327 and TrakMotive MZ-8177 for the same application. See all 8.
Front Right CV Axle Shaft for Mazda 6
TrakMotive MZ-8177 is a new CV axle shaft for the front right position on select 2009-2013 Mazda 6 models. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct driveline service on the specified application.
Key Features
- Fits 2009-2013 Mazda 6, front right
- New CV axle shaft for driveline and axle repair
- Neoprene boot material for joint protection
- Female inboard shaft connection style
- Conventional outboard joint with spline connection
- Includes axle nut with self-locking design
- 36 mm axle nut hex size and M24 x 1.5 thread
- Overall compressed length: 23.07 in. (586 mm)
- TrakMotive part number MZ-8177
Product Details
TrakMotive CV Axle Shaft MZ-8177 is engineered for the front right side of the Mazda 6 across the 2009, 2010, 2011, 2012, and 2013 model years. The axle uses a female inboard joint and a spline-style outboard shaft connection, with 31 outboard splines and 31-2T inboard splines. The included axle nut features a hex head, self-locking design, and M24 x 1.5 thread size. TrakMotive identifies this axle as a new component and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts 71327 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn front right CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Clunking or looseness in the driveline
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
Verify front right fitment by matching the vehicle year, model, and axle dimensions before installation. Confirm the axle nut thread size, hex size, and compressed length against the original part. Inspect the hub, seals, and surrounding suspension components during replacement to help prevent repeat driveline noise or leakage.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also states that ABS axles fit non-ABS applications unless otherwise noted, and that its production is supported by ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | Mazda | 6 | 3.7L | V6 | Front Right | CV Axle Shaft |
| 2012 | Mazda | 6 | 3.7L | V6 | Front Right | CV Axle Shaft |
| 2011 | Mazda | 6 | 3.7L | V6 | Front Right | CV Axle Shaft |
| 2010 | Mazda | 6 | 3.7L | V6 | Front Right | CV Axle Shaft |
| 2009 | Mazda | 6 | 3.7L | V6 | Front Right | CV Axle Shaft |
