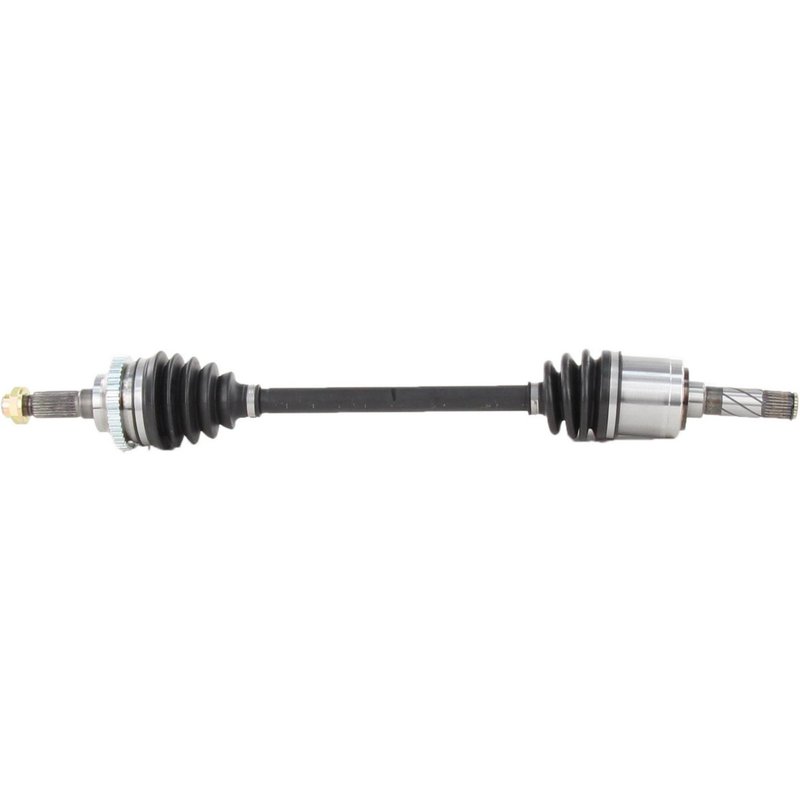

TrakMotive MZ-8178 CV Axle Shaft - Rear Left or Rear Right
Overview of TrakMotive CV Axle Shaft MZ-8178 for Mazda Miata
The TrakMotive CV Axle Shaft MZ-8178 is engineered specifically for Mazda Miata models, providing reliable driveline performance. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front axle assembly.
- Compatible with Mazda Miata vehicles
- Includes a neoprene boot for enhanced durability
- Equipped with a 44-tooth ABS ring and included tone ring
- Features a hex head axle nut with stake locking type
- Overall compressed length of 29.53 inches (750 mm)
TrakMotive CV Axle Shaft Product Line Details
The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet OEM specifications. This line emphasizes precise engineering, including correct spline counts and joint types, to ensure compatibility and performance. The MZ-8178 model is part of this line, offering a balance of durability and fitment accuracy for Mazda Miata driveline repairs.
Technical Specifications and Features
This CV axle shaft features a male inboard joint type and a conventional outboard joint type, both with 26 splines, ensuring proper connection to the transmission and wheel hub. The included ABS ring is toothed with 44 teeth and comes with a tone ring, supporting the vehicle's anti-lock braking system. The axle nut is a hex type, measuring 1 1/4 inches (31.8 mm) across the flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses an M22x1.5 thread size and a stake locking mechanism to secure the assembly.
Common Applications and Problem Solving
- Replacement for worn or damaged CV axle shafts on Mazda Miata
- Restores proper ABS sensor function with included tone ring
- Eliminates axle vibration or clicking noises during turns
- Addresses grease boot tears or leaks with durable neoprene boot
- Resolves axle nut loosening issues with stake locking design
Installation Notes and Tips
When installing the TrakMotive CV Axle Shaft MZ-8178, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain ABS sensor accuracy. The neoprene boot should be inspected for proper sealing to avoid contamination. This part is designed for direct replacement on compatible Mazda Miata models, facilitating straightforward installation.
Quality Assurance and Warranty
The TrakMotive CV Axle Shaft MZ-8178 is a new, remanufactured-quality component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and fitment.
| Brand | TrakMotive |
| Part Number | MZ-8178 |
| Position | CV Axle Shaft, Rear Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 29.53 |
| Overall Compressed Length (mm) | 750 |
This part fits 20 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Mazda | Miata | Rear Right | w/ ABS; MX-5; CV Axle Shaft |
| 2005 | Mazda | Miata | Rear Left | w/ ABS; MX-5; CV Axle Shaft |
| 2004 | Mazda | Miata | Rear Right | w/ ABS; MX-5; CV Axle Shaft |
| 2004 | Mazda | Miata | Rear Left | w/ ABS; MX-5; CV Axle Shaft |
| 2003 | Mazda | Miata | Rear Right | w/ ABS; MX-5; CV Axle Shaft |
| 2003 | Mazda | Miata | Rear Left | w/ ABS; MX-5; CV Axle Shaft |
| 2002 | Mazda | Miata | Rear Right | w/ ABS; MX-5; CV Axle Shaft |
| 2002 | Mazda | Miata | Rear Left | w/ ABS; MX-5; CV Axle Shaft |
| 2001 | Mazda | Miata | Rear Right | w/ ABS; MX-5; CV Axle Shaft |
| 2001 | Mazda | Miata | Rear Left | w/ ABS; MX-5; CV Axle Shaft |
| 2000 | Mazda | Miata | Rear Right | w/ ABS; MX-5; CV Axle Shaft |
| 2000 | Mazda | Miata | Rear Left | w/ ABS; MX-5; CV Axle Shaft |
| 1999 | Mazda | Miata | Rear Right | w/ ABS; MX-5; CV Axle Shaft |
| 1999 | Mazda | Miata | Rear Left | w/ ABS; MX-5; CV Axle Shaft |
| 1997 | Mazda | Miata | Rear Right | MX-5; From VIN 614193; CV Axle Shaft |
| 1997 | Mazda | Miata | Rear Left | MX-5; From VIN 614193; CV Axle Shaft |
| 1996 | Mazda | Miata | Rear Right | MX-5; From VIN 614193; CV Axle Shaft |
| 1996 | Mazda | Miata | Rear Left | MX-5; From VIN 614193; CV Axle Shaft |
| 1995 | Mazda | Miata | Rear Right | MX-5; From VIN 614193; CV Axle Shaft |
| 1995 | Mazda | Miata | Rear Left | MX-5; From VIN 614193; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
