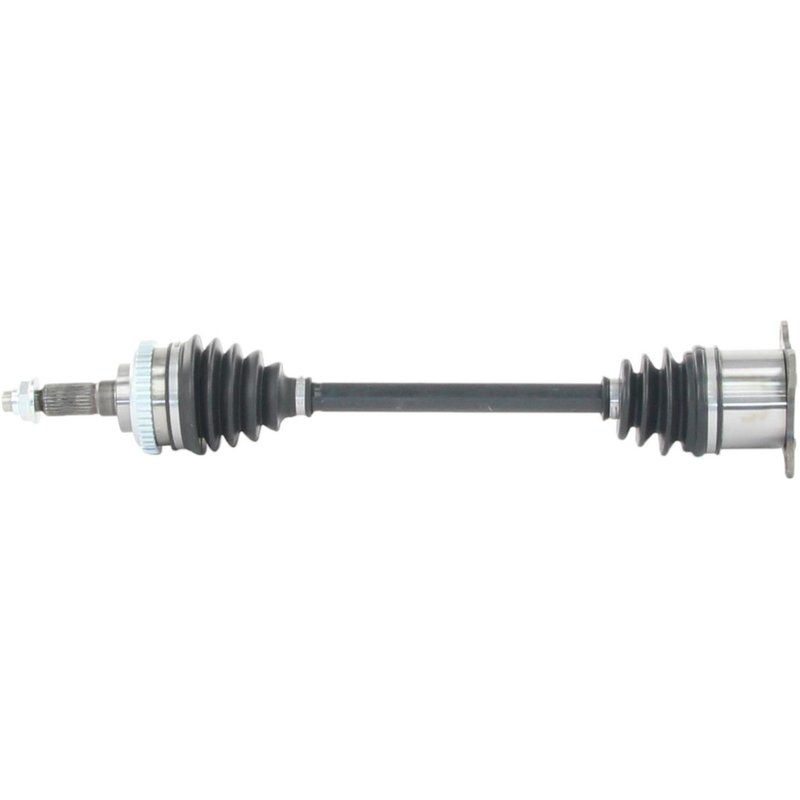

TrakMotive MZ-8180 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive MZ-8180 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1 1/7 |
| Axle Nut Hex Size (mm) | 29 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 2/7 |
| Axle Nut Length (mm) | 33 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Flange |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.49 |
| Overall Compressed Length (mm) | 622 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 4 vehicles |
OE-style replacement. New CV axle shaft with flange and conventional connections for straightforward installation.
ABS-ready design. Includes a toothed tone ring with 44 teeth for integrated wheel speed sensing.
Neoprene boot. Durable boot material helps protect the joint from road debris and moisture.
Cross-references Cardone Reman 60-8038, TrakMotive MZ-8180 and 249180 for the same application. See all 12.
TrakMotive CV Axle Shaft for Mazda Miata
Restore driveline performance with this TrakMotive CV Axle Shaft, part number MZ-8180. It is a new rear axle assembly for 1994-1995 Mazda Miata MX-5 applications, including rear right and rear left positions through VIN 614192.
Key Features
- New CV axle shaft for rear driveline service
- Fits 1994-1995 Mazda Miata, rear right and rear left
- Overall compressed length: 24.49 in. (622 mm)
- 26 outboard splines for the listed application
- Flange-style inboard joint and conventional outboard joint
- Neoprene boot material for axle boot durability
- ABS tone ring included with 44-tooth toothed ring
- Axle nut included: M20 x 1.5, hex head, stake lock type
Product Details
TrakMotive MZ-8180 is a CV axle shaft built for the rear of the Mazda Miata MX-5 platform. The axle uses a flange connection at the inboard side and a conventional outboard shaft connection, with a 26-spline outboard end and a 24.49-inch compressed length. The included ABS tone ring and 44-tooth toothed ring support applications that require wheel speed signal compatibility, while the neoprene boot helps protect the joint assembly from road contamination.
This part cross-references Cardone Reman 60-8038 for the same application. TrakMotive MZ-8180 is listed for 1994-1995 Mazda Miata rear right and rear left positions, through VIN 614192.
Common Replacement Uses
- Clicking or popping from the rear axle area during turns
- Vibration or shudder under acceleration
- Grease leakage from a damaged CV boot
- Excessive play or wear in the rear driveline
- ABS-related wheel speed signal issues on equipped vehicles
Installation Notes
Verify rear right or rear left position, VIN break, spline count, and axle length before installation. Confirm axle nut thread size, hex size, and locking style match the vehicle specification. Inspect the hub, flange, and surrounding seals for wear before installing the new axle shaft.
Quality Assurance
TrakMotive identifies this axle shaft as a new component and backs it with a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Mazda | Miata | Rear Right | MX-5; Thru VIN 614192; CV Axle Shaft |
| 1995 | Mazda | Miata | Rear Left | MX-5; Thru VIN 614192; CV Axle Shaft |
| 1994 | Mazda | Miata | Rear Right | MX-5; Thru VIN 614192; CV Axle Shaft |
| 1994 | Mazda | Miata | Rear Left | MX-5; Thru VIN 614192; CV Axle Shaft |
