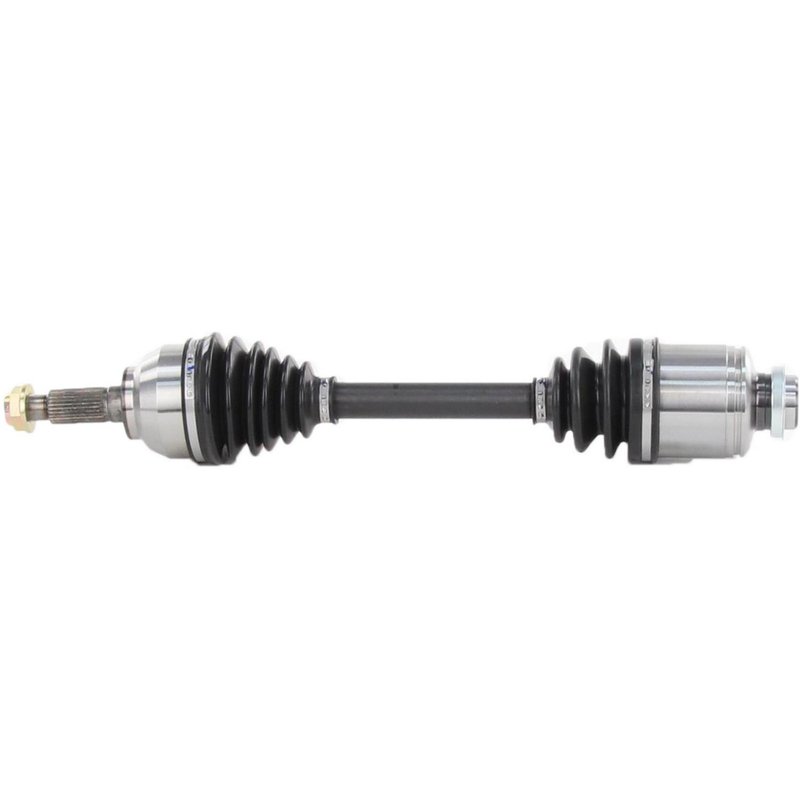

TrakMotive MZ-8188 CV Axle Shaft - Front Right
| Brand | TrakMotive MZ-8188 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.19 |
| Overall Compressed Length (mm) | 589 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 4 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot material. Helps resist cracking and wear over time.
Axle nut included. Self-locking hardware is ready for installation.
Cross-references TrakMotive MZ-8188, 60-8189 and 249188 for the same application. See all 9.
CV Axle Shaft for Mazda 3 Front Right
TrakMotive MZ-8188 is a new CV axle shaft for the front right position on select 2010-2013 Mazda 3 models. It is built with a neoprene boot, a female inboard connection, and a conventional outboard joint for direct driveline service on the specified application.
Key Features
- Fits 2010-2013 Mazda 3, front right
- New CV axle shaft for driveline repair
- Neoprene boot material for joint protection
- Female inboard shaft connection style
- Conventional outboard joint type
- Includes axle nut with self-lock design
- Axle nut thread size: M22 x 1.5
- Overall compressed length: 23.19 in. (589 mm)
- TrakMotive part number MZ-8188
Detailed Description
TrakMotive MZ-8188 is a CV axle shaft engineered for the front right side of the 2010-2013 Mazda 3. The axle uses a female inboard joint and a conventional outboard joint, with 28 outboard splines and 28-2 inboard splines for the listed application. The included axle nut features a hex head, self-lock design, and M22 x 1.5 thread size. This part cross-references Monroe Shocks & Struts 172286 for the same application.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, and MZ-8188 follows that approach with application-specific dimensions and joint configuration. The axle is supplied new and uses a neoprene boot to help protect the CV joint assembly during normal operation. ABS tone ring is not included.
What It Helps Repair
- Clicking or popping from a worn front right CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Axle noise caused by spline or joint wear
- Driveline issues on a 2010-2013 Mazda 3 front right application
Installation Notes and Tips
Verify spline count, axle length, and axle nut thread size before installation. Confirm the vehicle is equipped for the listed front right application on the 2010-2013 Mazda 3. Replace the axle nut during service if required by the repair procedure, and inspect the hub, seals, and surrounding suspension components for wear before reassembly.
Quality Assurance
TrakMotive lists this axle shaft as a new replacement part and notes ISO 9001:1007 and TS 16949:2009 certification. The manufacturer also backs the part with a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Mazda | 3 | Manual | 2.3L | L4 | Front Right | CV Axle Shaft |
| 2012 | Mazda | 3 | Manual | 2.3L | L4 | Front Right | CV Axle Shaft |
| 2011 | Mazda | 3 | Manual | 2.3L | L4 | Front Right | CV Axle Shaft |
| 2010 | Mazda | 3 | Manual | 2.3L | L4 | Front Right | CV Axle Shaft |
