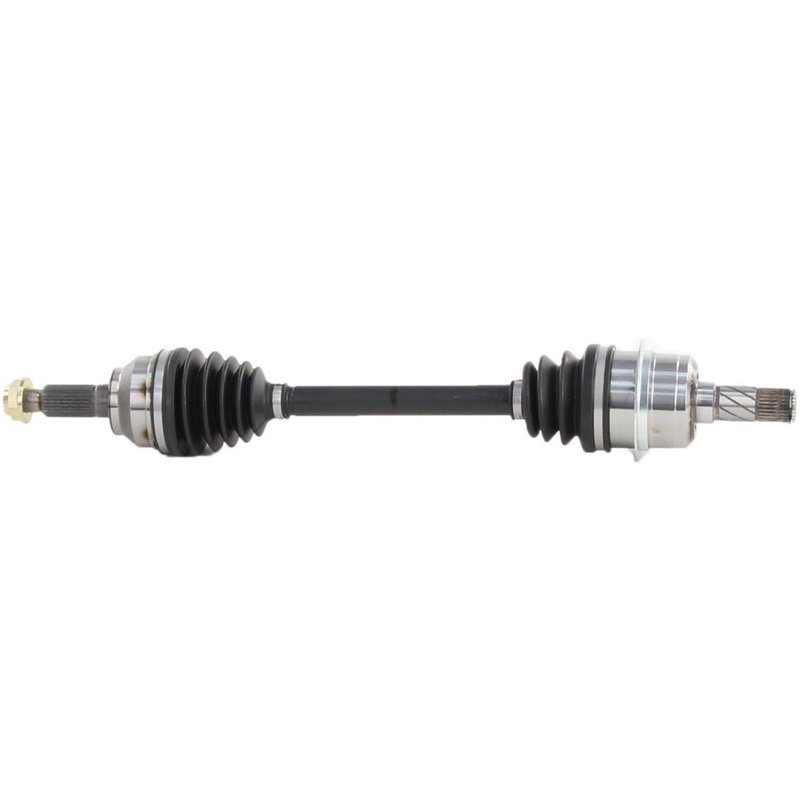

TrakMotive MZ-8189 CV Axle Shaft - Front Left
| Brand | TrakMotive MZ-8189 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.39 |
| Overall Compressed Length (mm) | 645 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 4 vehicles |
New CV axle shaft. Built with neoprene boot material for dependable driveline protection.
Self-lock axle nut. Included for a secure, straightforward installation.
ISO certified company. Manufactured under ISO 9001 and TS 16949 quality standards.
Cross-references Cardone New 66-2300, TrakMotive MZ-8189 and 249189 for the same application. See all 6.
TrakMotive MZ-8189 CV Axle Shaft for Mazda 5
The TrakMotive MZ-8189 CV axle shaft is a new front left driveline replacement for 2012-2015 Mazda 5 models. Built with a neoprene boot, 28 inboard splines, and 28 outboard splines, it is specified for a direct-fit repair on the front left side.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: MZ-8189
- New axle shaft assembly
- Fits 2012-2015 Mazda 5, front left
- Male inboard shaft connection with conventional outboard joint
- Neoprene boot material for driveline protection
- Includes axle nut with self-lock design
- ABS tone ring not included
- Overall compressed length: 25.39 in. (645 mm)
Product Details
TrakMotive CV Axle Shaft MZ-8189 is built for Mazda 5 front left applications from 2012 through 2015. It features a male inboard joint, conventional outboard joint, and matching 28-spline connections at both ends for proper drivetrain engagement. The included axle nut uses an M22 x 1.5 thread, hex head, and self-lock design. TrakMotive identifies this axle as a new replacement part and notes that ABS axles fit non-ABS applications unless otherwise noted.
This part cross-references Cardone New 66-2300 for the same application. If you are searching for a Mazda 5 front left CV axle shaft replacement, MZ-8189 is the direct-fit part number to reference.
Common Repair Uses
- Restores a worn or noisy front left CV axle on a Mazda 5
- Replaces a damaged boot or contaminated axle assembly
- Addresses clicking or vibration during turns and acceleration
- Corrects driveline play caused by spline or joint wear
- Supports repair after axle seal or joint failure
Installation Notes
Verify front left fitment before installation and confirm spline count, axle length, and axle nut thread size against the original part. The axle nut is included, and the axle uses a hex head with self-locking design. Because this axle does not include an ABS tone ring, confirm the vehicle’s ABS configuration before ordering. Professional installation is recommended for proper torque, hub engagement, and suspension alignment checks.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:1007 and TS 16949:2009 certified company, supporting consistent manufacturing control for drivetrain replacement parts.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Mazda | 5 | Automatic | Front Left | CV Axle Shaft |
| 2014 | Mazda | 5 | Automatic | Front Left | CV Axle Shaft |
| 2013 | Mazda | 5 | Automatic | Front Left | CV Axle Shaft |
| 2012 | Mazda | 5 | Automatic | Front Left | CV Axle Shaft |
