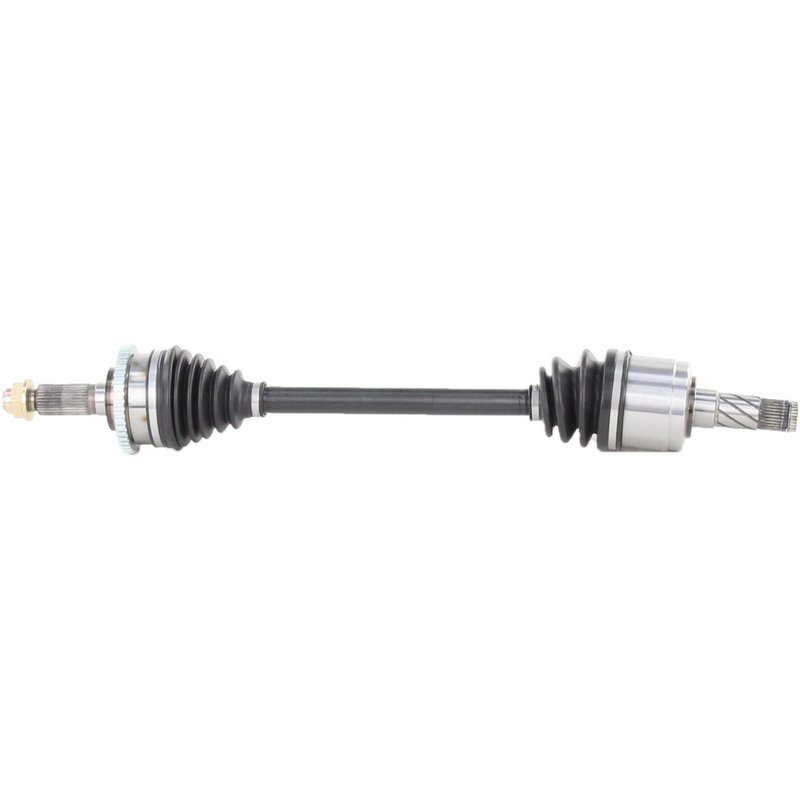

TrakMotive MZ-8194 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive MZ-8194 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 30.18 |
| Overall Compressed Length (mm) | 766.5 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 6 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Supports vehicles with ABS-equipped applications.
Cross-references TrakMotive MZ-8194, 60-8035 and 249194 for the same application. See all 6.
CV Axle Shaft for Mazda RX-7
TrakMotive MZ-8194 is a new CV axle shaft for the rear of select 1993-1995 Mazda RX-7 applications. It is built with a neoprene boot, a toothed ABS tone ring, and included axle nut details for a direct-fit driveline service part.
Key Features
- Fits 1993-1995 Mazda RX-7, rear right
- Fits 1993-1995 Mazda RX-7, rear left
- New CV axle shaft for driveline and axle repair
- 30 inboard splines and 31 outboard splines
- Male inboard joint with conventional outboard joint
- Neoprene boot material for axle boot service durability
- ABS tone ring included with 44-tooth toothed ring
- Axle nut included, M24 x 1.5 thread, stake locking type
- Overall compressed length: 30.18 in (766.5 mm)
Detailed Description
TrakMotive MZ-8194 is a CV axle shaft for Mazda RX-7 rear axle service, covering both rear right and rear left positions for 1993-1995 models. This axle is configured with a male inboard shaft connection, a conventional outboard connection, and a 30.18-inch compressed length to match the specified application. The included ABS tone ring uses a 44-tooth toothed design, and the axle nut is supplied with M24 x 1.5 threads, a hex head, and stake-style locking.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, and MZ-8194 follows that approach with application-specific spline counts, joint styles, and ABS hardware details. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Repair
- Clicking or popping from a worn CV joint
- Vibration during acceleration from a damaged axle shaft
- ABS warning concerns related to a failed tone ring
- Boot cracking or grease loss at the axle assembly
- Driveline noise from spline or joint wear
Installation Notes and Tips
Verify rear right or rear left fitment against the vehicle’s original axle configuration before installation. Confirm spline counts, compressed length, and axle nut thread size match the removed part. ABS axles fit non-ABS applications unless otherwise noted, so compare the original ABS setup and tone ring requirements before service.
Quality Assurance
TrakMotive MZ-8194 is a new replacement axle shaft from an ISO 9001:1007 and TS 16949:2009 certified company. It is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1995 | Mazda | RX-7 | Rear Right | CV Axle Shaft |
| 1995 | Mazda | RX-7 | Rear Left | CV Axle Shaft |
| 1994 | Mazda | RX-7 | Rear Right | CV Axle Shaft |
| 1994 | Mazda | RX-7 | Rear Left | CV Axle Shaft |
| 1993 | Mazda | RX-7 | Rear Right | CV Axle Shaft |
| 1993 | Mazda | RX-7 | Rear Left | CV Axle Shaft |
