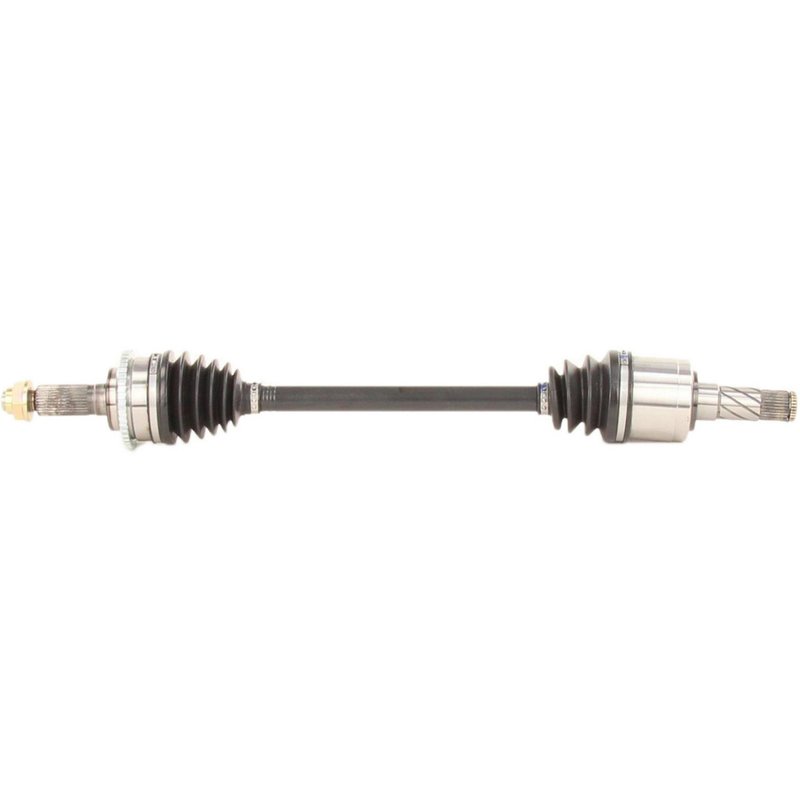

TrakMotive MZ-8206 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft MZ-8206 for Mazda RX-8

The TrakMotive CV Axle Shaft MZ-8206 is engineered specifically for the Mazda RX-8, providing reliable driveline performance. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for your vehicle's front-wheel drive system.

• Compatible with Mazda RX-8 models
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced durability
• Stake locking axle nut with hex head included
• Overall compressed length of 30.24 inches (768 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precision-engineered constant velocity components designed to restore driveline integrity. This CV axle shaft model MZ-8206 features a conventional outboard joint and a male inboard joint connection style, ensuring compatibility and smooth power transfer for the Mazda RX-8. The inclusion of a neoprene boot and a toothed ABS ring tone enhances longevity and sensor compatibility.

Technical Specifications and Features

This CV axle shaft includes a 44-tooth ABS ring designed for accurate wheel speed sensor readings. The axle nut is a stake locking type with a hex head measuring 1 2/5 inches (35.6 mm) across flats and a length of 1 1/2 inches (37.53 mm), thread size M24*1.5, ensuring secure installation. The neoprene boot material provides resistance to wear and environmental factors. The inboard joint uses a male connection style with 26 splines, while the outboard joint is conventional with 28 splines, matching the Mazda RX-8's driveline requirements. The overall compressed length of 30.24 inches (768 mm) fits the vehicle's axle housing precisely.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mazda RX-8
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included stake locking axle nut

Installation Notes and Tips

Ensure the axle nut is torqued to manufacturer specifications using the included hex head nut. Verify the ABS tone ring is properly aligned with the wheel speed sensor to maintain accurate readings. Inspect the neoprene boot for any damage during installation to prevent premature failure. The male inboard joint and spline connections should be lubricated and seated fully to avoid driveline issues.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8206 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes the axle nut and ABS tone ring for a complete replacement solution. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance.
