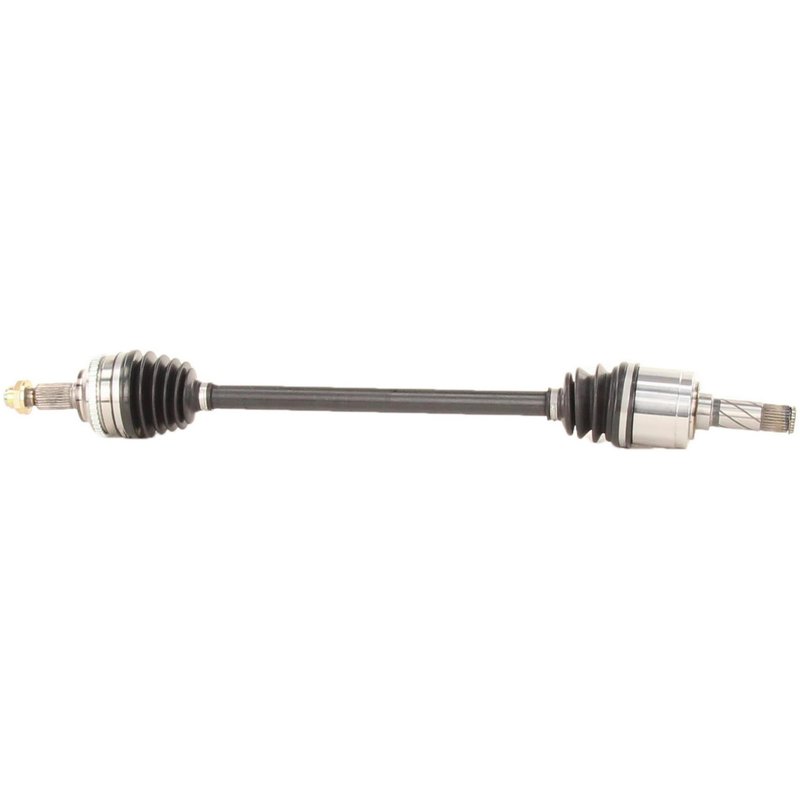

TrakMotive MZ-8208 CV Axle Shaft - Rear Right
| Brand | TrakMotive MZ-8208 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 31.42 |
| Overall Compressed Length (mm) | 798 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 10 vehicles |
New CV axle shaft. Direct replacement for a worn driveline component.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Supports ABS-equipped applications when specified.
Cross-references TrakMotive MZ-8208, 60-8202 and 40732101 for the same application. See all 7.
TrakMotive CV Axle Shaft for Mazda MX-5 Miata
The TrakMotive MZ-8208 CV axle shaft is a new rear right driveline replacement for select 2006-2015 Mazda MX-5 Miata models. Built with a neoprene boot, 28 inboard splines, 28 outboard splines, and an included axle nut, it supports a direct-fit repair for worn or damaged rear axle assemblies.
Key Features
- Fits 2006-2015 Mazda MX-5 Miata, rear right
- New CV axle shaft for driveline and axle service
- 28 inboard splines and 28 outboard splines
- Neoprene boot material for CV joint protection
- Includes axle nut with M22 x 1.5 thread size
- ABS tone ring included with 44-tooth toothed ring
- Overall compressed length: 31.42 in. (798 mm)
- TrakMotive MZ-8208 cross-references OE-style applications
Product Details
TrakMotive MZ-8208 is a CV axle shaft for the rear right position on the Mazda MX-5 Miata. The axle uses a male inboard shaft connection, a spline-style outboard shaft connection, and a conventional outboard joint type. It also includes an ABS tone ring with a 44-tooth toothed design, making it a direct replacement choice for vehicles that use ABS-equipped axle hardware. This part cross-references Monroe Shocks & Struts 172286 and 182286 for the same application.
Common Repair Applications
- Clicking or popping from the rear axle area during turns
- Vibration or shudder from a worn CV joint
- Torn boot or grease loss at the axle shaft
- ABS-related axle replacement on the rear right side
- Driveline noise caused by spline or joint wear
Installation Notes and Tips
Verify rear right fitment against the vehicle’s axle configuration before installation. Confirm axle nut thread size, spline count, and ABS tone ring requirements match the original part. Inspect related seals, hub components, and mounting points during service to help complete the repair correctly on the Mazda MX-5 Miata.
Quality Assurance
TrakMotive manufactures this axle shaft as a new replacement part from an ISO 9001:1007 and TS 16949:2009 certified company. The MZ-8208 is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Mazda | MX-5 Miata | Rear Right | CV Axle Shaft |
| 2014 | Mazda | MX-5 Miata | Rear Right | CV Axle Shaft |
| 2013 | Mazda | MX-5 Miata | Rear Right | CV Axle Shaft |
| 2012 | Mazda | MX-5 Miata | Rear Right | CV Axle Shaft |
| 2011 | Mazda | MX-5 Miata | Rear Right | CV Axle Shaft |
| 2010 | Mazda | MX-5 Miata | Rear Right | CV Axle Shaft |
| 2009 | Mazda | MX-5 Miata | Rear Right | CV Axle Shaft |
| 2008 | Mazda | MX-5 Miata | Rear Right | CV Axle Shaft |
| 2007 | Mazda | MX-5 Miata | Rear Right | CV Axle Shaft |
| 2006 | Mazda | MX-5 Miata | Rear Right | CV Axle Shaft |
