OE Quality
60-Day Returns

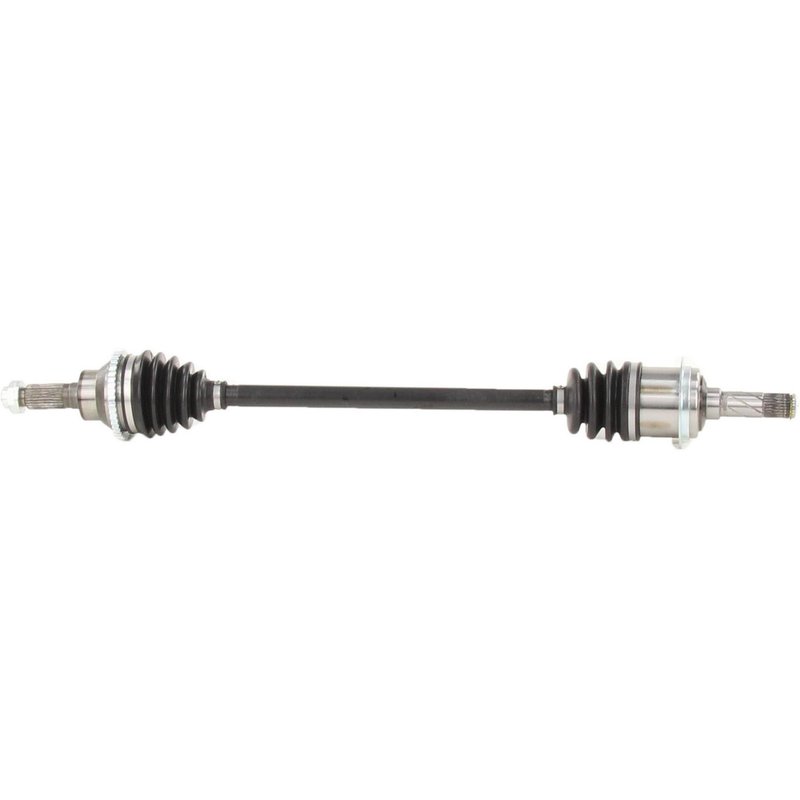

TrakMotive MZ-8210 CV Axle Shaft - Rear Left
Overview of TrakMotive CV Axle Shaft MZ-8210 for Mazda CX-7
The TrakMotive CV Axle Shaft MZ-8210 is engineered specifically for the Mazda CX-7, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.
- Compatible with Mazda CX-7 models
- Includes ABS tone ring with 44 toothed ring teeth
- Neoprene boot material for durability and protection
- Stake locking axle nut included with M22*1.5 thread size
- Overall compressed length of 32.28 inches (820 mm)
Key Features and Specifications
This CV Axle Shaft from TrakMotive features a 44-tooth ABS ring designed to work seamlessly with the vehicle's anti-lock braking system. The neoprene boot material offers resistance to wear and environmental damage, helping to maintain joint integrity. The axle nut is a hex head type, measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inches (34.4 mm). It uses a stake locking mechanism to secure the nut firmly in place.
About the TrakMotive CV Axle Shaft Product Line
The TrakMotive CV Axle Shaft product line focuses on delivering precise fitment and reliable driveline components for various vehicle makes and models. This line emphasizes quality materials and accurate specifications, such as spline counts and joint types, to ensure compatibility and performance. The MZ-8210 model is part of this line, designed to meet the specific requirements of the Mazda CX-7's driveline system.
Applications and Problem Solving
- Replaces worn or damaged CV axle shafts on Mazda CX-7
- Restores smooth power transfer to the wheels
- Eliminates clicking or popping noises during turns
- Prevents grease leaks from torn or damaged boots
- Maintains proper ABS sensor function with included tone ring
Installation Notes and Tips
Installation of the TrakMotive CV Axle Shaft MZ-8210 requires proper torque specifications for the stake locking axle nut (M22*1.5 thread). Ensure the neoprene boot is properly seated to prevent contamination. The inboard joint features a male connection style with 26 splines, while the outboard joint uses a conventional spline connection with 28 splines. Verify spline alignment during installation to avoid premature wear.
Quality Assurance and Warranty
This CV Axle Shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. The inclusion of the ABS tone ring ensures compatibility with the vehicle’s braking system. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality standards for durability and performance.
| Brand | TrakMotive |
| Part Number | MZ-8210 |
| Position | CV Axle Shaft, Rear Left |
| Abs Ring Tooth Count | 44 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.28 |
| Overall Compressed Length (mm) | 820 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2012 | Mazda | CX-7 | AWD | Rear Left | CV Axle Shaft |
| 2011 | Mazda | CX-7 | AWD | Rear Left | CV Axle Shaft |
| 2010 | Mazda | CX-7 | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2009 | Mazda | CX-7 | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2008 | Mazda | CX-7 | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2007 | Mazda | CX-7 | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
