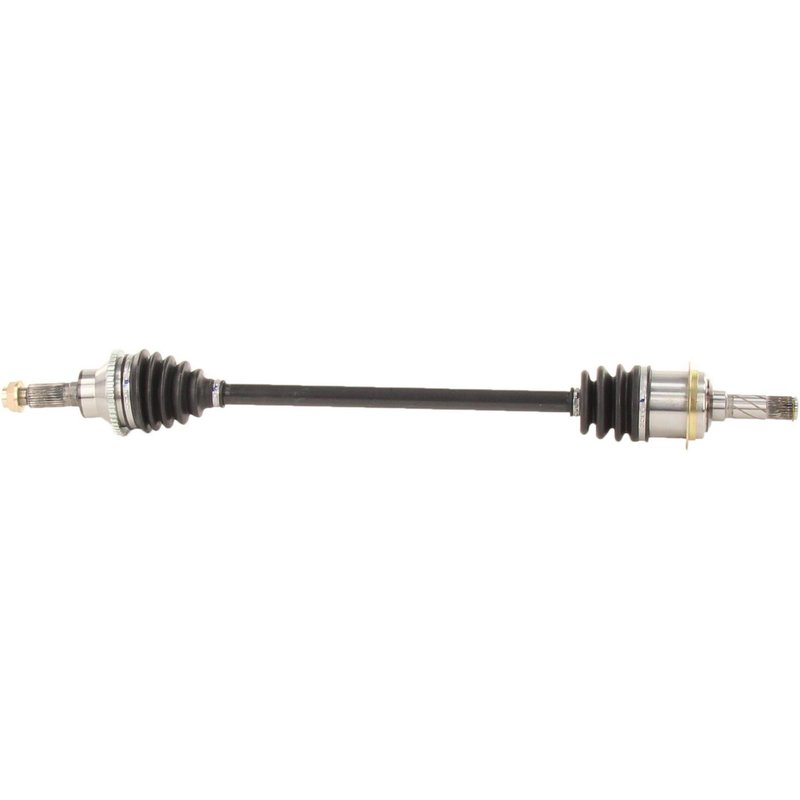

TrakMotive MZ-8213 CV Axle Shaft - Rear Right

TrakMotive CV Axle Shaft for Mazda CX-9

The TrakMotive CV Axle Shaft MZ-8213 is engineered specifically for the Mazda CX-9, providing reliable driveline performance. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Mazda CX-9 models
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced durability
• Stake locking axle nut with hex head included
• Overall compressed length of 34.35 inches (872.5 mm)

Product Line: CV Axle Shaft

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity axle shafts designed to meet or exceed OEM specifications. This line emphasizes precise engineering of inboard and outboard joint types, spline counts, and boot materials to ensure optimal driveline function and longevity. The MZ-8213 model features a male inboard joint and a conventional outboard joint, making it suitable for the specific requirements of the Mazda CX-9.

Detailed Product Description

This CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, helping to protect the joint from contaminants. The inboard joint is a male type with 26 splines, while the outboard joint is conventional with 28 splines, ensuring secure shaft connection and smooth power transfer. The included axle nut is a stake locking type with a hex head measuring 1 1/4 inches (31.8 mm) across flats and a height of 4/5 inches (20 mm), thread size M22x1.5, providing a secure fit during installation. Additionally, the ABS tone ring is toothed with 44 teeth, which is essential for proper ABS sensor function.

Common Applications and Issues Addressed

• Replacement for worn or damaged CV axle shafts on Mazda CX-9
• Resolves issues related to torn or leaking CV boots
• Eliminates axle shaft vibrations and clicking noises during turns
• Restores proper ABS sensor signal with included tone ring
• Addresses axle nut loosening with stake locking design

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the axle nut torque specifications for the Mazda CX-9 and use a proper torque wrench to tighten the included stake locking axle nut. Inspect the CV boots and joints for any signs of damage during installation. The neoprene boot material requires careful handling to avoid punctures. Confirm the ABS tone ring is properly aligned to maintain ABS sensor accuracy.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8213 is a new, remanufactured-quality replacement part designed to meet OEM standards. It includes all necessary components such as the axle nut and ABS tone ring for a complete installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance and fitment for the Mazda CX-9.
