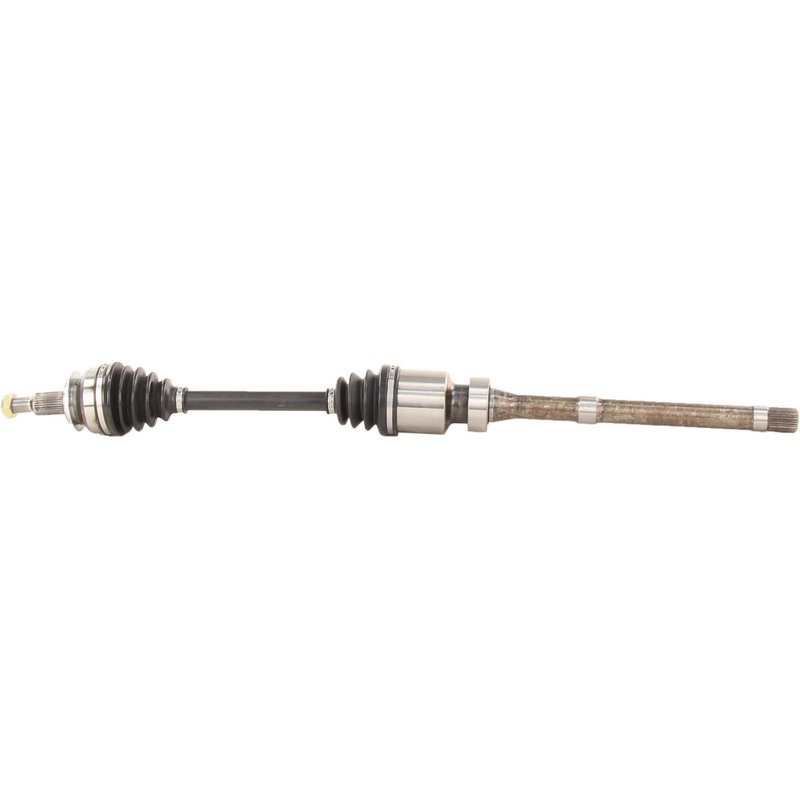

TrakMotive MZ-8216 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft MZ-8216 for Mazda CX-5

The TrakMotive CV Axle Shaft MZ-8216 is designed specifically for Mazda CX-5 models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining smooth vehicle operation.

• Compatible with Mazda CX-5 vehicles
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced durability
• Overall compressed length of 39.96 inches (1015 mm)
• 31 splines on both inboard and outboard joints
• New, not remanufactured, for consistent quality

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components engineered for precise fitment and durability. This line includes shafts with neoprene boots and conventional outboard joints, designed to meet OEM specifications. The MZ-8216 part exemplifies this line by offering a robust neoprene boot and a self-locking axle nut to maintain secure installation and long service life.

Technical Specifications and Features

The MZ-8216 CV axle shaft features a neoprene boot that resists wear and environmental damage, helping to protect the joint from contaminants. It includes a self-locking axle nut with a hex head type measuring 1 1/4 inches (32 mm) across flats, 3/5 inch (15 mm) in height, and 1 1/2 inch (37 mm) in length. The axle nut thread size is M22*1.5, ensuring a secure fit. Both the inboard and outboard joints have 31 splines, with the inboard joint designed as a male connection and the outboard joint using a conventional spline style. The overall compressed length of the shaft is 39.96 inches (1015 mm), matching the exact requirements for the Mazda CX-5.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mazda CX-5
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by maintaining boot integrity
• Restores proper driveline function after axle shaft damage

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MZ-8216, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the surrounding components for wear or damage before installation. The neoprene boot should be checked for proper seating to prevent contamination. Use appropriate tools for the 1 1/4 inch hex axle nut to avoid rounding off the nut head.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component manufactured to meet OEM standards for fit and function. The inclusion of a self-locking axle nut and durable neoprene boot supports long-term reliability. Warranty details are provided by the manufacturer and typically cover defects in materials and workmanship under normal use.
