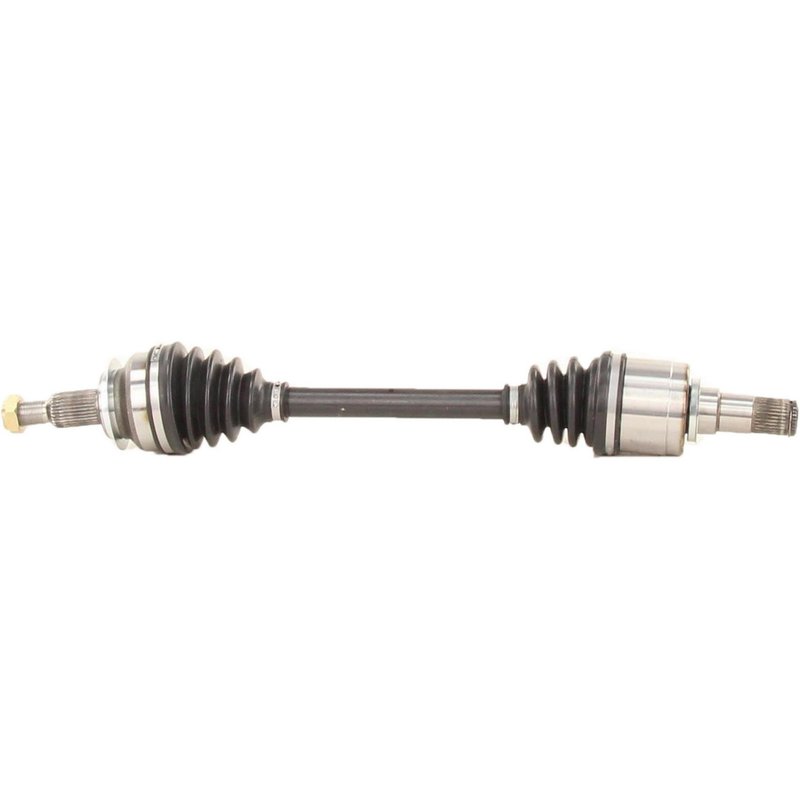

TrakMotive MZ-8224 CV Axle Shaft - Front Left
| Brand | TrakMotive MZ-8224 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.08 |
| Overall Compressed Length (mm) | 662.5 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 8 vehicles |
New axle shaft. Built as a direct replacement for driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Includes axle nut. Self-locking hardware is ready for installation.
Cross-references TrakMotive MZ-8224 and GBD12560XA for the same application. See all 2.
TrakMotive CV Axle Shaft MZ-8224
TrakMotive MZ-8224 is a new front left CV axle shaft for select Mazda applications, including the 2014-2017 Mazda 6 and 2013-2016 Mazda CX-5. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service.
Key Features
- Part number: MZ-8224
- Front left CV axle shaft for Mazda 6 and Mazda CX-5 applications
- New replacement axle with 31 inboard splines and 31 outboard splines
- Neoprene boot material for driveline protection
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and self-lock design
- Overall compressed length: 26.08 in (662.5 mm)
- ABS tone ring not included
Product Details
This TrakMotive CV axle shaft is engineered for front left driveline replacement on the Mazda 6 and Mazda CX-5. The axle uses a male inboard shaft connection, spline-style outboard connection, and a conventional outboard joint, with a 31-spline count at both ends for the specified applications. TrakMotive MZ-8224 is manufactured as a new part and is backed by ISO 9001:1007 and TS 16949:2009 certified company standards. This part cross-references Monroe Shocks & Struts (e.g., GBD12560XA) for the same application.
Common Repair Applications
- Front left axle noise during acceleration or turning
- Vibration from a worn inner or outer CV joint
- Torn or deteriorated axle boot on a Mazda 6 or Mazda CX-5
- Clicking or popping from the front driveline
- Replacement for a damaged or worn CV axle shaft assembly
Installation Notes
Verify spline count, compressed length, and axle nut thread size before installation. This axle includes the axle nut specified in the product data; ABS tone ring is not included. Confirm front left fitment on the vehicle and inspect related suspension and hub components during service to help ensure proper operation.
Quality Assurance
TrakMotive MZ-8224 is a new CV axle shaft supported by a limited lifetime warranty. The manufacturer states that ABS axles fit non-ABS applications unless otherwise noted, and the company is ISO 9001:1007 and TS 16949:2009 certified.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Mazda | 6 | Manual | — | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2016 | Mazda | 6 | Manual | 2.5L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2016 | Mazda | CX-5 | Manual | — | — | Front Left | CV Axle Shaft |
| 2015 | Mazda | 6 | Manual | 2.5L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2015 | Mazda | CX-5 | Manual | — | — | Front Left | CV Axle Shaft |
| 2014 | Mazda | 6 | Manual | 2.5L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2014 | Mazda | CX-5 | Manual | — | — | Front Left | CV Axle Shaft |
| 2013 | Mazda | CX-5 | Manual | — | — | Front Left | CV Axle Shaft |
