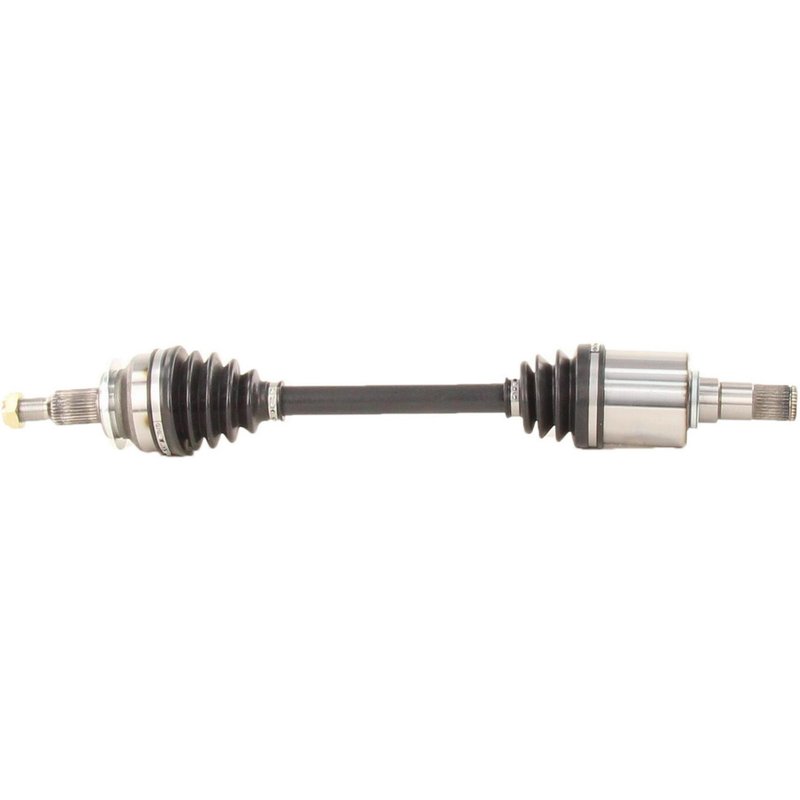

TrakMotive MZ-8225 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MZ-8225

The TrakMotive CV Axle Shaft MZ-8225 is designed specifically for Mazda 6 and CX-5 models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining vehicle stability and handling.

• Compatible with Mazda 6 and Mazda CX-5
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced durability
• Overall compressed length of 25.67 inches (652 mm)
• 31 splines on both inboard and outboard joints

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. The MZ-8225 model features a conventional outboard joint and a male inboard joint connection style, designed to meet OEM specifications for Mazda vehicles. This line emphasizes quality materials such as neoprene boots and includes necessary hardware like the self-locking axle nut to ensure secure installation and long-term performance.

Technical Specifications and Features

This CV axle shaft includes a self-locking axle nut with a hex head type measuring 1 1/4 inches (32 mm) across flats and a height of 3/5 inches (15 mm). The axle nut length is 1 1/2 inches (37 mm) with an M22x1.5 thread size. The neoprene boot protects the CV joints from contaminants and wear. Both the inboard and outboard joints have 31 splines, with the inboard joint featuring a male connection style and the outboard joint using a conventional spline connection. The overall compressed length of 25.67 inches (652 mm) ensures proper fitment within the driveline assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Mazda 6 and CX-5
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leakage and contamination with durable neoprene boots
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MZ-8225, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the surrounding components such as wheel bearings and suspension parts for wear during replacement. The neoprene boot should be checked for proper seating to prevent premature joint failure. This part is designed for direct replacement on compatible Mazda 6 and CX-5 models, requiring no modifications.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8225 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes the axle nut and features durable materials like neoprene boots for extended service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment accuracy.
