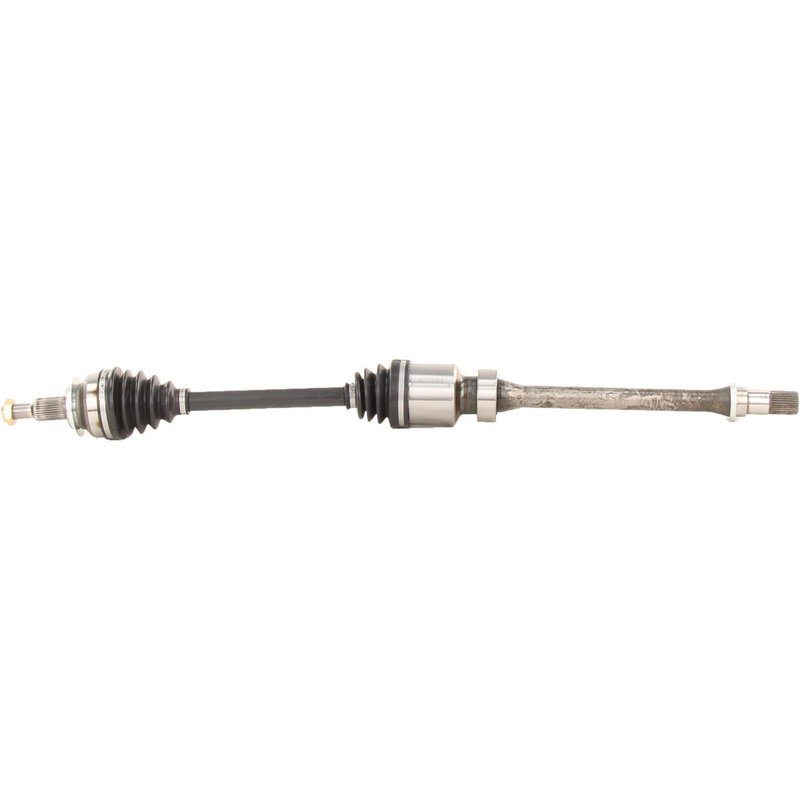

TrakMotive MZ-8226 CV Axle Shaft - Front Right
| Brand | TrakMotive MZ-8226 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 39.96 |
| Overall Compressed Length (mm) | 1015 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 4 vehicles |
New CV axle shaft. Direct replacement for a straightforward driveline repair.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Includes axle nut. A self-locking nut is provided for easier installation.
Cross-references TrakMotive MZ-8226, 40732098 and FTB12550X for the same application. See all 5.
CV Axle Shaft for Mazda CX-5 Front Right
TrakMotive MZ-8226 is a new CV axle shaft for the front right position on select 2013-2016 Mazda CX-5 models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the listed application.
Key Features
- Fits 2013-2016 Mazda CX-5, front right
- New CV axle shaft for driveline and axle repair
- 31 inboard splines and 31 outboard splines
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and self-lock design
- Neoprene boot material for CV joint protection
- Overall compressed length: 39.96 in (1015 mm)
- No ABS tone ring included
- TrakMotive MZ-8226 cross-references Monroe Shocks & Struts 172286
Product Details
This TrakMotive CV axle shaft is engineered for the front right side of the Mazda CX-5 and matches the listed spline count, shaft connection style, and compressed length for the application. The MZ-8226 part number is also referenced as MZ-8226 in catalog listings, making it easier to verify the correct driveline component before service. TrakMotive’s CV axle shaft line focuses on replacement driveline parts for passenger vehicles, and this unit is built as a new assembly for direct replacement use on the specified Mazda CX-5 fitment.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Torn or leaking CV boot conditions
- Axle shaft play caused by internal joint wear
- Front right driveline failure on the listed Mazda CX-5 applications
Installation Notes and Tips
Verify spline count, axle nut thread size, and front right position before installation. Confirm whether the vehicle uses ABS-related components, since this axle does not include an ABS tone ring. Use the included axle nut when servicing the listed application, and follow factory torque specifications and alignment procedures after installation.
Quality Assurance
TrakMotive lists this CV axle shaft under a limited lifetime warranty and identifies the product line as ISO 9001:1007 and TS 16949:2009 certified manufacturing.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2016 | Mazda | CX-5 | FWD | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2015 | Mazda | CX-5 | FWD | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2014 | Mazda | CX-5 | FWD | Automatic | 2.0L | L4 | Front Right | CV Axle Shaft |
| 2013 | Mazda | CX-5 | FWD | Automatic | — | — | Front Right | CV Axle Shaft |
