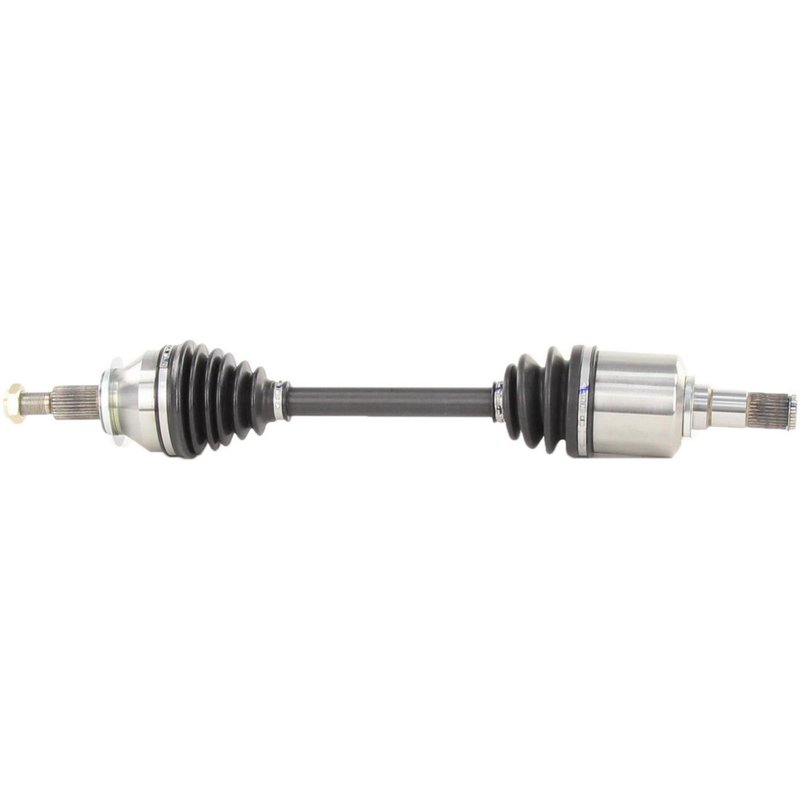

TrakMotive MZ-8228 CV Axle Shaft - Front Left

Overview of TrakMotive AAR CV Axle Shaft MZ-8228

The TrakMotive AAR CV Axle Shaft MZ-8228 is designed specifically for Mazda CX-9 models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Mazda CX-9
• Part Number: MZ-8228
• Includes self-locking axle nut with hex head
• Neoprene boot material for enhanced durability
• Inboard and outboard spline connection style
• Overall compressed length of 26.54 inches (674 mm)

Features and Specifications

The AAR CV Axle Shaft from TrakMotive features a neoprene boot that resists wear and environmental damage, helping to protect the joint from contaminants. The inboard joint is a male type with 31 splines, connecting via a spline shaft style, while the outboard joint is conventional with 31 splines as well. The included axle nut is a self-locking type with a hex head measuring 1.26 inches (32 mm) across flats, 0.59 inches (15 mm) in height, and 1.46 inches (37 mm) in length. The axle nut thread size is M22 x 1.5, ensuring secure fastening during installation.

About the AAR CV Axle Shaft Product Line

The AAR CV Axle Shaft line by TrakMotive focuses on delivering precise fitment and reliable driveline components for specific vehicle applications. This product line emphasizes quality materials such as neoprene boots and robust spline connections to maintain drivetrain integrity and performance. The MZ-8228 model is part of this line, engineered to meet the exact specifications required for the Mazda CX-9.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Mazda CX-9
• Resolves clicking or popping noises during turns caused by joint wear
• Eliminates vibration or shuddering from axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity
• Addresses axle nut loosening issues with self-locking design

Installation Notes and Tips

When installing the TrakMotive AAR CV Axle Shaft MZ-8228, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the splines on both the inboard and outboard shafts for proper engagement. The neoprene boot should be checked for any damage during installation to guarantee a tight seal. Proper alignment and compressed length of 26.54 inches (674 mm) must be confirmed to avoid driveline stress.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. TrakMotive products typically undergo rigorous quality control to ensure durability and performance. Please refer to TrakMotive's warranty policy for specific coverage details related to the AAR CV Axle Shaft MZ-8228.
