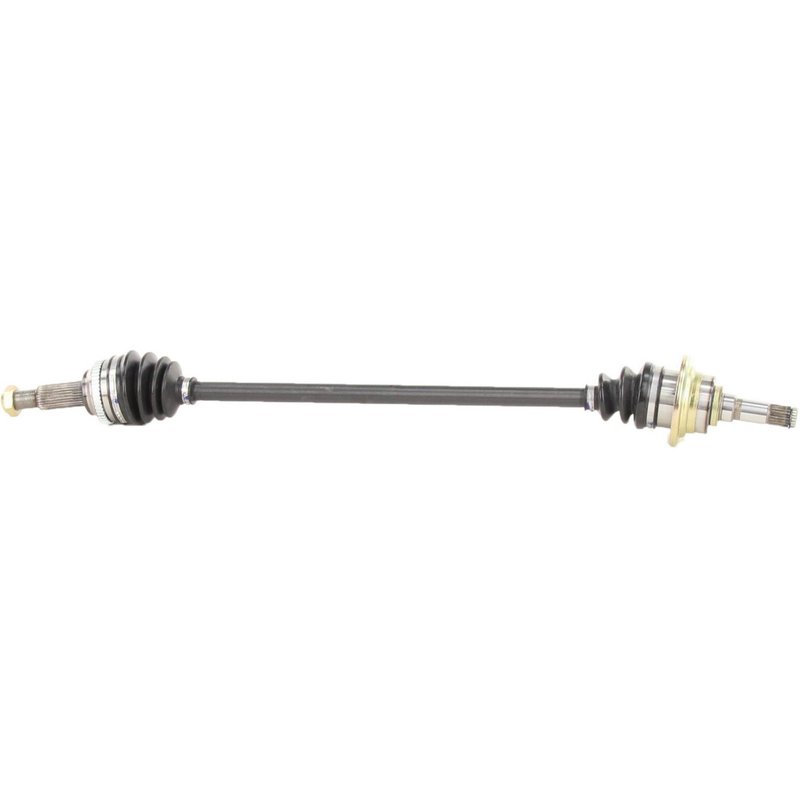

TrakMotive MZ-8231 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft MZ-8231 for Mazda CX-9

The TrakMotive CV Axle Shaft MZ-8231 is engineered specifically for Mazda CX-9 models, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Mazda CX-9
• Part Number: MZ-8231
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for enhanced durability
• Self-locking hex axle nut included (M22*1.5 thread size)
• Overall compressed length of 33.39 inches (848 mm)
• Inboard joint type: Male with 22 splines
• Outboard joint type: Conventional with 28 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity axle components designed to meet OEM specifications. This line emphasizes precise spline counts and robust joint types to ensure smooth power transfer and long service life. The MZ-8231 model exemplifies these standards with its combination of a male inboard joint and conventional outboard joint, along with a neoprene boot for protection against contaminants.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS tone ring that is included and designed with a toothed ring type for accurate wheel speed sensor readings. The axle nut is a self-locking hex type, measuring 0.59 inches (15 mm) in height and 1.26 inches (32 mm) across the hex, with a length of 1.46 inches (37 mm). The axle nut thread size is M22*1.5, ensuring secure fastening. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The inboard shaft connects via a 22-spline male spline, while the outboard shaft uses a 28-spline conventional joint, both designed for spline connection style.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Mazda CX-9
• Resolves issues with axle vibration or clicking noises during turns
• Addresses ABS sensor errors related to faulty tone rings
• Fixes grease leaks caused by torn or degraded CV boots
• Improves driveline stability and power transfer efficiency

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MZ-8231, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Verify the ABS tone ring is properly aligned to avoid sensor errors. Inspect the neoprene boot for any damage during installation to prevent premature failure. This part is designed for direct replacement on compatible Mazda CX-9 models, requiring no modifications.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8231 is a new, OEM-quality replacement part manufactured to meet or exceed industry standards. It includes a self-locking axle nut and a durable neoprene boot to ensure long-term reliability. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary.
