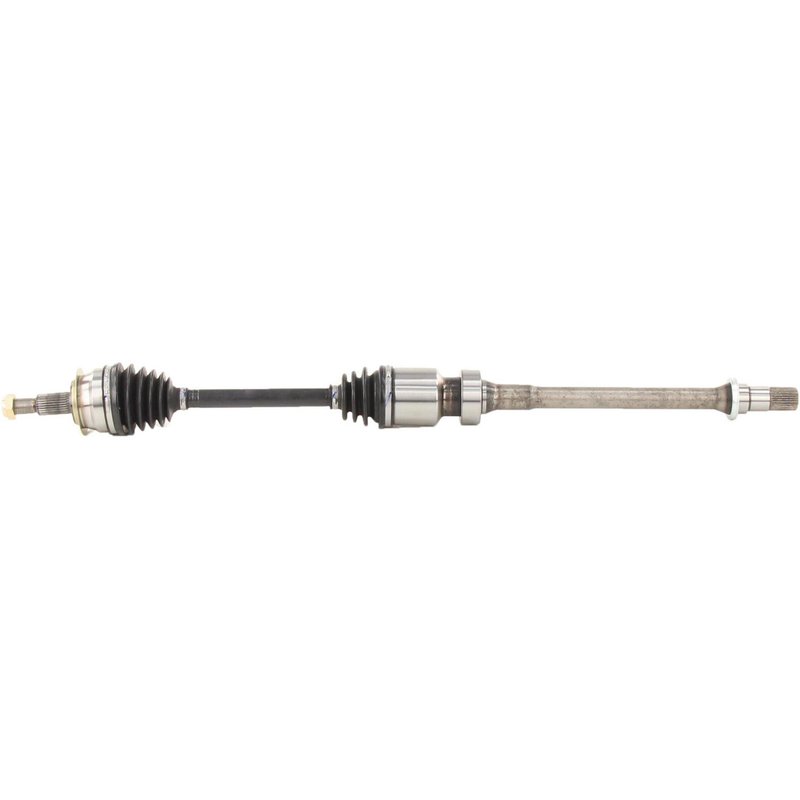

TrakMotive MZ-8236 CV Axle Shaft - Front Right
| Brand | TrakMotive MZ-8236 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.59 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.46 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 39.35 |
| Overall Compressed Length (mm) | 999.5 |
| Product line | AAR CV Axle Shaft |
| Fits | Mazda · 5 vehicles |
New unit. Built as a new CV axle shaft for dependable replacement.
Neoprene boot. Flexible material helps protect the joint from wear and contamination.
Included axle nut. Comes with a self-locking nut for easier installation.
Cross-references TrakMotive MZ-8236 and MZ10548ER for the same application. See all 2.
Front Right CV Axle Shaft for Mazda 3
TrakMotive MZ-8236 is a new front right CV axle shaft for 2014-2018 Mazda 3 applications. It is built with a neoprene boot, spline-style shaft connections, and a conventional outboard joint for direct driveline service on the specified vehicle fitment.
Key Features
- Fits 2014-2018 Mazda 3, front right
- New CV axle shaft for driveline replacement service
- Inboard joint type: male with 31 inboard splines
- Outboard joint type: conventional with 28 outboard splines
- Neoprene boot material for axle boot durability
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, self-lock design
- Overall compressed length: 39.35 in (999.5 mm)
- ABS tone ring not included
Product Details
The TrakMotive AAR CV Axle Shaft line focuses on replacement axle assemblies for driveline repair. Part number MZ-8236 is an OE-style service part for the front right position on the Mazda 3, with the specified spline counts, shaft connection styles, and axle nut configuration needed for the listed application. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Repair Uses
- Restores power transfer to the front right wheel
- Addresses clicking or popping during turns caused by worn CV joints
- Replaces a damaged axle shaft with boot wear or grease loss
- Helps correct vibration or driveline noise from a failing axle assembly
- Supports repair of axle nut or spline-related service issues
Installation Notes
Verify front right fitment before installation and confirm spline count, axle nut thread size, and compressed length against the original part. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring. Use the included axle nut and follow Mazda service procedures for torque and final inspection.
Quality Assurance
TrakMotive manufactures this axle as a new replacement part in an ISO 9001:1007 and TS 16949:2009 certified facility. MZ-8236 is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Mazda | 3 | Automatic | 2.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Mazda | 3 | Automatic | 2.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Mazda | 3 | Automatic | 2.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Mazda | 3 | Automatic | 2.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Mazda | 3 | Automatic | 2.5L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
