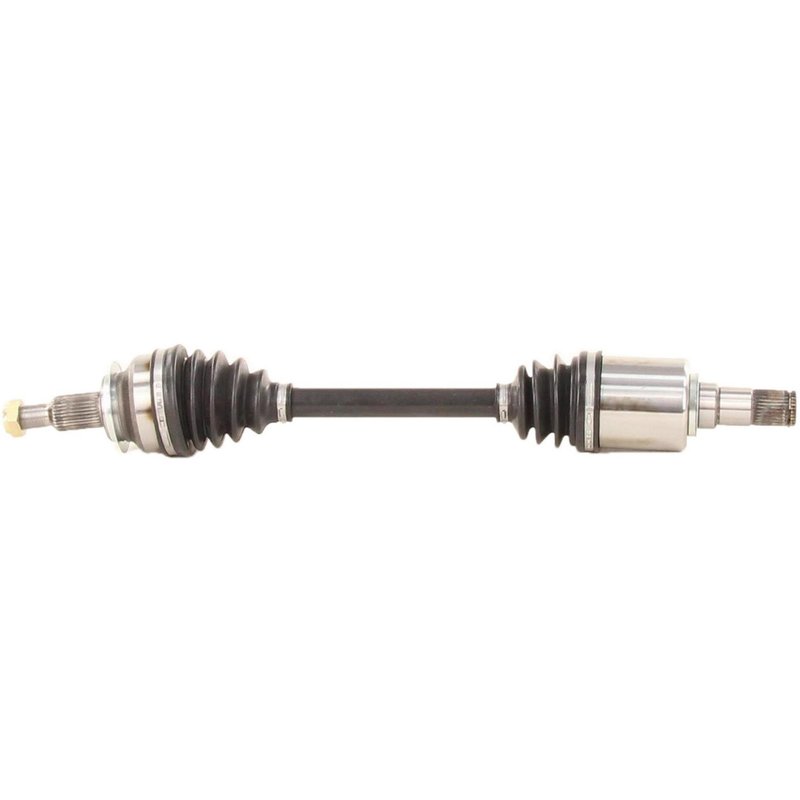

TrakMotive MZ-8237 CV Axle Shaft - Front Left
| Brand | TrakMotive MZ-8237 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.59 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.63 |
| Overall Compressed Length (mm) | 651 |
| Product line | AAR CV Axle Shaft |
| Fits | Mazda · 8 vehicles |
New axle shaft. Built with spline connections and conventional joint design.
Neoprene boot. Helps resist wear while keeping the joint protected.
Axle nut included. Self-locking hardware is ready for installation.
Cross-references TrakMotive MZ-8237 for the same application. See all 1.
Front Left CV Axle Shaft for Mazda 6 and CX-5
TrakMotive MZ-8237 is a new front left CV axle shaft built for specific Mazda applications with updated design details. It is engineered for 2014-2017 Mazda 6 and 2013-2016 Mazda CX-5 front left positions, with spline-style shaft connections and a conventional outboard joint.
The TrakMotive AAR CV Axle Shaft line focuses on replacement driveline components built to match application-specific fitment requirements. This MZ-8237 axle includes a self-locking axle nut and uses a neoprene boot material for the joint assembly.
- Fits 2014-2017 Mazda 6, front left
- Fits 2013-2016 Mazda CX-5, front left
- New CV axle shaft with 31 inboard splines and 31 outboard splines
- Male inboard joint with spline shaft connection style
- Conventional outboard joint design
- Overall compressed length: 25.63 in. (651 mm)
- Axle nut included: M22 x 1.5, 32 mm hex, self-locking
- Neoprene boot material
Use TrakMotive MZ-8237 when replacing a worn or damaged front left axle on a Mazda 6 or Mazda CX-5 with the listed fitment. The axle is built to match the original application layout and dimensions, including the compressed length, spline count, and nut specification needed for proper driveline service.
Common Replacement Reasons
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration caused by axle wear
- Grease leakage from a damaged boot
- Noise from a failing front left driveline shaft
- Loss of smooth power transfer to the wheel
Installation Notes
Verify front left fitment by year, model, and axle specification before installation. Confirm the axle nut thread size, hex size, and spline count against the removed part. Inspect related suspension and hub components for wear, and replace any damaged seals or hardware as needed during service.
Quality Assurance
TrakMotive lists this AAR CV Axle Shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer also states a limited lifetime warranty. This part cross-references TrakMotive MZ-8237 for the same application.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Mazda | 6 | Automatic | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Mazda | 6 | Automatic | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Mazda | CX-5 | Automatic | 2.0L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2015 | Mazda | 6 | Automatic | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2015 | Mazda | CX-5 | Automatic | 2.0L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2014 | Mazda | 6 | Automatic | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
| 2014 | Mazda | CX-5 | Automatic | 2.0L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2013 | Mazda | CX-5 | Automatic | — | — | Front Left | Updated Design; AAR CV Axle Shaft |
