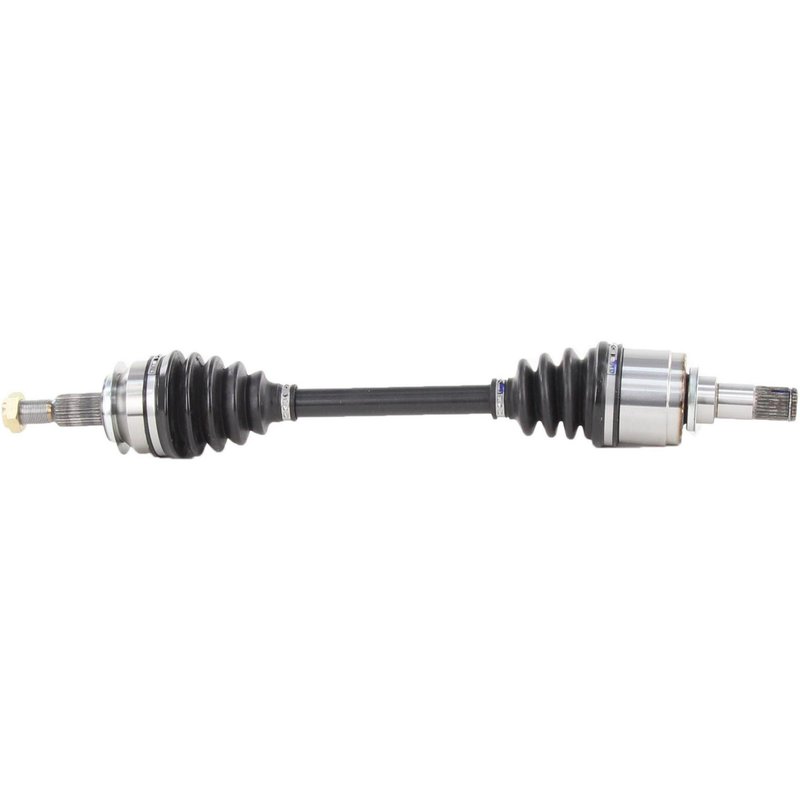

TrakMotive MZ-8241 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft MZ-8241 for Mazda 3

The TrakMotive CV Axle Shaft MZ-8241 is designed specifically for Mazda 3 models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Mazda 3 models
• New, not remanufactured CV axle shaft
• Includes self-locking hex axle nut (M22*1.5 thread size)
• Neoprene boot material for enhanced joint protection
• Inboard and outboard spline connection style for secure fit
• Overall compressed length of 25.51 inches (648 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for precise fit and function. This line includes shafts with durable neoprene boots and reliable spline connections, designed to maintain driveline integrity and reduce wear. The MZ-8241 model exemplifies these standards with its robust construction and included self-locking axle nut for secure installation.

Technical Specifications and Features

The MZ-8241 CV axle shaft features a male inboard joint type with 28 splines and a conventional outboard joint also with 28 splines, both utilizing spline shaft connection styles. The neoprene boot material offers resistance to environmental factors, helping to extend joint life. The included axle nut is a hex head type, measuring 1.26 inches (32 mm) across the flats, with a height of 0.59 inches (15 mm) and a length of 1.45 inches (36.95 mm). This nut is self-locking, ensuring secure fastening during operation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Mazda 3 vehicles
• Addresses issues such as clicking noises during turns caused by joint wear
• Resolves vibration problems linked to axle shaft imbalance or damage
• Prevents grease leakage by providing a durable neoprene boot seal
• Improves driveline reliability and vehicle handling

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft MZ-8241, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Verify spline alignment on both inboard and outboard connections for proper engagement. Inspect the neoprene boot for any damage before installation to prevent premature joint failure. This part is designed for direct replacement on compatible Mazda 3 models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft MZ-8241 is a new component manufactured to meet OEM standards for fit and function. It includes a self-locking axle nut to enhance safety and reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure durability and performance in driveline applications.
