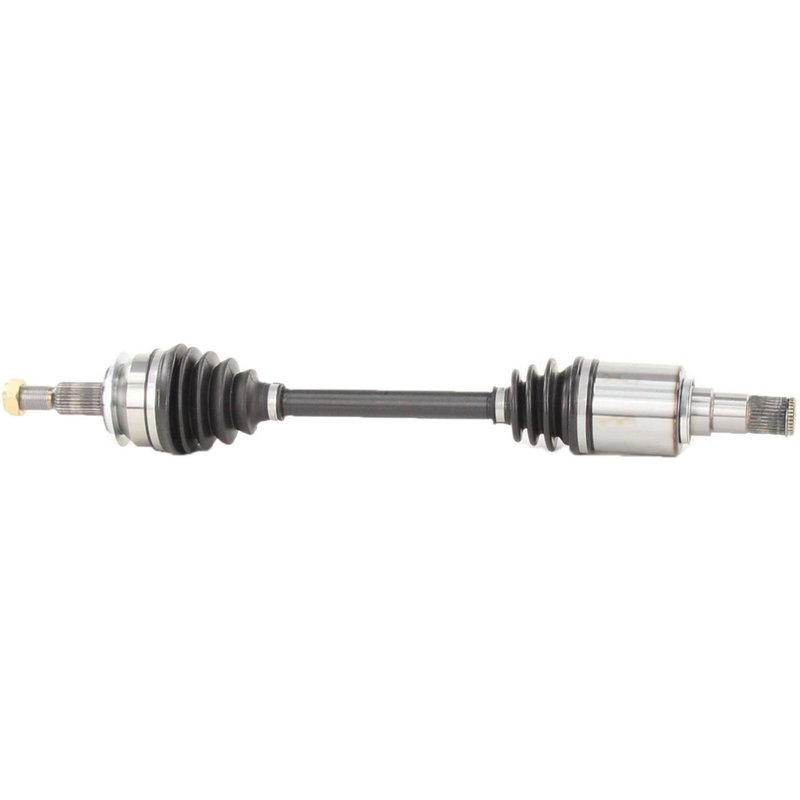

TrakMotive MZ-8243 CV Axle Shaft - Front Left

TrakMotive AAR CV Axle Shaft for Mazda 3

The TrakMotive AAR CV Axle Shaft, part number MZ-8243, is a new front left axle assembly for 2014-2018 Mazda 3 applications. It is built with a neoprene boot, spline-style shaft connections, and includes the axle nut for a direct replacement on the specified vehicle fitment.

Key Features

• Fits 2014-2018 Mazda 3, front left
• TrakMotive AAR CV Axle Shaft, part number MZ-8243
• New replacement axle shaft with 31 inboard splines and 28 outboard splines
• Male inboard joint with conventional outboard joint design
• Neoprene boot material for driveline protection
• Axle nut included with M22 x 1.5 thread, 32 mm hex size, and self-lock design
• Overall compressed length: 25.12 in. (638 mm)
• ABS tone ring not included

Product Details

This AAR CV axle shaft is engineered for the front left position on the Mazda 3 and follows the specified spline counts, joint styles, and compressed length for the listed applications. The TrakMotive MZ-8243 is a new axle assembly that supports OE-style driveline replacement needs for 2014-2018 Mazda 3 models, including updated design coverage noted for this application. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Clicking or popping noises during turns from a worn CV joint
• Vibration or shudder during acceleration
• Torn axle boot or grease leakage
• Excessive driveline play or axle wear
• Front left axle failure on a 2014-2018 Mazda 3

Installation Notes

Verify front left fitment before installation on the Mazda 3 and confirm spline count, compressed length, and axle nut thread size against the original part. The included axle nut uses an M22 x 1.5 thread and 32 mm hex size. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle configuration.

Quality Assurance

TrakMotive identifies this axle shaft as a new component from an ISO 9001:1007 and TS 16949:2009 certified company. The part is backed by a limited lifetime warranty.
