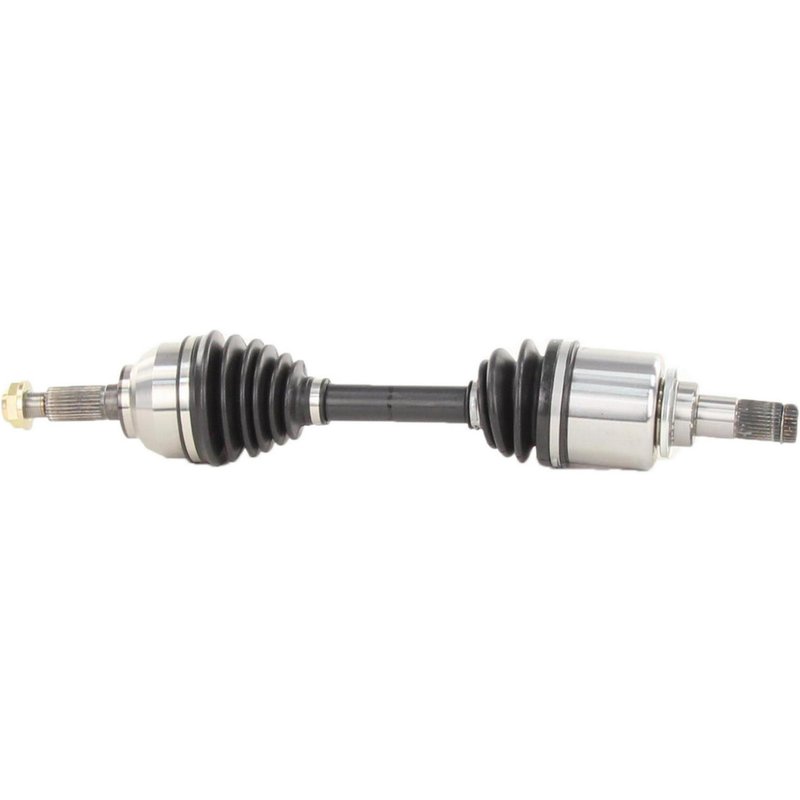

TrakMotive MZ-8244 CV Axle Shaft - Front Left
| Brand | TrakMotive MZ-8244 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.74 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.66 |
| Overall Compressed Length (mm) | 601 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 3 vehicles |
New replacement part. Built as a new CV axle shaft for straightforward service replacement.
Spline connection. Inboard and outboard spline ends provide a secure driveline interface.
Includes axle nut. Comes with a self-locking nut for easier installation.
Cross-references TrakMotive MZ-8244 and GG4625600C for the same application. See all 2.
CV Axle Shaft for Mazda 3 Front Left
TrakMotive MZ-8244 is a new front left CV axle shaft for 2007-2009 Mazda 3 applications. It is built with a 23.66 in. compressed length, 30 inboard splines, and 28 outboard splines for direct driveline replacement on the listed vehicles.
Key Features
- Fits 2007-2009 Mazda 3, front left
- New CV axle shaft from TrakMotive
- Inboard joint type: male with spline shaft connection
- Outboard joint type: conventional with spline shaft connection
- Overall compressed length: 23.66 in. (601 mm)
- Includes axle nut with M22 x 1.5 thread size
- Axle nut features a self-locking design and hex head
- No ABS tone ring included
Detailed Description
TrakMotive MZ-8244 is a CV axle shaft for Mazda 3 front left fitment in 2007, 2008, and 2009 models. This axle is supplied new and uses a male inboard joint with spline connections at both ends, along with 30 inboard splines and 28 outboard splines for the specified application. The axle nut is included, with a 31.8 mm hex size and M22 x 1.5 thread specification. TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts, and this part cross-references Monroe Shocks & Struts (e.g., GG4625600C) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration felt through the drivetrain under acceleration
- Grease leakage from a damaged axle boot or joint area
- Excessive play in the front left driveline assembly
- Loss of smooth power transfer to the wheel
Installation Notes and Tips
Verify front left fitment by matching the vehicle year, model, spline count, and compressed length before installation. Inspect the hub, seals, and surrounding suspension components for wear, and confirm the axle nut thread and hex size match the vehicle specification. Because this axle does not include an ABS tone ring, confirm the vehicle does not require one for the listed application.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification for its manufacturing quality systems.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2009 | Mazda | 3 | Mazdaspeed | Manual | 2.3L | L4 | Front Left | CV Axle Shaft |
| 2008 | Mazda | 3 | Mazdaspeed | Manual | 2.3L | L4 | Front Left | CV Axle Shaft |
| 2007 | Mazda | 3 | Mazdaspeed | Manual | 2.3L | L4 | Front Left | CV Axle Shaft |
