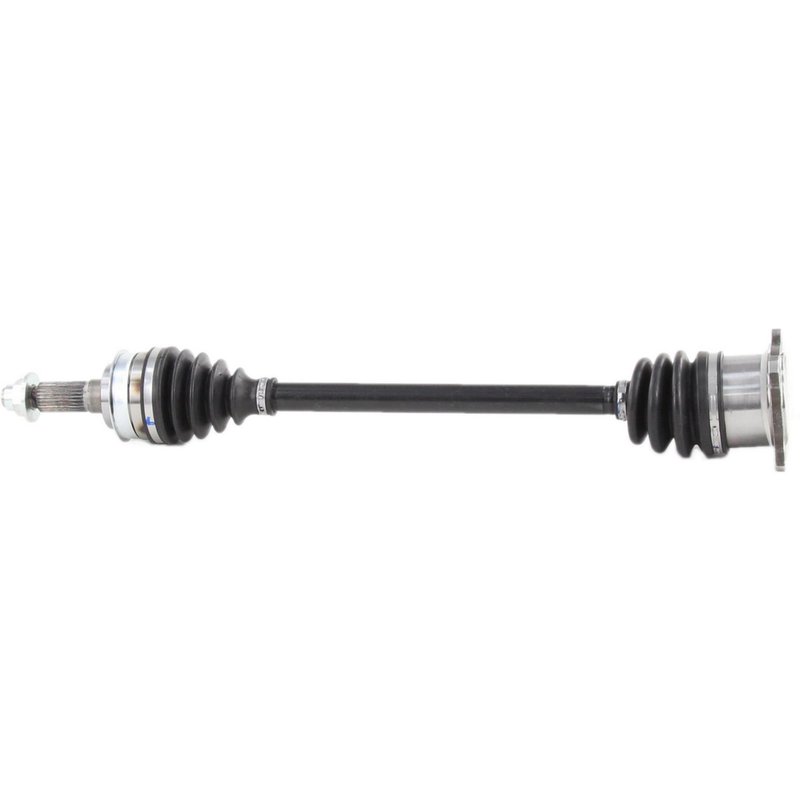

TrakMotive MZ-8255 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive MZ-8255 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.89 |
| Axle Nut Height (mm) | 22.6 |
| Axle Nut Hex Size (in) | 1.13 |
| Axle Nut Hex Size (mm) | 28.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.31 |
| Axle Nut Length (mm) | 33.25 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M20*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Flange |
| Inboard Shaft Connection Style | Bolt-On |
| New Or Remanufactured | New |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.24 |
| Overall Compressed Length (mm) | 641 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 8 vehicles |
Bolt-on installation. Flange and spline connections simplify replacement.
Neoprene boot. Helps protect the joint from dirt and moisture.
New unit. Built as a fresh replacement, not remanufactured.
Cross-references Cardone Reman 60-8040, TrakMotive MZ-8255 and M09025500RM0 for the same application. See all 3.
CV Axle Shaft for Mazda Miata
TrakMotive MZ-8255 is a new CV axle shaft for rear axle service on the 1990-1993 Mazda Miata. It is built for rear left and rear right applications and includes an axle nut for a direct replacement setup.
- Fits 1990-1993 Mazda Miata, rear right
- Fits 1990-1993 Mazda Miata, rear left
- New CV axle shaft for driveline and axle repair
- Flange-style inboard joint with bolt-on shaft connection
- Conventional outboard joint with spline connection
- 26 outboard splines
- Neoprene boot material
- Axle nut included, M20 x 1.5 thread, self-locking type
- Overall compressed length: 25.24 in. (641 mm)
Product Details
The TrakMotive CV Axle Shaft, part number MZ-8255, is specified for Mazda Miata rear axle replacement on 1990-1993 models. The shaft uses a flange inboard joint and a conventional outboard joint, with a spline-style outboard connection and 26 outboard splines for the listed applications. The axle nut is included, and the assembly uses a hex-head nut with M20 x 1.5 thread size. TrakMotive also notes that ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
This part cross-references Cardone Reman 60-8040 for the same application.
Common Repair Uses
- Restores rear axle function when the original CV axle is worn or damaged
- Addresses clicking, vibration, or driveline noise from a failing axle assembly
- Replaces a leaking or torn CV boot assembly on the Mazda Miata
- Supports repair after spline, joint, or shaft wear in rear driveline service
Installation Notes
Verify rear left or rear right application before installation on your Mazda Miata. Confirm spline count, axle nut thread size, and overall length against the removed part before assembly. Inspect mating surfaces, hub condition, and flange hardware during service, and torque fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and identifies the product line as ISO 9001:1007 and TS 16949:2009 certified. The MZ-8255 is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1993 | Mazda | Miata | Rear Right | MX-5; CV Axle Shaft |
| 1993 | Mazda | Miata | Rear Left | MX-5; CV Axle Shaft |
| 1992 | Mazda | Miata | Rear Right | MX-5; CV Axle Shaft |
| 1992 | Mazda | Miata | Rear Left | MX-5; CV Axle Shaft |
| 1991 | Mazda | Miata | Rear Right | MX-5; CV Axle Shaft |
| 1991 | Mazda | Miata | Rear Left | MX-5; CV Axle Shaft |
| 1990 | Mazda | Miata | Rear Right | MX-5; CV Axle Shaft |
| 1990 | Mazda | Miata | Rear Left | MX-5; CV Axle Shaft |
