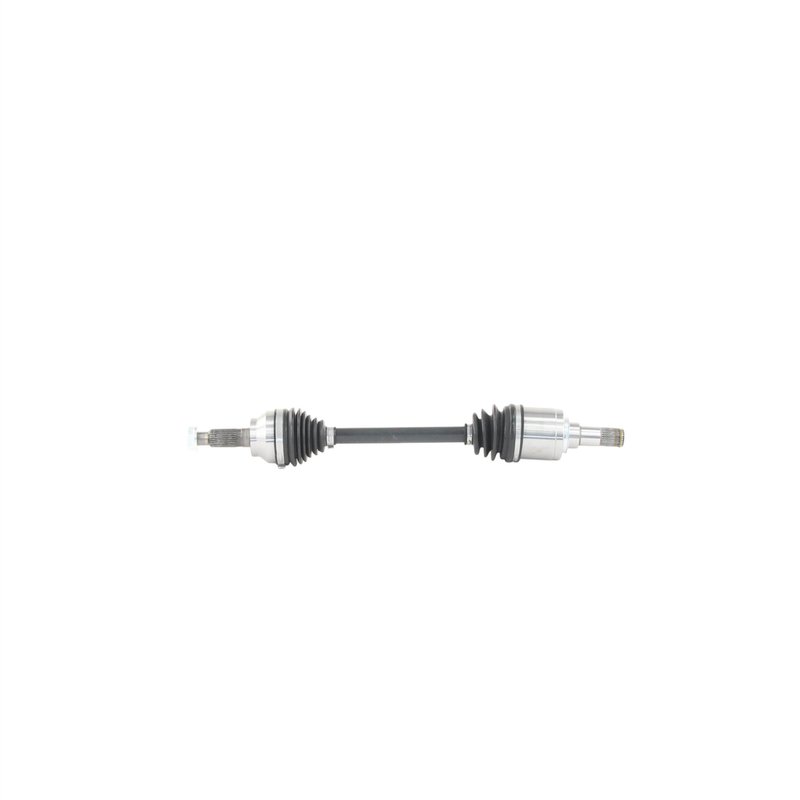

TrakMotive MZ-86002 CV Axle Shaft - Front Left
| Brand | TrakMotive MZ-86002 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.65 |
| Overall Compressed Length (mm) | 626 |
| Overall Extended Length (in) | 26.32 |
| Overall Extended Length (mm) | 669 |
| Product line | AAR CV Axle Shaft |
| Fits | Mazda · 2 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward service fit.
Premium grade. Built with neoprene and thermoplastic boots for durable joint protection.
Spline connection. 28-spline inboard and outboard ends for secure power transfer.
Cross-references TrakMotive MZ-86002 and FTA32560X for the same application. See all 2.
Front Left CV Axle Shaft for Mazda 3
Restore driveline performance with the TrakMotive AAR CV Axle Shaft, part number MZ-86002. This front left axle is built for 2012-2013 Mazda 3 applications with OE AAR design, giving you a direct-fit replacement for the specified front-left position.
The TrakMotive AAR CV Axle Shaft line focuses on application-specific driveline replacement parts. For this Mazda 3 axle shaft, the design uses 28 splines at both the inboard and outboard connections, a male inboard joint, and a conventional outboard joint for the listed fitment.
- Fits 2012-2013 Mazda 3, front left
- Part number MZ-86002
- OE AAR design for the listed application
- Premium grade CV axle shaft
- Inboard joint boot material: neoprene
- Outboard joint boot material: thermoplastic
- Includes axle nut with M22x1.5 thread size, 32 mm hex/socket size, and self-locking design
- ABS tone ring not included; ABS ring tooth count: 0
Built with a compressed length of 626 mm and an extended length of 669 mm, this axle shaft is specified for the front left side of the Mazda 3. The 28-spline inboard and outboard shaft connections help match the OE AAR layout for the listed vehicles, while the included axle nut supports a complete replacement setup for the hub connection.
Common Driveline Problems It Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration caused by axle wear
- Grease leakage from damaged CV boots
- Clunking or looseness in the front driveline
- Axle shaft damage from age, road impact, or joint wear
Installation Notes and Tips
Verify front-left fitment against the vehicle’s OE AAR design before installation. Confirm axle nut thread size, hex size, and overall axle length match the original part, and inspect the hub, seals, and surrounding suspension components for wear before reassembly. This part cross-references FTA32560X for the same application.
Quality Assurance
TrakMotive manufactures this CV axle shaft in an ISO 9001:2008 and TS 16949:2009 certified facility. The MZ-86002 is backed by a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2013 | Mazda | 3 | Automatic | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2012 | Mazda | 3 | Automatic | Front Left | OE AAR design; AAR CV Axle Shaft |
