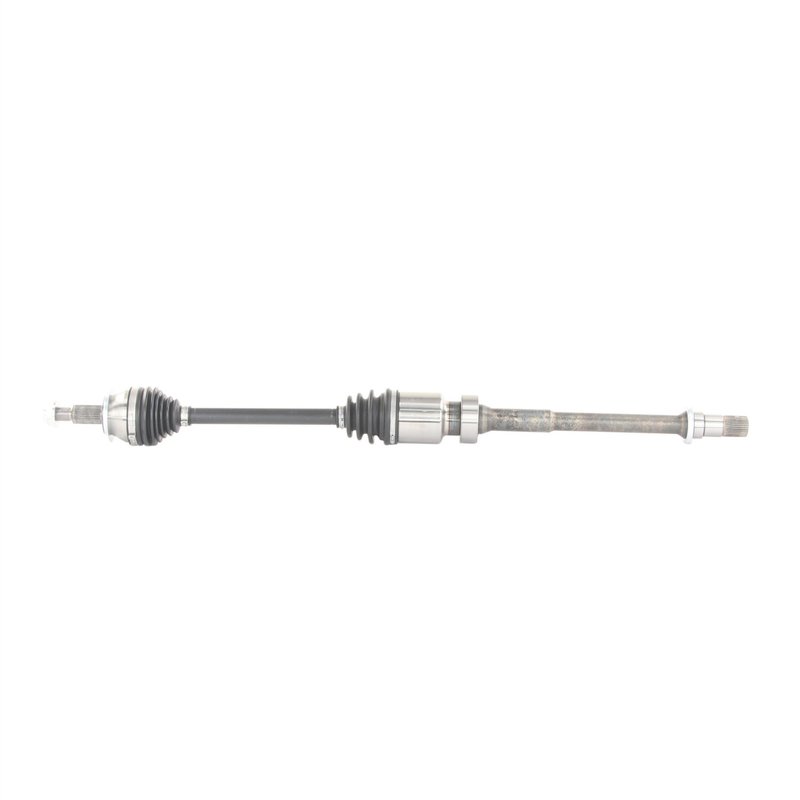

TrakMotive MZ-86004 CV Axle Shaft - Front Right
| Brand | TrakMotive MZ-86004 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Long+male |
| Inboard Joint Type | Long-male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 39.25 |
| Overall Compressed Length (mm) | 997 |
| Overall Extended Length (in) | 41.25 |
| Overall Extended Length (mm) | 1047 |
| Product line | AAR CV Axle Shaft |
| Fits | Mazda · 5 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward service fit.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Premium grade. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive MZ-86004 and NCV47077 for the same application. See all 2.
Front Right CV Axle Shaft for Mazda CX-3
TrakMotive MZ-86004 is a premium CV axle shaft for the front right position on select Mazda CX-3 models. It is built to match the OE AAR design for 2016-2020 Mazda CX-3 applications and supports smooth driveline operation in everyday driving.
Key Features
- Fits 2016-2020 Mazda CX-3, front right
- OE AAR design for the listed application
- Premium-grade CV axle shaft from TrakMotive
- Inboard joint type: long male
- Outboard joint type: conventional
- 31 inboard splines and 28 outboard splines
- Overall compressed length: 997 mm (39.25 in)
- Overall extended length: 1047 mm (41.25 in)
- No ABS tone ring included
- Axle nut thread size: M22x1.5
Product Details
This TrakMotive AAR CV Axle Shaft, part number MZ-86004, is engineered for the front right side of the Mazda CX-3 from 2016 through 2020. The axle uses a long male inboard joint and a conventional outboard joint, with spline counts and dimensions that align with the listed OE-style application. TrakMotive identifies this as a premium driveline component, and the company states its manufacturing is certified to ISO 9001:2008 and TS 16949:2009 standards.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Replacement Reasons
- Clicking or popping during turns
- Vibration during acceleration
- Grease leakage from a worn CV joint boot
- Axle shaft wear affecting front-wheel driveline smoothness
- Noise from a damaged or fatigued front right axle assembly
Installation Notes
Confirm front right fitment before ordering and verify axle nut thread size M22x1.5, hex size 32 mm, and overall length against the original part. This axle does not include an axle nut, and it does not include an ABS tone ring. ABS axles fit non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification for its manufacturing processes.
| Year | Make | Model | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Mazda | CX-3 | FWD | Automatic | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Mazda | CX-3 | FWD | Automatic | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Mazda | CX-3 | FWD | Automatic | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2017 | Mazda | CX-3 | FWD | — | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2016 | Mazda | CX-3 | FWD | — | Front Right | OE AAR design; AAR CV Axle Shaft |
