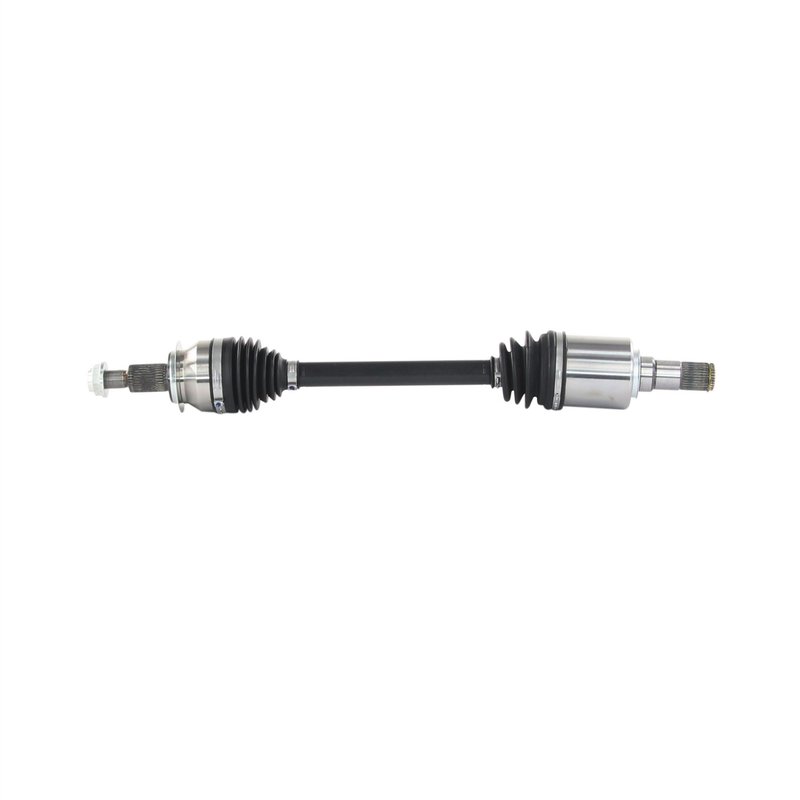

TrakMotive MZ-86005 CV Axle Shaft - Front Left
| Brand | TrakMotive MZ-86005 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.875 |
| Overall Compressed Length (mm) | 658 |
| Overall Extended Length (in) | 28.06 |
| Product line | AAR CV Axle Shaft |
| Fits | Mazda · 5 vehicles |
OE-style replacement. Built as a premium CV axle shaft for straightforward service.
Includes axle nut. Self-locking nut with a 32 mm hex size is provided.
Thermoplastic and neoprene boots. Durable boot materials help protect the joints from wear.
Cross-references TrakMotive MZ-86005 for the same application. See all 1.
TrakMotive AAR CV Axle Shaft for Mazda Front Left
TrakMotive MZ-86005 is a premium AAR CV axle shaft for front left applications on select Mazda models. It is built with a 31-spline inboard connection and 31-spline outboard connection, plus a self-locking axle nut included for the listed applications.
Key Features
- Part number MZ-86005 from TrakMotive AAR CV Axle Shaft line
- Fits 2020-2022 Mazda CX-5, front left, without cylinder deactivation
- Fits 2018 Mazda 6, front left, OE AAR design
- Fits 2017 Mazda CX-5, front left, OE AAR design
- Premium-grade axle shaft with thermoplastic inboard boot and neoprene outboard boot
- 31 inboard splines and 31 outboard splines for the listed fitments
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-locking design
- No ABS tone ring included; ABS ring tooth count is 0
Product Details
The TrakMotive AAR CV Axle Shaft MZ-86005 is a direct-fit driveline replacement for Mazda CX-5 and Mazda 6 front left applications listed above. The AAR CV axle shaft line is positioned for OE-style fitment, and this unit uses a conventional outboard joint with spline-style shaft connections to match the specified vehicle configurations. Overall compressed length is 25.875 inches and overall extended length is 28.06 inches.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Issues This Part Can Address
- Clicking or popping from a worn front left CV axle during turns
- Vibration or shudder from a damaged axle shaft assembly
- Grease leakage from deteriorated CV boots
- Excessive play caused by worn spline or joint interfaces
- Noise under acceleration from a failing driveline shaft
Installation Notes and Tips
Verify the vehicle’s front left application, model year, and notes before installation. This axle is listed for 2020-2022 Mazda CX-5 without cylinder deactivation, plus 2018 Mazda 6 and 2017 Mazda CX-5 with OE AAR design. Confirm axle nut thread size, hex size, and overall length against the removed part before assembly.
ABS tone ring is not included, and the axle is listed with no ABS ring tooth count. Inspect hub, seals, and mating components during replacement to help prevent repeat driveline noise or leakage.
Quality Assurance
TrakMotive states this AAR CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for this part.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2022 | Mazda | CX-5 | — | — | — | Front Left | Without Cylinder Deactivation; AAR CV Axle Shaft |
| 2021 | Mazda | CX-5 | — | — | — | Front Left | Without Cylinder Deactivation; AAR CV Axle Shaft |
| 2020 | Mazda | CX-5 | — | — | — | Front Left | Without Cylinder Deactivation; AAR CV Axle Shaft |
| 2018 | Mazda | 6 | Manual | — | — | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2017 | Mazda | CX-5 | — | 2.5L | L4 | Front Left | OE AAR design; AAR CV Axle Shaft |
