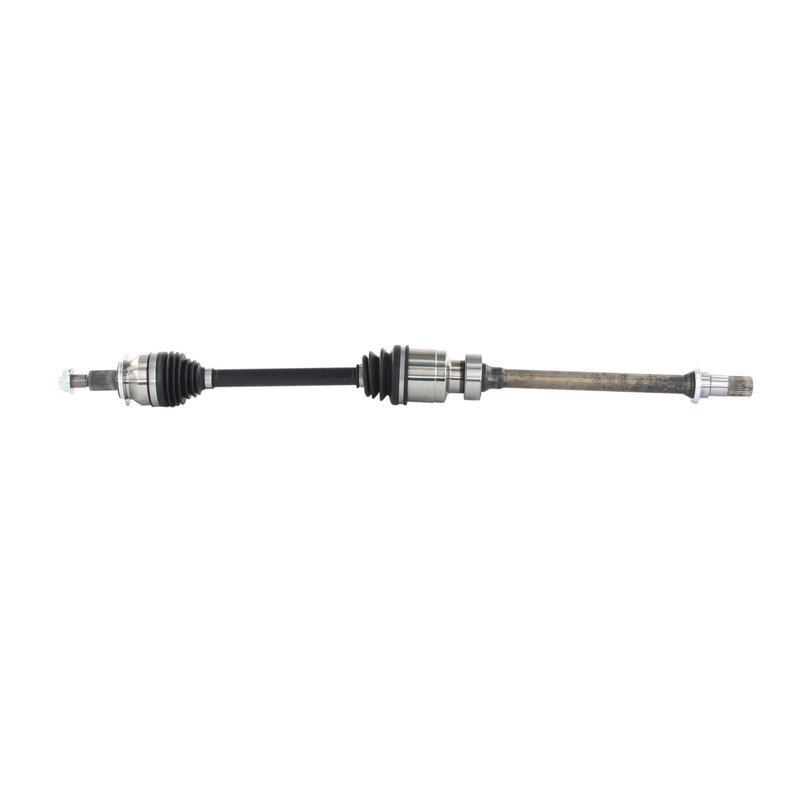

TrakMotive MZ-86009 CV Axle Shaft - Front Right
| Brand | TrakMotive MZ-86009 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 40.25 |
| Overall Compressed Length (mm) | 1022 |
| Overall Extended Length (in) | 42 |
| Product line | AAR CV Axle Shaft |
| Fits | Mazda · 4 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward installation.
Premium grade. Built with thermoplastic and neoprene boot materials.
Self-lock axle nut included. Helps simplify the install with the correct hardware.
Cross-references TrakMotive MZ-86009 for the same application. See all 1.
Front Right CV Axle Shaft for Mazda
TrakMotive MZ-86009 is a premium front right CV axle shaft for select Mazda applications, including the 2020-2021 Mazda CX-5 and 2018 Mazda 6 without cylinder deactivation, plus the 2017 Mazda CX-5 with OE AAR design. It is built with the dimensions and joint specifications needed for direct driveline service on these vehicles.
Key Features
- Premium-grade CV axle shaft for front right installation
- 31-spline inboard and 31-spline outboard shaft connection
- Long-male inboard joint with spline connection style
- Conventional outboard joint design
- Thermoplastic inboard boot and neoprene outboard boot materials
- Includes axle nut with M22x1.5 thread, 32 mm socket size, and self-locking design
- No ABS tone ring included; ABS ring tooth count is 0
- Overall compressed length: 40.25 in. Overall extended length: 42 in.
Product Details
The TrakMotive AAR CV Axle Shaft line focuses on application-specific driveline replacement parts for Mazda vehicles. MZ-86009 matches the listed front right fitments and uses the specified spline counts, joint styles, and axle nut dimensions to support proper axle replacement on the Mazda CX-5 and Mazda 6 platforms shown here. TrakMotive identifies this part as a premium-grade axle shaft and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Replacing a worn or noisy front right CV axle on a Mazda CX-5
- Restoring driveline operation on a Mazda 6 with axle vibration or clicking
- Addressing damaged splines or joint wear on the front right axle assembly
- Servicing OE AAR-design axle applications on the 2017 Mazda CX-5
Installation Notes
Verify the vehicle’s year, model, position, and cylinder deactivation configuration before installation. Confirm axle nut thread size, socket size, and spline count against the removed part. This axle is listed for front right use only on the vehicles shown, and the included axle nut should be matched to the specified M22x1.5 thread.
Quality Assurance
TrakMotive backs this AAR CV axle shaft with a limited lifetime warranty. The brand also states ISO 9001:2008 and TS 16949:2009 certified company standards for manufacturing control.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2021 | Mazda | CX-5 | FWD | — | — | — | Front Right | Without Cylinder Deactivation; AAR CV Axle Shaft |
| 2020 | Mazda | CX-5 | FWD | — | — | — | Front Right | Without Cylinder Deactivation; AAR CV Axle Shaft |
| 2018 | Mazda | 6 | — | Automatic | — | — | Front Right | Without Cylinder Deactivation; AAR CV Axle Shaft |
| 2017 | Mazda | CX-5 | FWD | — | 2.5L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
