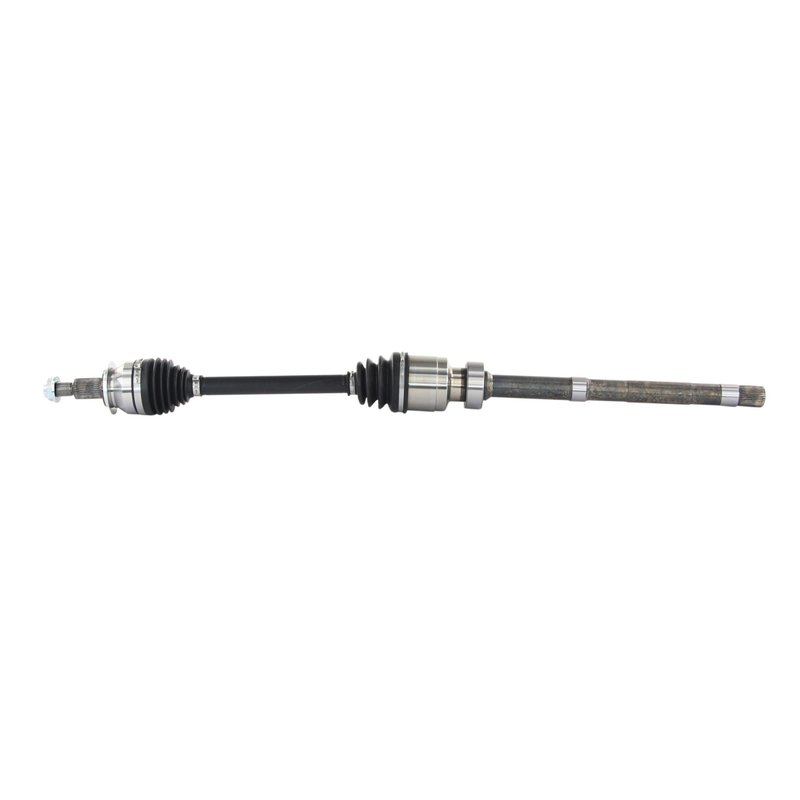

TrakMotive MZ-86013 CV Axle Shaft - Front Right
| Brand | TrakMotive MZ-86013 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 40.625 |
| Overall Compressed Length (mm) | 1032 |
| Overall Extended Length (in) | 42.375 |
| Product line | AAR CV Axle Shaft |
| Fits | Mazda · 5 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward service fit.
Premium grade. Built with thermoplastic and neoprene boots for durable joint protection.
Self-lock axle nut included. Helps simplify installation with the correct hardware on hand.
Cross-references TrakMotive MZ-86013 and NCV47069 for the same application. See all 2.
Front Right CV Axle Shaft for Mazda CX-5
The TrakMotive AAR CV Axle Shaft MZ-86013 is a premium replacement for select Mazda CX-5 front right applications. It is built for 2020-2022 Mazda CX-5 models with cylinder deactivation and 2018-2019 Mazda CX-5 models with OE AAR design.
Key Features
- Front right CV axle shaft for select Mazda CX-5 applications
- Premium grade construction
- 31 inboard splines and 31 outboard splines
- Long-male inboard joint with spline connection
- Conventional outboard joint design
- Thermoplastic inboard boot and neoprene outboard boot
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-locking design
- No ABS tone ring included; ABS ring tooth count is 0
Product Details
TrakMotive MZ-86013 is part of the AAR CV Axle Shaft line, a product line focused on application-specific driveline replacement. This axle is engineered for Mazda CX-5 front right fitment and matches the OE AAR design used on 2018-2019 vehicles, while also covering 2020-2022 models with cylinder deactivation. TrakMotive states that ABS axles fit non-ABS applications unless otherwise noted, and the company is ISO 9001:2008 and TS 16949:2009 certified.
This part cross-references Monroe Shocks & Struts (e.g., NCV47069) for the same application.
What This Part Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Axle shaft wear from damaged boots or grease loss
- Driveline noise caused by spline or joint wear
- Front right axle replacement on Mazda CX-5 models with the listed configurations
Installation Notes and Tips
Verify front right fitment by year, engine configuration, and OE AAR design before installation. Confirm axle nut thread size, hex size, and locking style match the vehicle specification. Inspect hub, seals, and surrounding suspension components for wear before installing the new axle shaft.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification for manufacturing quality control.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Mazda | CX-5 | AWD | Front Right | With Cylinder Deactivation; AAR CV Axle Shaft |
| 2021 | Mazda | CX-5 | AWD | Front Right | With Cylinder Deactivation; AAR CV Axle Shaft |
| 2020 | Mazda | CX-5 | AWD | Front Right | With Cylinder Deactivation; AAR CV Axle Shaft |
| 2019 | Mazda | CX-5 | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Mazda | CX-5 | AWD | Front Right | OE AAR design; AAR CV Axle Shaft |
