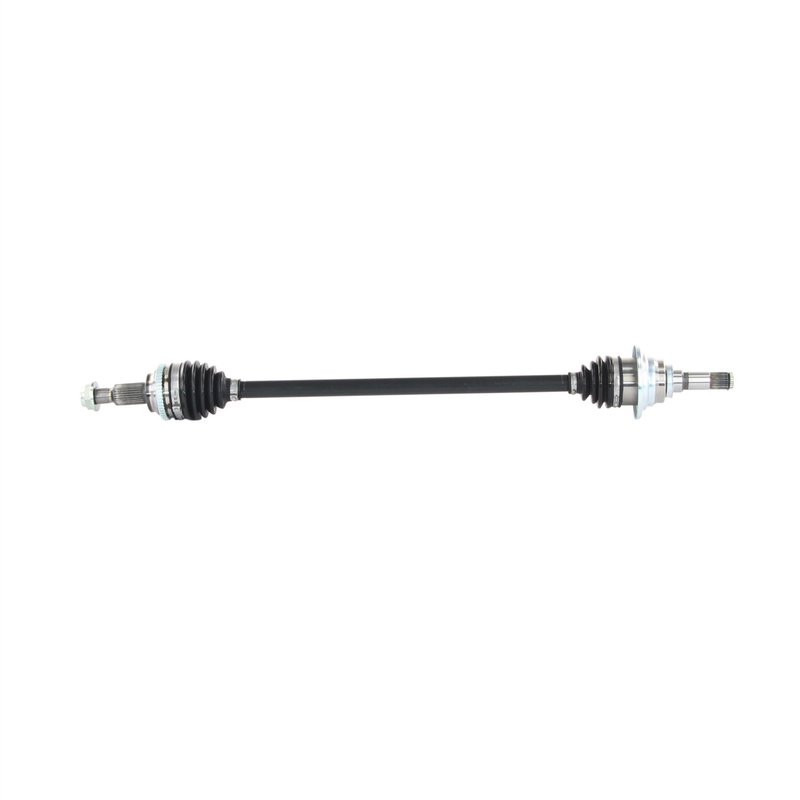

TrakMotive MZ-86015 CV Axle Shaft - Rear Left
| Brand | TrakMotive MZ-86015 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.06 |
| Overall Compressed Length (mm) | 815 |
| Product line | CV Axle Shaft |
| Fits | Mazda · 6 vehicles |
OE-style replacement. CV axle shaft with included axle nut for straightforward service.
ABS-ready design. Includes a toothed tone ring with 48 teeth for ABS applications.
Premium construction. Thermoplastic and neoprene boots help protect the joints.
Cross-references TrakMotive MZ-86015 and NCV47088 for the same application. See all 2.
Rear Left CV Axle Shaft for Mazda CX-5
TrakMotive MZ-86015 is a premium CV axle shaft for the rear left position on select 2017-2022 Mazda CX-5 models. It is built with a 22-spline inboard connection, 28-spline outboard connection, and an included axle nut for a direct replacement on the listed application.
Key Features
- Fits 2017-2022 Mazda CX-5, rear left
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- ABS tone ring included with 48-tooth toothed ring
- Axle nut included: M22x1.5, 32 mm hex, self-locking
- Overall compressed length: 32.06 in; extended length: 33.81 in
- Thermoplastic inboard boot and neoprene outboard boot materials
Product Details
This TrakMotive CV axle shaft is engineered for the rear left side of the Mazda CX-5 and matches the listed fitment for 2017-2022 vehicles. Part number MZ-86015 includes the ABS tone ring and axle nut details needed for the application, making it a focused replacement for driveline service on the rear axle. TrakMotive positions this CV axle shaft line as a premium replacement option, and the brand states its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn rear CV joint
- Vibration during acceleration or steady-speed driving
- Grease leakage from damaged axle boots
- Excessive play in the rear driveline assembly
- ABS-related service needs when the tone ring is part of the repair
Installation Notes and Tips
Confirm rear left fitment before ordering and verify axle spline count, axle nut thread size, and ABS ring details against the original part. The axle nut is included and uses a 32 mm hex with M22x1.5 threads. For best results, inspect related seals, hub components, and suspension hardware during installation on the Mazda CX-5.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing practices for this product line.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Mazda | CX-5 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Mazda | CX-5 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Mazda | CX-5 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Mazda | CX-5 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Mazda | CX-5 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Mazda | CX-5 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
