OE Quality
60-Day Returns
TrakMotivePart #: MZ-86040

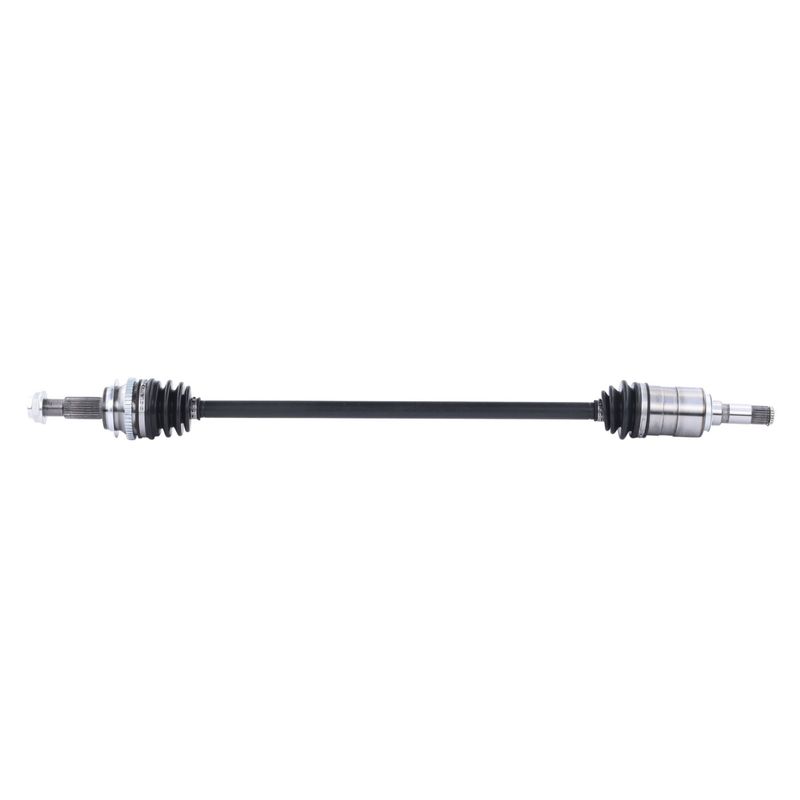

TrakMotive MZ-86040 CV Axle Shaft - Rear Right
5 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$125.35Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Rear Right
Fitment: Mazda, 3
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive MZ-86040 CV Axle Shaft - Rear Right
| Brand | TrakMotive |
|---|---|
| Part Number | MZ-86040 |
| Position | CV Axle Shaft, Rear Right |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 13/16 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 33 11/16 |
| Overall Compressed Length (mm) | 855 |
| Overall Extended Length (mm) | 908.5 |
| Overall Extended Length(In) | 35 3/4 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Mazda | 3 | Automatic | Rear Right | Standard Duty Replacement; CV Axle Shaft | ||
| 2022 | Mazda | 3 | Automatic | 2.5L | L4 | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Mazda | 3 | Automatic | 2.5L | L4 | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Mazda | 3 | Automatic | 2.5L | L4 | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Mazda | 3 | Automatic | 2.5L | L4 | Rear Right | Standard Duty Replacement; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
MZ-86040NCV47139
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
