TrakMotivePart #: MZ-86045

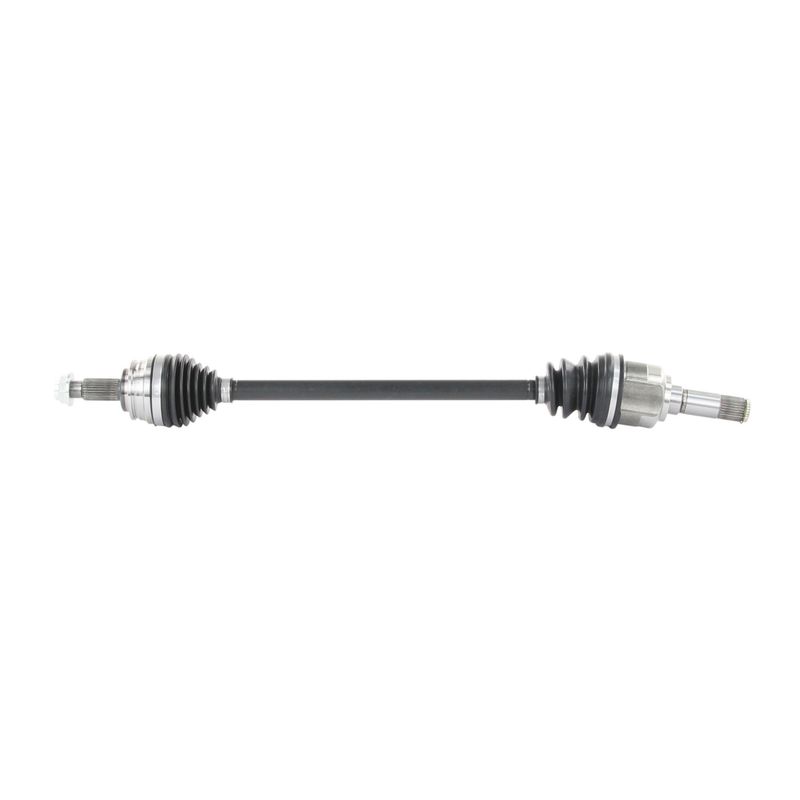

TrakMotive MZ-86045 CV Axle Shaft - Rear Left
12 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$127.18Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Rear Left
Fitment: Fiat and Mazda, 124 Spider and MX-5 Miata
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive MZ-86045 CV Axle Shaft - Rear Left
| Brand | TrakMotive |
|---|---|
| Part Number | MZ-86045 |
| Position | CV Axle Shaft, Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M22*1.5 |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 30 1/4 |
| Overall Compressed Length (mm) | 768 |
| Overall Extended Length (mm) | 806.5 |
| Overall Extended Length(In) | 31 3/4 |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Mazda | MX-5 Miata | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Mazda | MX-5 Miata | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Mazda | MX-5 Miata | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Fiat | 124 Spider | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Mazda | MX-5 Miata | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Fiat | 124 Spider | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Mazda | MX-5 Miata | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Fiat | 124 Spider | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Mazda | MX-5 Miata | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Fiat | 124 Spider | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Mazda | MX-5 Miata | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2016 | Mazda | MX-5 Miata | Automatic | Rear Left | Standard Duty Replacement; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
MZ-86045
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
