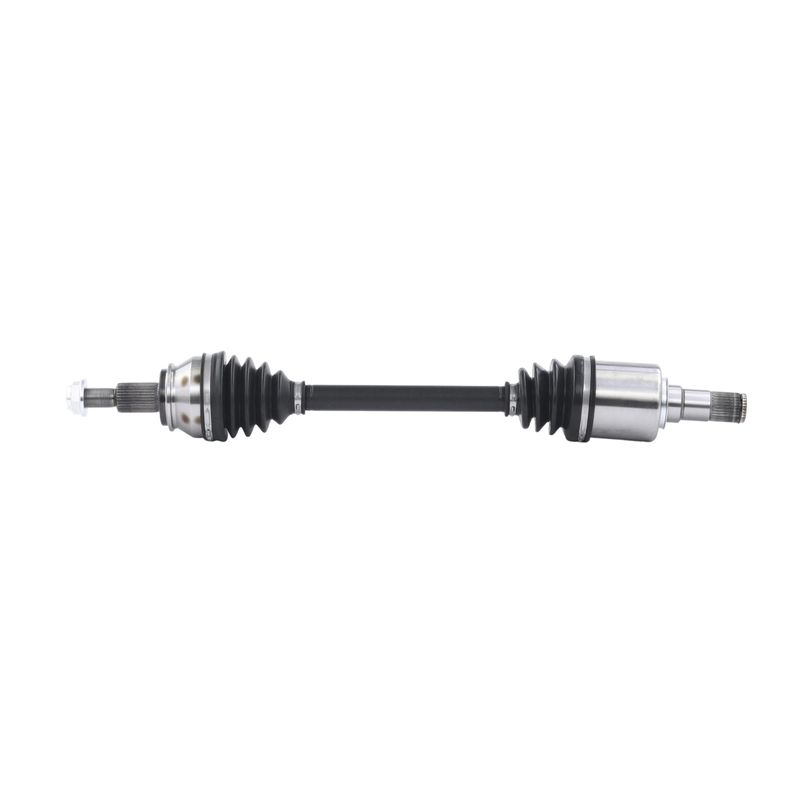

TrakMotive MZ-86051 CV Axle Shaft - Front Left
| Brand | TrakMotive MZ-86051 |
|---|---|
| Position | Front Left |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 37 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 31 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.44 |
| Overall Compressed Length (mm) | 671 |
| Overall Extended Length (in) | 28.44 |
| Overall Extended Length (mm) | 722 |
| Product line | AAR CV Axle Shaft |
| Fits | Mazda · 1 vehicle |
AAR design. Application-specific CV axle shaft for driveline replacement service.
Neoprene boots. Boot material helps protect the joints from contamination and wear.
Axle nut included. Self-lock nut with M22x1.5 thread and 32 mm hex size.
Cross-references TrakMotive MZ-86051 for the same application. See all 1.
Overview
The TrakMotive MZ-86051 is an AAR CV axle shaft for the front left position on the 2023 Mazda CX-50. It is built for non-ABS applications unless otherwise noted and includes a self-lock axle nut for a direct replacement-style service job.
Key Features
- AAR CV axle shaft for driveline service
- Fits 2023 Mazda CX-50, front left
- Neoprene boot material on both joints
- 31-spline inboard and outboard connection design
- Includes axle nut with M22x1.5 thread size
- Premium grade construction
Detailed Description
TrakMotive MZ-86051 is a CV axle shaft built around an AAR design for the 2023 Mazda CX-50, front left. The shaft uses a conventional outboard joint, a male inboard joint with spline connection, and 31 splines at both ends for a precise driveline interface. Neoprene boot material helps protect the joints, while the included axle nut features a hex head, self-lock design, and 32 mm hex size.
This part cross-references TrakMotive MZ-86051 for the same application. The AAR CV axle shaft line focuses on application-specific driveline replacement parts with OE-style fitment details and service-ready hardware specifications. For Mazda CX-50 axle shaft replacement searches, this part matches the front left configuration listed in the fitment data.
What It Helps Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from deteriorated boot material
- Driveline noise caused by spline wear or joint wear
- Loss of smooth power transfer at the front axle
Installation Notes
Verify the vehicle is a 2023 Mazda CX-50, front left, and confirm non-ABS application details before installation. The axle nut is included, and the axle uses a 32 mm hex size with M22x1.5 thread specification. Match the spline count and compressed length to the original part before assembly.
Quality Assurance
TrakMotive lists this CV axle shaft with a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, supporting consistent manufacturing and quality control standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Mazda | CX-50 | Front Left | OE AAR design; AAR CV Axle Shaft |
