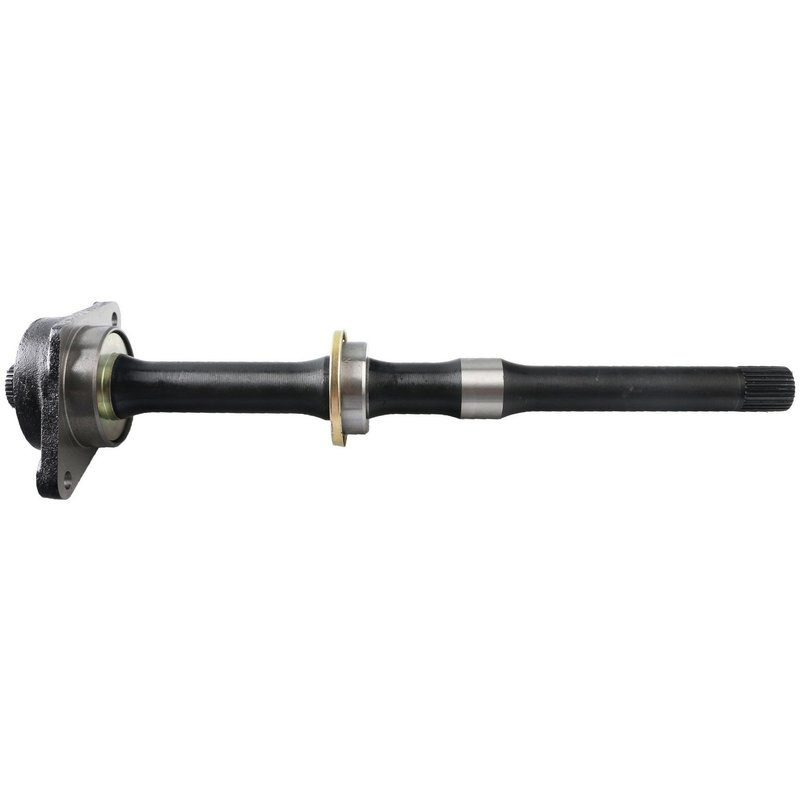

TrakMotive NI-3503 CV Intermediate Shaft - Front Right
| Brand | TrakMotive NI-3503 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Included | Yes |
| Boot Material | Neoprene |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 30 |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 19.9 |
| Overall Compressed Length (mm) | 505.5 |
| Product line | CV Intermediate Shaft |
| Fits | INFINITI · 1 vehicle |
New replacement part. Built as a fresh CV intermediate shaft for dependable service.
Neoprene boot material. Helps protect the shaft from dirt and moisture.
Axle nut included. Conveniently supplied with the hardware needed for installation.
Cross-references TrakMotive NI-3503 and 391003JA0B for the same application. See all 2.
CV Intermediate Shaft for Infiniti JX35
TrakMotive NI-3503 is a new CV intermediate shaft for the front right position on the 2013 Infiniti JX35. It is built for direct driveline service with the correct spline counts, shaft length, and included axle nut for the listed application.
Key Features
- Fits 2013 Infiniti JX35, front right
- New CV intermediate shaft for driveline repair
- Male inboard shaft connection style
- Conventional outboard shaft connection style
- 29 inboard splines and 30 outboard splines
- Overall compressed length: 19.9 in. (505.5 mm)
- Neoprene boot material
- Axle nut included; hex head type
- No ABS tone ring included
Product Details
TrakMotive NI-3503 is part of the CV Intermediate Shaft line, a driveline-focused product line for vehicles that need precise shaft geometry and OE-style fitment. This intermediate shaft is specified for the 2013 Infiniti JX35 front right application and cross-references OE part number 391003JA0B for the same use. The design includes the correct spline configuration, compressed length, and connection styles to support proper installation in the listed vehicle.
TrakMotive manufactures this part as a new component and backs it with ISO 9001:2008 and TS 16949:2009 certified production standards. The NI-3503 part number is also useful when searching for an Infiniti JX35 front right CV intermediate shaft replacement or a driveline shaft assembly for the 2013 Infiniti JX35.
Common Repair Uses
- Replacing a worn or damaged front right intermediate shaft
- Restoring driveline operation after spline or shaft wear
- Addressing vibration or noise related to shaft wear
- Repairing a leaking or deteriorated CV boot area
- Replacing a shaft with incorrect length or connection style
Installation Notes
Verify the vehicle is a 2013 Infiniti JX35 and confirm the front right position before ordering. Match the 29-spline inboard and 30-spline outboard configuration, along with the 19.9 in. compressed length, to the original part. Use the included axle nut during installation and inspect related driveline components, seals, and mounting points for wear before reassembly.
Quality Assurance
TrakMotive NI-3503 is produced by an ISO 9001:2008 and TS 16949:2009 certified company and includes a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2013 | INFINITI | JX35 | AWD | Front Right | Updated Design; Intermediate Shaft; CV Intermediate Shaft |
