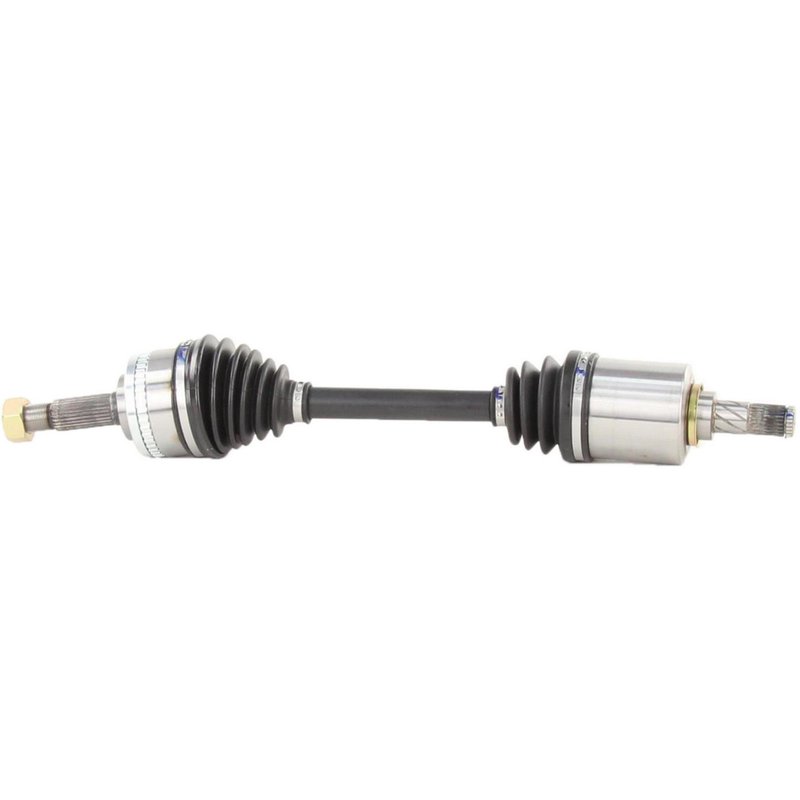

TrakMotive NI-8005 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft NI-8005 for Infiniti G20

The TrakMotive CV Axle Shaft NI-8005 is designed specifically for the Infiniti G20, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Infiniti G20 models
• Includes ABS tone ring with 42 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with M24*1.5 thread size
• Overall compressed length of 24.45 inches (621 mm)
• Inboard joint type: Male with 25 splines
• Outboard joint type: Conventional with 27 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. This line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts to provide a complete replacement solution. The NI-8005 model maintains these standards, ensuring proper fitment and function for the Infiniti G20.

Technical Specifications and Features

The NI-8005 CV axle shaft is engineered with a 42-tooth ABS ring that is toothed and includes the ABS tone ring for accurate wheel speed sensor readings. The axle nut is a hex head type, measuring 1 3/8 inches (34.64 mm) across the flats, with a height of 18 mm (5/7 inches) and a length of 40 mm (1 4/7 inches). The axle nut uses a standard locking type and is included with the shaft. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the CV joint. The inboard joint features a male connection style with 25 splines, while the outboard joint is conventional with 27 splines. The overall compressed length of the shaft is 24.45 inches (621 mm), ensuring proper fit within the driveline assembly.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Infiniti G20 vehicles
• Restoring proper ABS sensor function with included ABS tone ring
• Resolving axle nut thread or fitment issues with included hardware
• Addressing torn or degraded CV boots to prevent joint contamination
• Eliminating driveline vibrations caused by faulty axle components

Installation Notes and Tips

When installing the TrakMotive NI-8005 CV axle shaft, ensure the axle nut is torqued to manufacturer specifications using the included hex head nut. Verify the ABS tone ring is properly seated to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation and confirm the male inboard joint and conventional outboard joint align correctly with the vehicle’s driveline. Proper lubrication and clean mating surfaces will aid in a smooth installation process.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. The inclusion of the ABS tone ring and axle nut ensures a comprehensive replacement part. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable vehicle operation.
