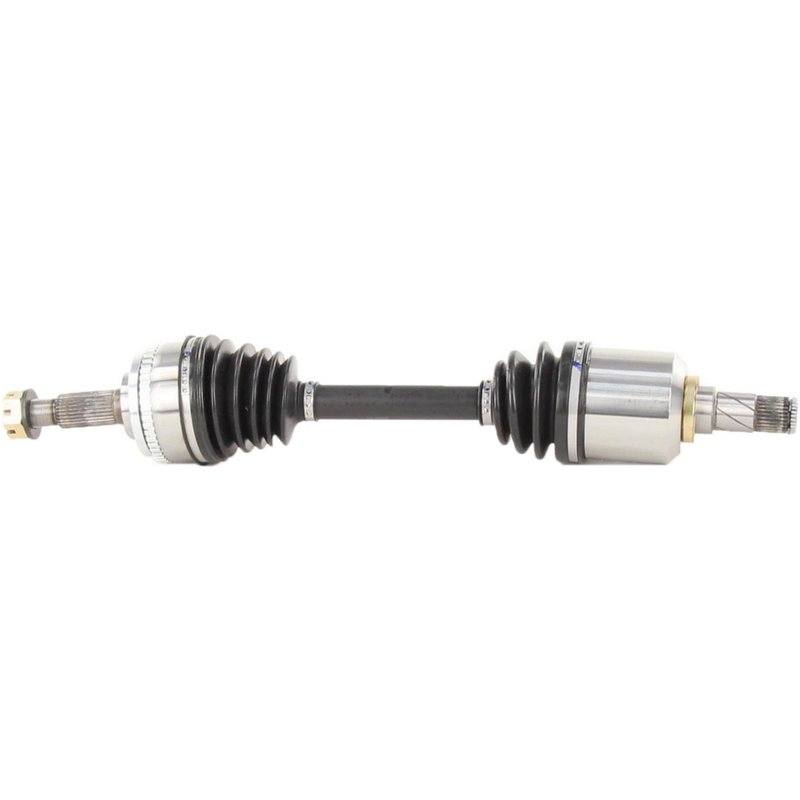

TrakMotive NI-8008 CV Axle Shaft - Front Left
| Brand | TrakMotive NI-8008 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 46 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 2/3 |
| Axle Nut Height (mm) | 17.5 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 3/5 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.37 |
| Overall Compressed Length (mm) | 619 |
| Product line | CV Axle Shaft |
| Fits | Nissan · 3 vehicles |
OE-style replacement. New CV axle shaft for the listed driveline application.
ABS ring included. 46-tooth toothed ring and tone ring details are specified.
Certified manufacturing. Produced by an ISO 9001 and TS 16949 certified company.
Cross-references Anchor 9705, Cardone New 66-6108 and Cardone Reman 60-6108 for the same application. See all 15.
Overview
TrakMotive NI-8008 is a new CV axle shaft for select Nissan Maxima applications. It is built for front left fitment on non-LSD vehicles and includes the axle nut and ABS tone ring details needed for the listed application.
Key Features
- Fits 1992-1994 Nissan Maxima, front left, w/o limited slip differential.
- New CV axle shaft with 29 inboard splines and 29 outboard splines.
- Neoprene boot material for the CV joint assembly.
- Includes a toothed ABS ring with 46 teeth and an ABS tone ring.
- Axle nut included with M24 x 1.5 thread, hex head, and cotter pin locking type.
- Overall compressed length: 24.37 in (619 mm).
Product Details
This TrakMotive CV axle shaft, part number NI-8008, is specified for 1992-1994 Nissan Maxima front left applications without limited slip differential. The axle uses a conventional outboard joint, a male inboard connection, and a neoprene boot to support driveline operation in the listed fitment. The included ABS ring and tone ring details make it important to match the vehicle’s braking and sensor setup before installation. NI-8008 is a direct replacement style axle for the stated application, and the part number NI-8008 should be verified against the vehicle’s original configuration.
Common Replacement Needs
- Clicking or popping during turns from a worn CV joint.
- Vibration or shudder during acceleration from axle wear.
- Boot damage that can lead to grease loss and contamination.
- ABS warning concerns when the tone ring specification does not match.
- Driveline noise caused by spline or joint wear.
Installation Notes
Confirm front left fitment, model year, and the absence of limited slip differential before installation. Match the axle nut thread size, hex size, and locking style to the original hardware specification. Because ABS axles fit non-ABS applications unless otherwise noted, verify the vehicle’s sensor and ring requirements for this application. Professional installation is recommended for proper torque and driveline alignment.
Quality Assurance
TrakMotive lists this axle shaft as a new component from an ISO 9001:1007 and TS 16949:2009 certified company. The part is covered by a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1994 | Nissan | Maxima | Automatic | Front Left | w/o Limited Slip Differential; CV Axle Shaft |
| 1993 | Nissan | Maxima | Automatic | Front Left | w/o Limited Slip Differential; CV Axle Shaft |
| 1992 | Nissan | Maxima | — | Front Left | w/o Limited Slip Differential; CV Axle Shaft |
