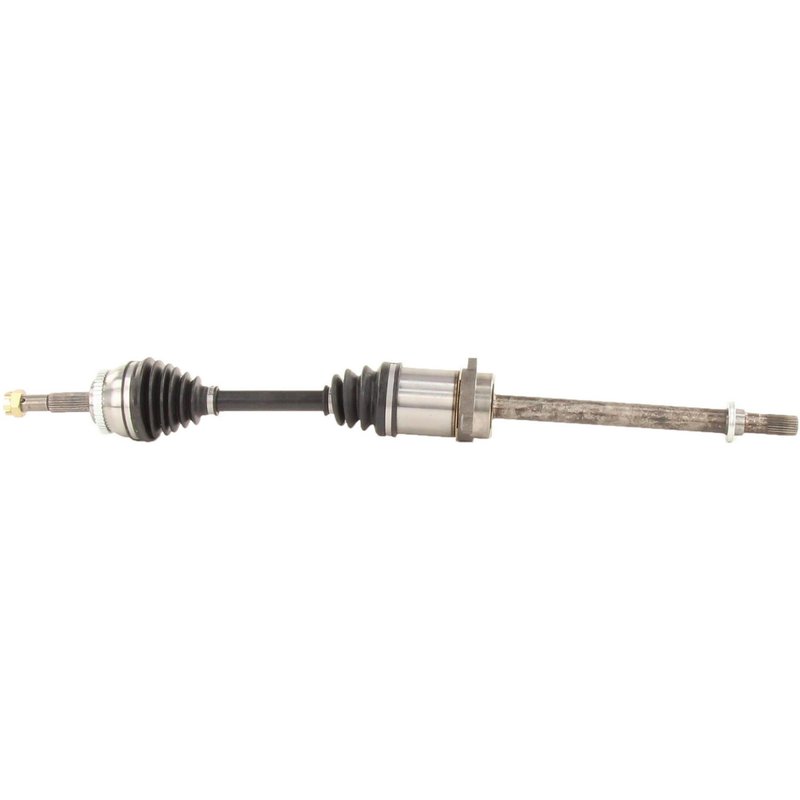

TrakMotive NI-8011 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8011

The TrakMotive CV Axle Shaft NI-8011 is engineered for reliable driveline performance in Nissan vehicles. Designed specifically for Nissan 200SX, NX, and Sentra models, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Nissan 200SX, NX, and Sentra
• Includes ABS tone ring with 42 toothed ring teeth
• Neoprene boot material for enhanced protection
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 36.34 inches (923 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line features components with precise spline counts and durable materials, such as neoprene boots and ABS tone rings, to maintain vehicle safety and driveline integrity. The NI-8011 model exemplifies this approach with its 25-spline inboard and outboard joints and integrated ABS components.

Technical Specifications and Features

This CV axle shaft includes a 42-tooth ABS ring with a toothed design and an ABS tone ring included for accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It features an M22 x 1.5 thread size and a cotter pin locking type for secure installation. The neoprene boot material provides resistance to wear and environmental factors, while the inboard and outboard joints use male and conventional connection styles respectively, each with 25 splines for a secure fit.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Nissan 200SX, NX, and Sentra
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Ensures secure wheel attachment with included axle nut and cotter pin

Installation Notes and Tips

• Verify vehicle compatibility with Nissan 200SX, NX, or Sentra before installation
• Use proper torque specifications for the M22 x 1.5 axle nut and secure with cotter pin
• Inspect surrounding components such as wheel bearings and suspension parts during replacement
• Ensure ABS sensor alignment with the toothed ABS ring for accurate readings

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8011 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and cotter pin to facilitate proper installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Nissan 200SX, NX, and Sentra vehicles.
