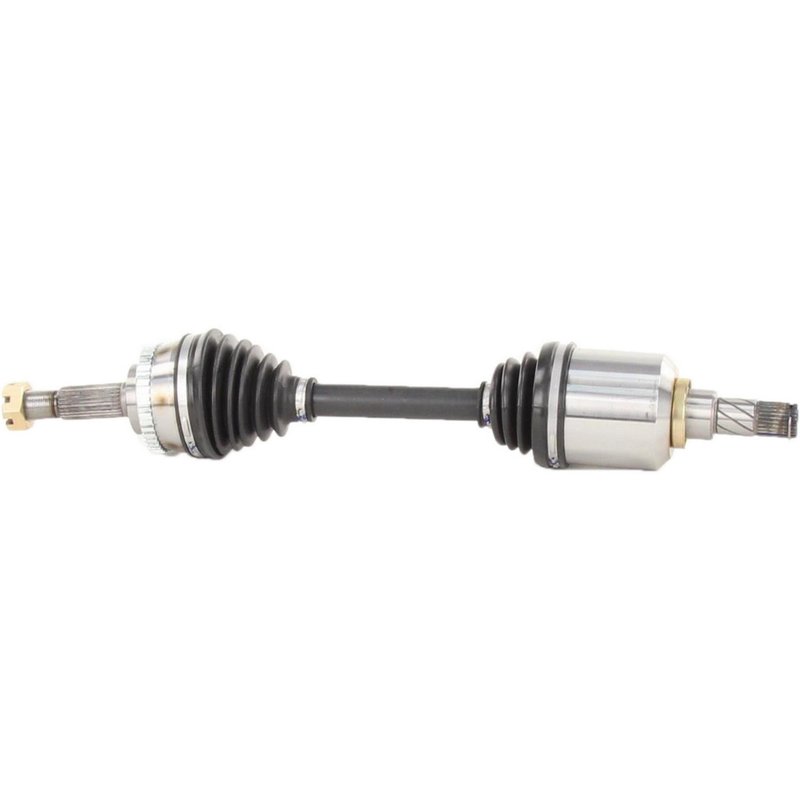

TrakMotive NI-8015 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft NI-8015 for Nissan Altima

The TrakMotive CV Axle Shaft NI-8015 is engineered specifically for Nissan Altima models, providing reliable driveline performance. Designed as a new replacement part, this CV axle shaft ensures proper fit and function for your vehicle's front-wheel-drive system.

• Compatible with Nissan Altima models
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 24.25 inches (616 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This line includes CV axle shafts designed with attention to critical attributes such as ABS ring type and tooth count, boot material, and joint types to ensure compatibility and durability. The NI-8015 model exemplifies this approach by incorporating a toothed ABS ring and neoprene boots to maintain performance and longevity in Nissan Altima vehicles.

Technical Specifications and Features

The NI-8015 CV axle shaft features a 44-tooth ABS ring with a toothed design, which is included to maintain accurate wheel speed sensor readings. The axle nut is a hex head type measuring 35.5 mm (1 2/5 inches) across flats, with a height of 17.5 mm (2/3 inch) and a length of 41 mm (1 3/5 inches). It uses an M24 x 1.5 thread size and is secured with a cotter pin locking mechanism for added safety. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joints. Both inboard and outboard joints are designed with 27 splines, with the inboard joint featuring a male connection style and the outboard joint a conventional style. The overall compressed length of the shaft is 24.25 inches (616 mm), ensuring proper fitment within the Nissan Altima's driveline assembly.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Nissan Altima vehicles
• Restoring proper ABS sensor function due to faulty or missing tone rings
• Eliminating axle vibrations caused by joint wear or boot failure
• Addressing axle nut loosening issues with included cotter pin locking nuts
• Preventing grease leakage and joint contamination with durable neoprene boots

Installation Notes and Tips

When installing the TrakMotive NI-8015 CV axle shaft, ensure the ABS tone ring is properly aligned with the wheel speed sensor for accurate readings. Use the included hex head axle nut and secure it with the cotter pin locking mechanism to prevent loosening during operation. Verify that the neoprene boots are seated correctly to avoid premature wear. It is recommended to inspect related suspension and driveline components during installation to ensure overall system integrity.

Quality Assurance and Warranty

This CV axle shaft is a new, remanufactured part designed to meet or exceed OEM standards for fit and function. The inclusion of a toothed ABS ring and durable neoprene boots reflects attention to quality and longevity. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable vehicle operation.
