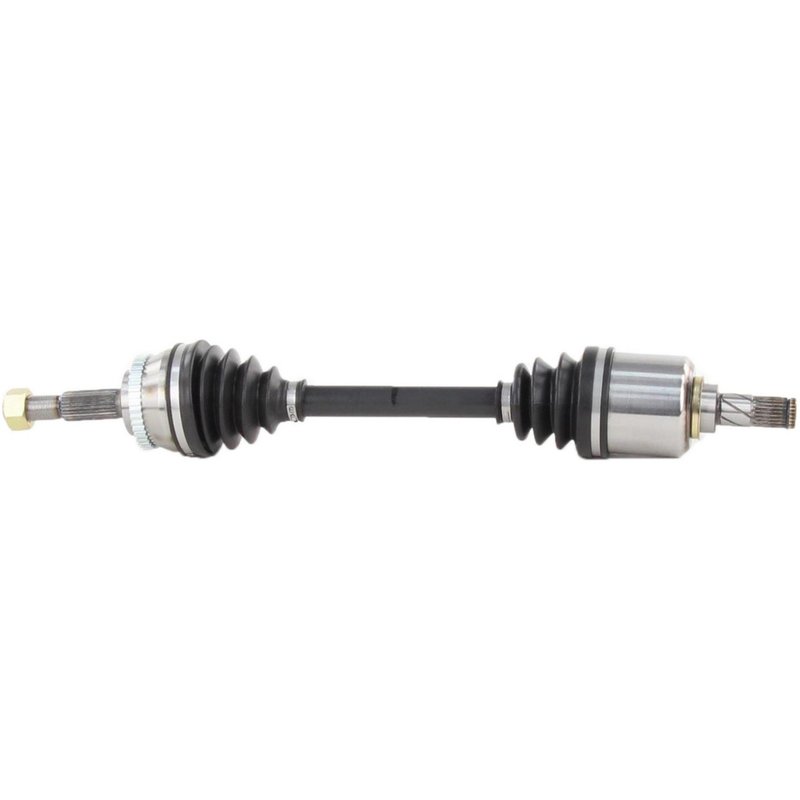

TrakMotive NI-8021 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft NI-8021

The TrakMotive CV Axle Shaft NI-8021 is engineered for reliable driveline performance in Nissan vehicles. Designed specifically for Nissan 200SX, NX, and Sentra models, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Nissan 200SX, NX, and Sentra
• Includes ABS tone ring with 42 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex axle nut with cotter pin locking mechanism included
• Overall compressed length of 24.69 inches (627 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering, including features such as ABS tone rings and durable neoprene boots, to maintain driveline integrity and vehicle safety. The NI-8021 model is part of this line, offering a direct replacement solution for Nissan vehicles requiring a reliable CV axle shaft.

Technical Specifications and Features

This CV axle shaft features a 42-tooth ABS ring with a toothed design, which is included to maintain accurate wheel speed sensor readings. The axle nut is a hex type measuring 1 1/4 inches (31.6 mm) across flats, with a height of 5/7 inches (17.8 mm) and a length of 2 1/7 inches (54.7 mm). It uses an M22x1.5 thread size and secures with a cotter pin locking mechanism for added safety. The neoprene boot material provides resistance to wear and environmental factors, extending the life of the joint. Both inboard and outboard joints have 25 splines, with the inboard joint featuring a male connection style and the outboard joint a conventional style. The overall compressed length of the shaft is 24.69 inches (627 mm), ensuring proper fitment in compatible Nissan models.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Nissan 200SX, NX, and Sentra
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive NI-8021 CV axle shaft, ensure the ABS tone ring is properly aligned with the wheel speed sensor for accurate readings. Use the included hex axle nut and cotter pin to secure the shaft firmly to the hub assembly. Verify spline engagement on both inboard and outboard joints to prevent premature wear. It is recommended to inspect related suspension and driveline components during installation for optimal performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8021 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a neoprene boot for enhanced durability and an ABS tone ring to maintain vehicle safety systems. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable operation in Nissan 200SX, NX, and Sentra vehicles.
