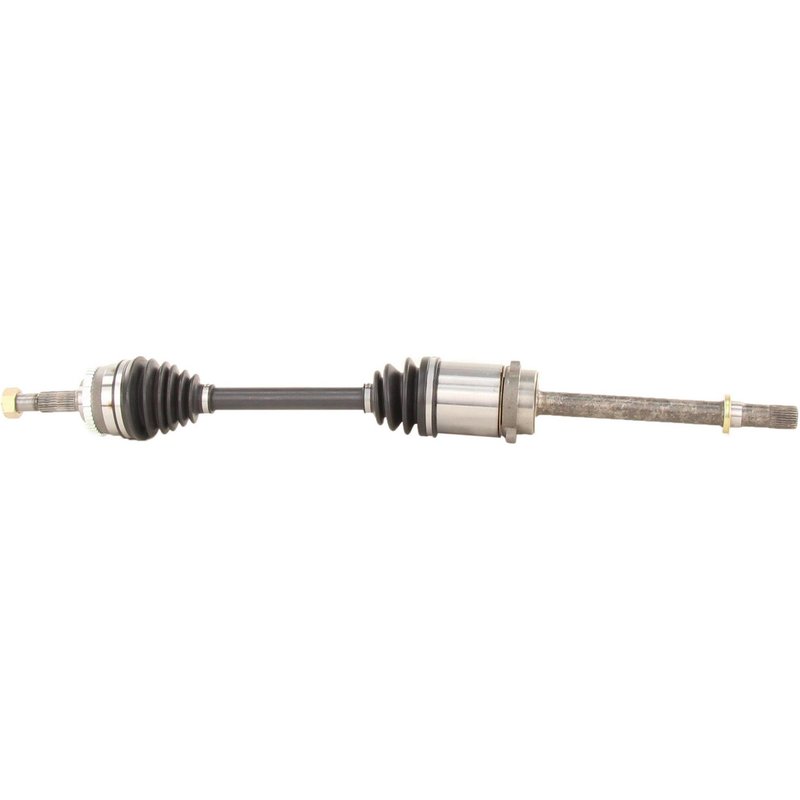

TrakMotive NI-8023 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8023 for Nissan Altima

The TrakMotive CV Axle Shaft NI-8023 is engineered specifically for Nissan Altima models, providing reliable driveline performance. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Nissan Altima models
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with M24*1.5 thread size
• Overall compressed length of 37.36 inches (949 mm)
• Inboard joint type: Male with 29 splines
• Outboard joint type: Conventional with 27 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet or exceed OEM specifications. This CV Axle Shaft NI-8023 features a robust design with a neoprene boot to resist wear and environmental damage, and includes a standard locking hex axle nut for secure installation. The inclusion of a toothed ABS tone ring supports proper ABS sensor function, critical for vehicle safety systems.

Technical Specifications and Features

This CV axle shaft is constructed with a 44-tooth ABS ring that is toothed and included with the assembly, ensuring compatibility with the Nissan Altima's anti-lock braking system. The axle nut is a hex head type, measuring 1 3/8 inches (34.64 mm) across flats, with a height of 18 mm (5/7 inch) and a length of 40 mm (1 4/7 inch). The axle nut uses a standard locking mechanism and a thread size of M24*1.5. The inboard joint is male type with 29 splines, while the outboard joint is conventional with 27 splines, providing a secure and precise connection to the drivetrain. The neoprene boot material offers resistance to heat, oil, and road contaminants, extending the service life of the joint.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Nissan Altima
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates clicking or popping noises during turns caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Addresses vibration or driveline imbalance issues related to axle shaft failure

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the axle nut thread size (M24*1.5) matches the vehicle specifications. Use the included hex head axle nut and torque to manufacturer specifications to maintain proper locking. Inspect the ABS tone ring and sensor alignment during installation to ensure accurate ABS function. It is recommended to replace axle nuts and related hardware as needed to maintain safety and performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8023 is a new, remanufactured-free component designed to meet OEM standards for fit and function. The neoprene boot and ABS tone ring inclusion support long-term reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure consistent performance in Nissan Altima driveline applications.
