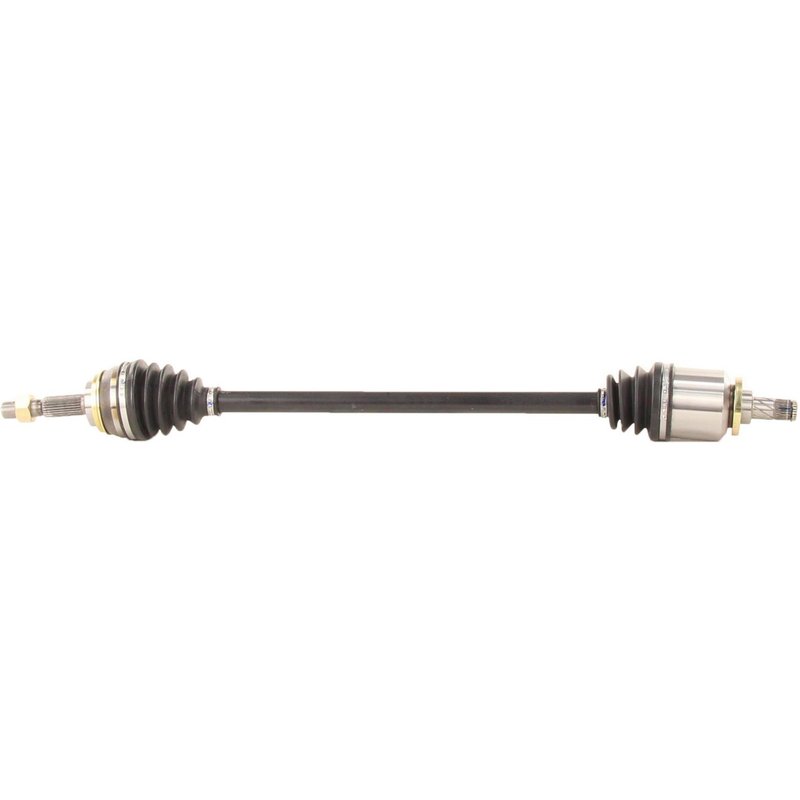

TrakMotive NI-8026 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8026 for Nissan Sentra

The TrakMotive CV Axle Shaft NI-8026 is designed specifically for Nissan Sentra models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Nissan Sentra models
• Includes axle nut with cotter pin locking type
• Neoprene boot material for enhanced durability
• Hex head axle nut measuring 1 1/4 inch (31.6 mm)
• Overall compressed length of 35.75 inches (908 mm)
• Male inboard joint with 24 splines and conventional outboard joint with 25 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components engineered for precise fit and function. This line emphasizes compatibility with specific vehicle makes and models, such as the Nissan Sentra, ensuring that each axle shaft meets OEM specifications for joint types, spline counts, and boot materials.

Technical Specifications and Features

The NI-8026 CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, helping to protect the joint from contaminants. The inboard joint is a male type with 24 splines, while the outboard joint is conventional with 25 splines, designed to match the Nissan Sentra's driveline requirements. The included axle nut has a hex head measuring 1 1/4 inches (31.6 mm) and a height of 5/7 inches (17.8 mm), with a length of 2 1/7 inches (54.7 mm). It uses an M22*1.5 thread size and secures with a cotter pin locking mechanism for added safety. The overall compressed length of the axle shaft is 35.75 inches (908 mm), ensuring proper fitment within the vehicle's suspension and drivetrain assembly.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Nissan Sentra vehicles
• Elimination of clicking or popping noises during turns caused by joint wear
• Resolution of vibration or shuddering issues related to axle imbalance or joint failure
• Repair of torn or leaking CV boots to prevent grease loss and contamination
• Restoration of driveline integrity after axle shaft bending or breakage

Installation Notes and Tips

When installing the TrakMotive NI-8026 CV axle shaft, ensure the axle nut is torqued to the manufacturer’s specifications and secured with the included cotter pin to prevent loosening. Verify that the neoprene boot is properly seated and free of damage to maintain joint protection. It is recommended to inspect related suspension and drivetrain components during installation for any signs of wear or damage.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards for fit and function. The inclusion of a high-quality neoprene boot and precision-machined splines supports long service life. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
