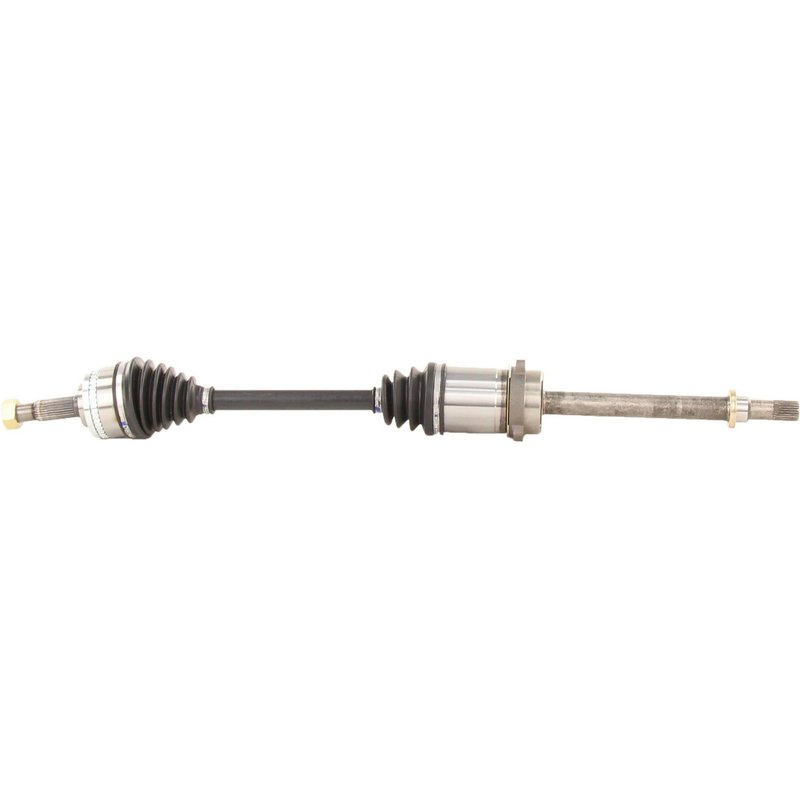

TrakMotive NI-8027 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8027 for Infiniti G20

The TrakMotive CV Axle Shaft NI-8027 is designed specifically for the Infiniti G20, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Infiniti G20 models
• Includes ABS tone ring with 42 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with M24*1.5 thread size
• Overall compressed length of 37.32 inches (948 mm)
• Inboard joint type: Male with 25 splines
• Outboard joint type: Conventional with 27 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. The NI-8027 model is part of this line, engineered to meet OEM specifications for the Infiniti G20. This ensures proper fitment and performance, maintaining the vehicle's handling and safety standards.

Technical Specifications and Features

This CV axle shaft includes a toothed ABS ring with 42 teeth, which is essential for accurate wheel speed sensor readings. The included ABS tone ring supports the vehicle's anti-lock braking system functionality. The axle nut features a hex head design measuring 1 3/8 inches (34.64 mm) across flats, with a height of 18 mm (5/7 inch) and a length of 40 mm (1 4/7 inch). The nut uses a standard locking type and a thread size of M24*1.5, ensuring secure attachment.

The boot is made from neoprene, a material known for its resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint is a male type with 25 splines, while the outboard joint is conventional with 27 splines, both designed to provide smooth power transfer and durability. The overall compressed length of 37.32 inches (948 mm) matches the OEM specifications for the Infiniti G20.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Infiniti G20
• Restores proper ABS sensor function with included tone ring
• Eliminates clicking or popping noises during turns caused by joint wear
• Prevents grease leaks and contamination with durable neoprene boot
• Ensures secure wheel attachment with included hex axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft NI-8027 on an Infiniti G20, verify the spline counts and joint types match the vehicle’s specifications. Use the included hex axle nut with the correct torque settings to ensure proper locking. Inspect the ABS tone ring alignment to maintain accurate sensor readings. It is recommended to check the condition of surrounding components such as wheel bearings and suspension parts during installation.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. The use of high-quality materials like neoprene for the boot and precision-machined splines ensures long service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable performance in Infiniti G20 driveline repairs.
