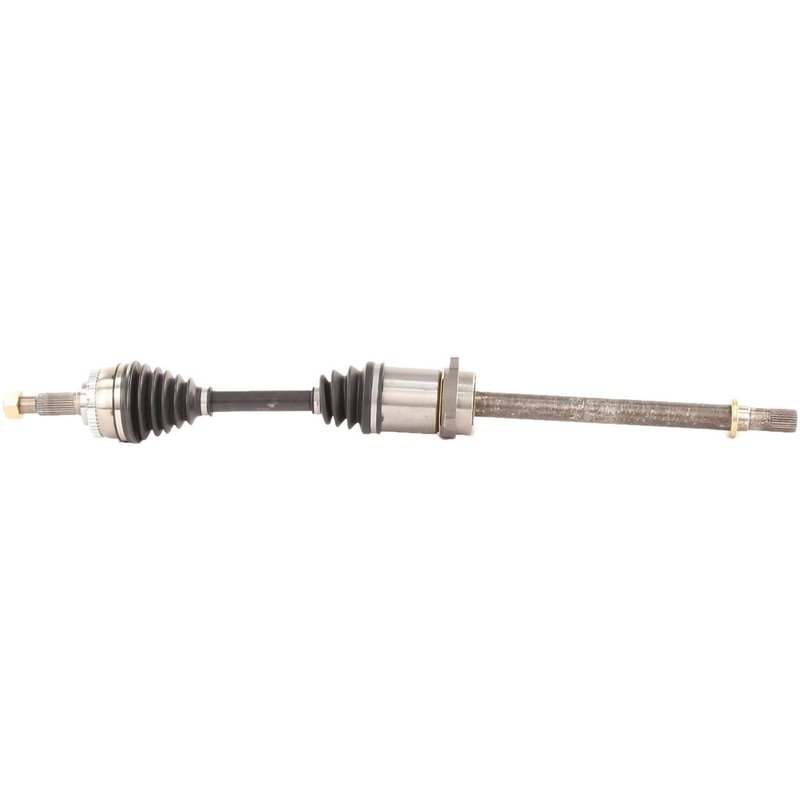

TrakMotive NI-8036 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft NI-8036

The TrakMotive CV Axle Shaft NI-8036 is engineered for reliable driveline performance in select INFINITI and Nissan vehicles. Designed specifically for models like the INFINITI I30 and Nissan Maxima, this new CV axle shaft ensures precise fitment and durability.

• Compatible with INFINITI I30 and Nissan Maxima
• Includes ABS tone ring with 46 toothed abs ring teeth
• Equipped with a neoprene boot for enhanced protection
• Comes with a hex head axle nut (M24*1.5 thread size) included
• Overall compressed length of 37.8 inches (960 mm)
• Features male inboard joint and conventional outboard joint types
• 29 splines on both inboard and outboard shafts

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering, including correct spline counts and joint types, to ensure compatibility and performance in driveline and axle systems. The NI-8036 model is part of this line, offering a complete assembly with included axle nut and ABS tone ring for vehicles requiring these specific components.

Technical Specifications and Features

The NI-8036 CV axle shaft features a 46-tooth ABS ring with a toothed design, which is included to maintain proper ABS sensor function. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut included is a standard locking type with a hex head measuring 1 3/8 inches (34.64 mm) across flats, 5/7 inches (18 mm) in height, and 1 4/7 inches (40 mm) in length, threaded M24*1.5. Both the inboard and outboard shafts have 29 splines, with the inboard joint designed as male and the outboard joint conventional, ensuring proper connection and torque transfer.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on INFINITI I30 and Nissan Maxima
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included axle nut

Installation Notes and Tips

When installing the NI-8036 CV axle shaft, verify compatibility with the vehicle’s make and model, specifically INFINITI I30 and Nissan Maxima. Use the included hex head axle nut with the specified M24*1.5 thread size and torque to manufacturer specifications. Inspect the ABS tone ring and sensor alignment during installation to maintain ABS functionality. Ensure the neoprene boot is properly seated to prevent premature wear or contamination.

Quality Assurance and Warranty

This TrakMotive CV Axle Shaft NI-8036 is a new, not remanufactured, component built to meet or exceed OEM standards. It undergoes quality checks to ensure durability and fitment accuracy. Warranty details are provided by the manufacturer and typically cover defects in materials and workmanship under normal use.
