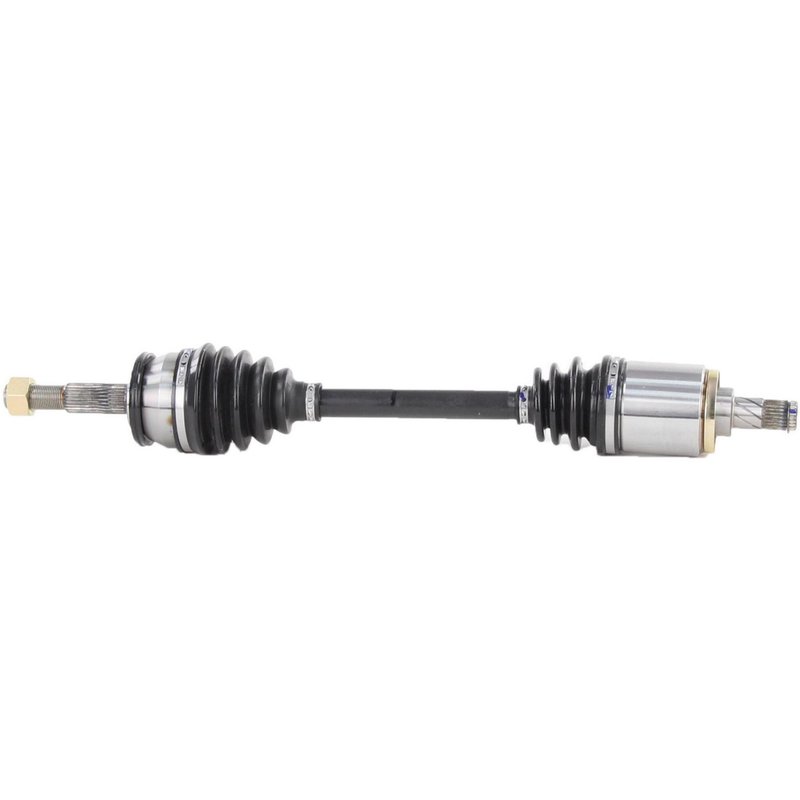

TrakMotive NI-8037 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft NI-8037

The TrakMotive CV Axle Shaft NI-8037 is engineered for reliable driveline performance in Nissan vehicles. Designed specifically for Nissan Pulsar NX and Sentra models, this new CV axle shaft ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Nissan Pulsar NX and Sentra models
• Includes axle nut with cotter pin locking mechanism
• Neoprene boot material for enhanced joint protection
• Hex head axle nut measuring 1 1/4 inch (31.6 mm)
• Overall compressed length of 24.76 inches (629 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to meet or exceed OEM specifications. This line emphasizes precise engineering, including accurate spline counts and secure shaft connection styles, to ensure proper driveline function and vehicle safety. The NI-8037 model features a male inboard joint with 24 splines and a conventional outboard joint with 25 splines, reflecting the line's attention to fitment accuracy and durability.

Technical Specifications and Features

The NI-8037 CV axle shaft is a new component featuring a neoprene boot that provides resistance to wear and environmental damage. The inboard joint is a male type with 24 splines, while the outboard joint is conventional with 25 splines, ensuring compatibility with the Nissan Pulsar NX and Sentra driveline systems. The included axle nut is a hex head type, measuring 1 1/4 inch (31.6 mm) across flats, with a height of 5/7 inch (17.8 mm) and a length of 2 1/7 inches (54.7 mm). It uses an M22 x 1.5 thread size and secures with a cotter pin locking mechanism for added safety. The overall compressed length of the axle shaft is 24.76 inches (629 mm), matching OEM dimensions for proper installation and operation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Nissan Pulsar NX and Sentra
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity with durable neoprene material
• Restores secure wheel attachment with included axle nut and cotter pin locking

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft NI-8037, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the spline engagement on both inboard and outboard joints for proper fitment. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct replacement on compatible Nissan Pulsar NX and Sentra models, facilitating straightforward installation without modification.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft NI-8037 is a new, OEM-quality replacement part manufactured to meet strict industry standards. It includes a high-grade neoprene boot and a securely locking axle nut to ensure long-term reliability. While specific warranty details are not provided, TrakMotive products typically adhere to quality control processes that support dependable performance in driveline applications.
